Symptom: *VTSS FAILS TO ARM FROM PASSENGER DOOR CYLINDER LOCK SWITCH (EXPORT ONLY): Testing

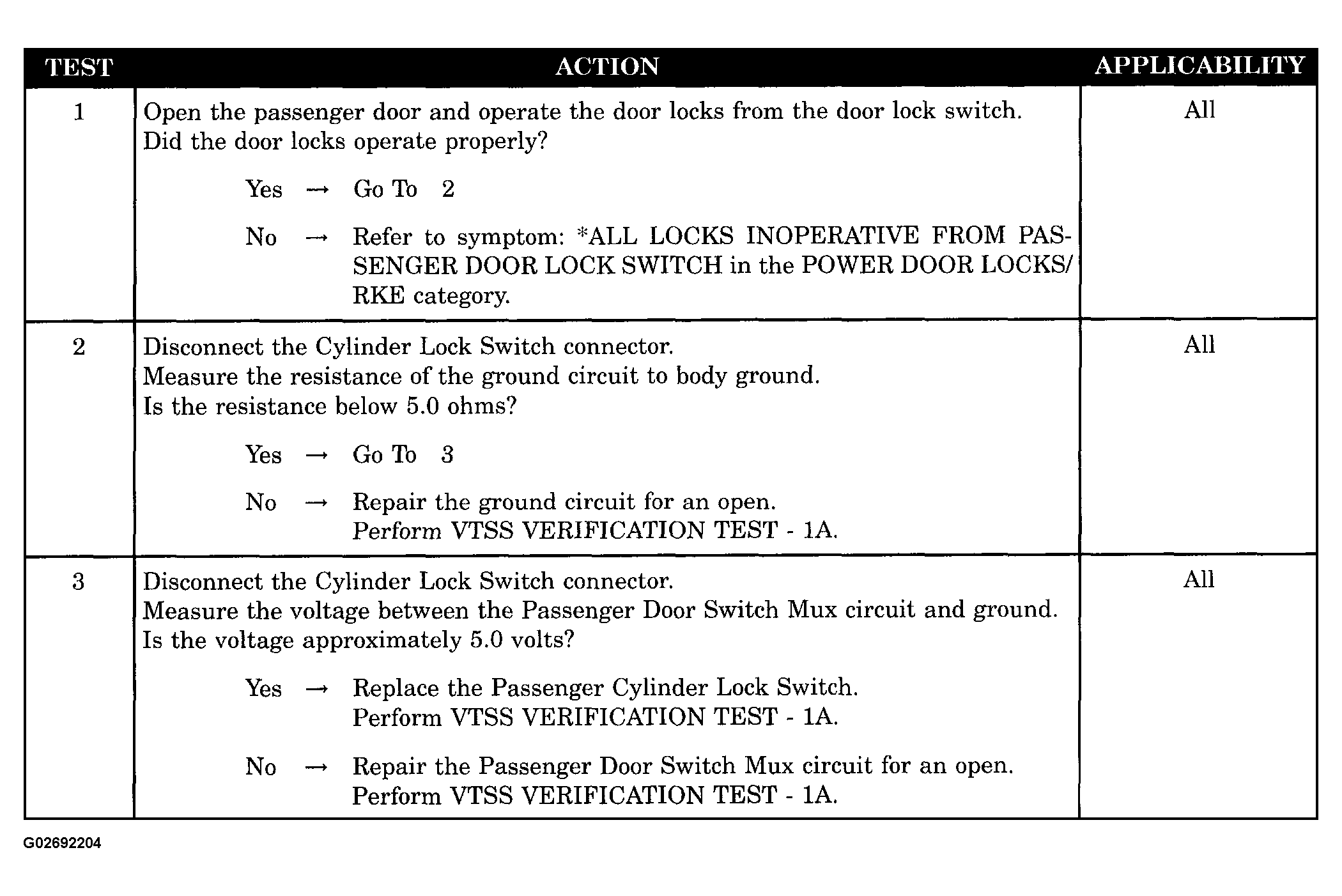

Fig 1: Testing VTSS Fails To Arm From Passenger Door Cylinder Lock Switch (Export Only)
G02692204Courtesy of DAIMLERCHRYSLER CORP.
