Symptom: *OPEN PASSENGER DOOR FAILS TO TRIP ALARM: Testing

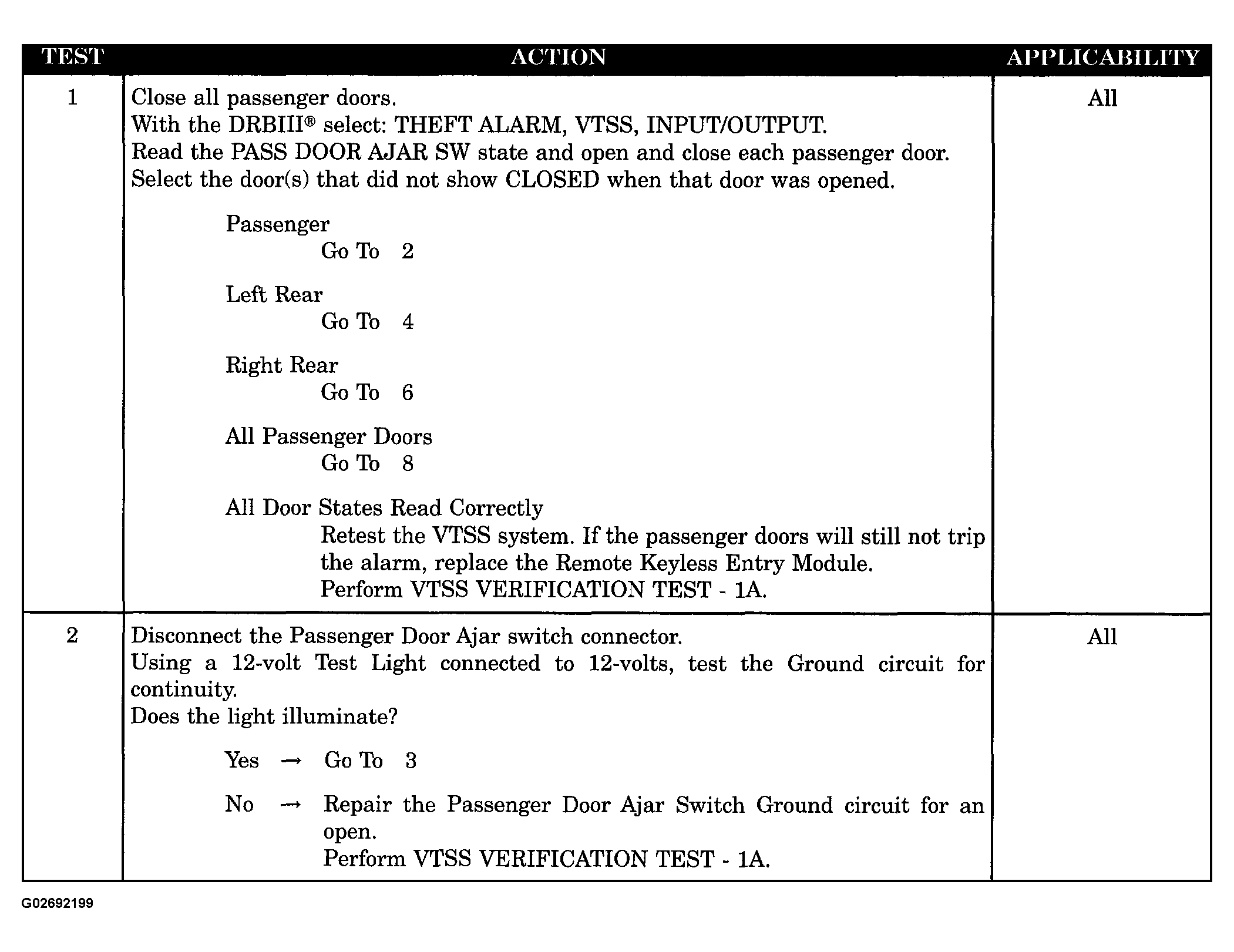

Fig 1: Testing Open Passenger Door Fails To Trip Alarm (1 Of 3)
G02692199Courtesy of DAIMLERCHRYSLER CORP.

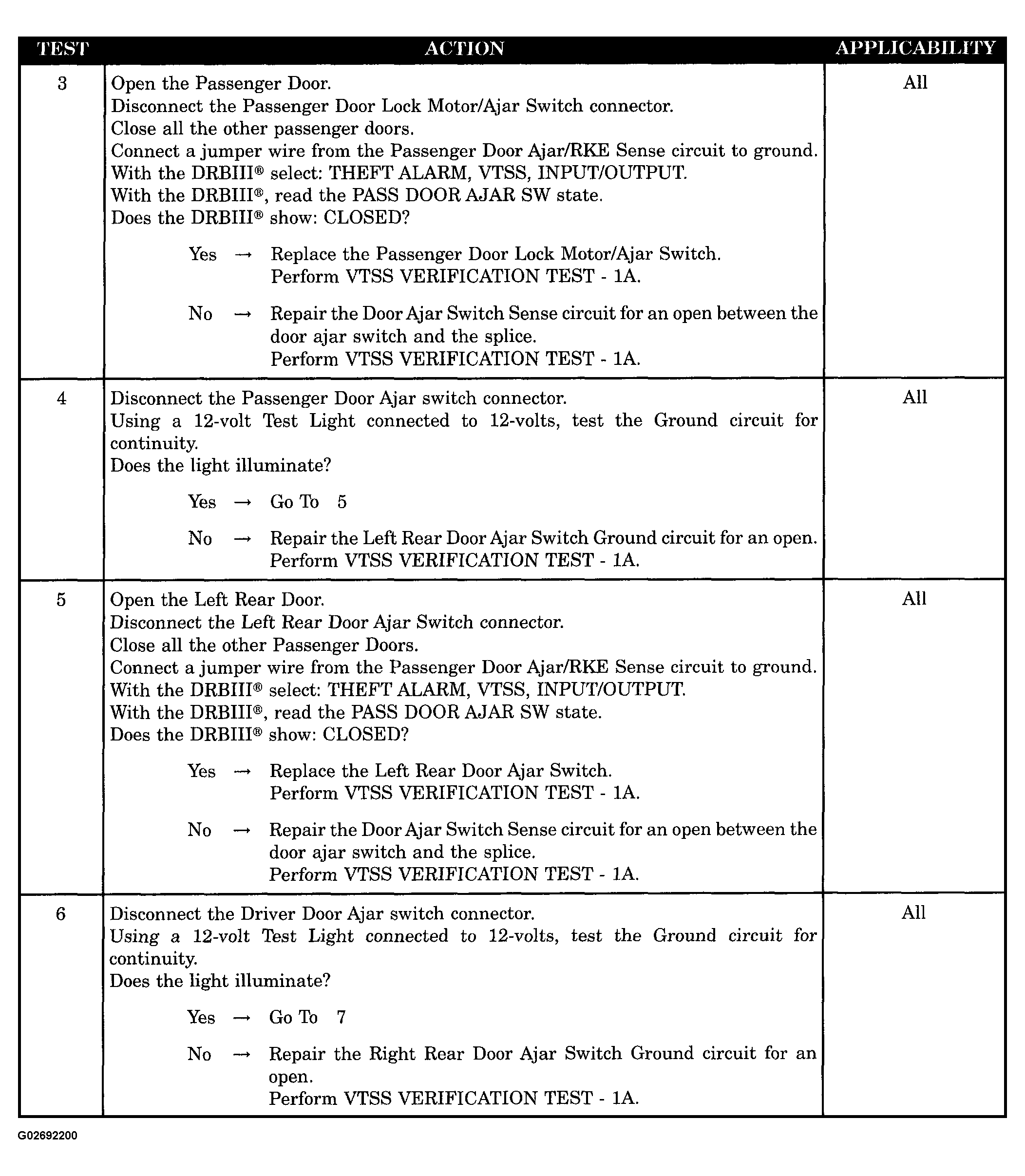

Fig 2: Testing Open Passenger Door Fails To Trip Alarm (2 Of 3)
G02692200Courtesy of DAIMLERCHRYSLER CORP.

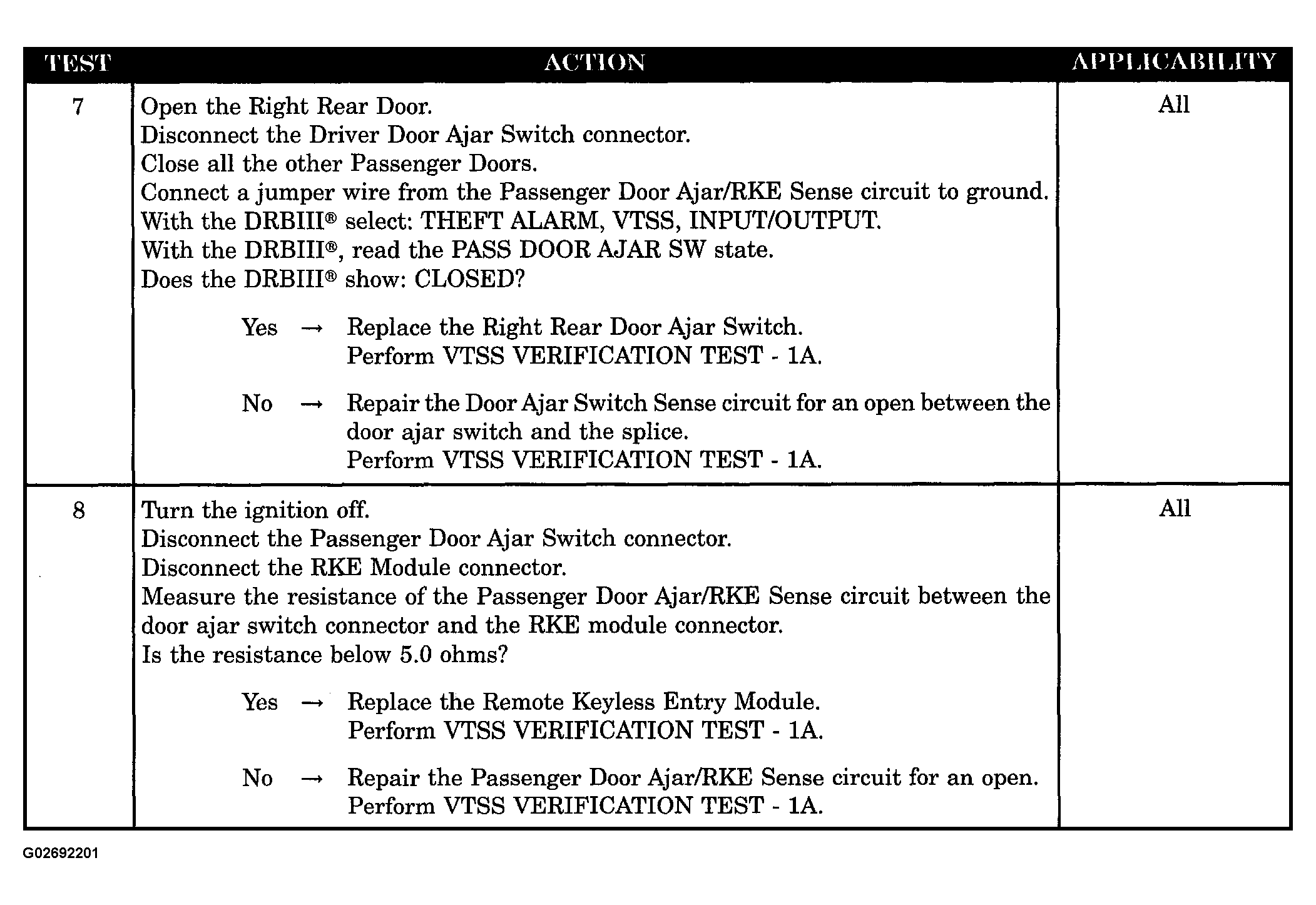

Fig 3: Testing: Open Passenger Door Fails To Trip Alarm (3 Of 3)
G02692201Courtesy of DAIMLERCHRYSLER CORP.
