Symptom: *OPEN DRIVER DOOR FAILS TO TRIP ALARM: Testing

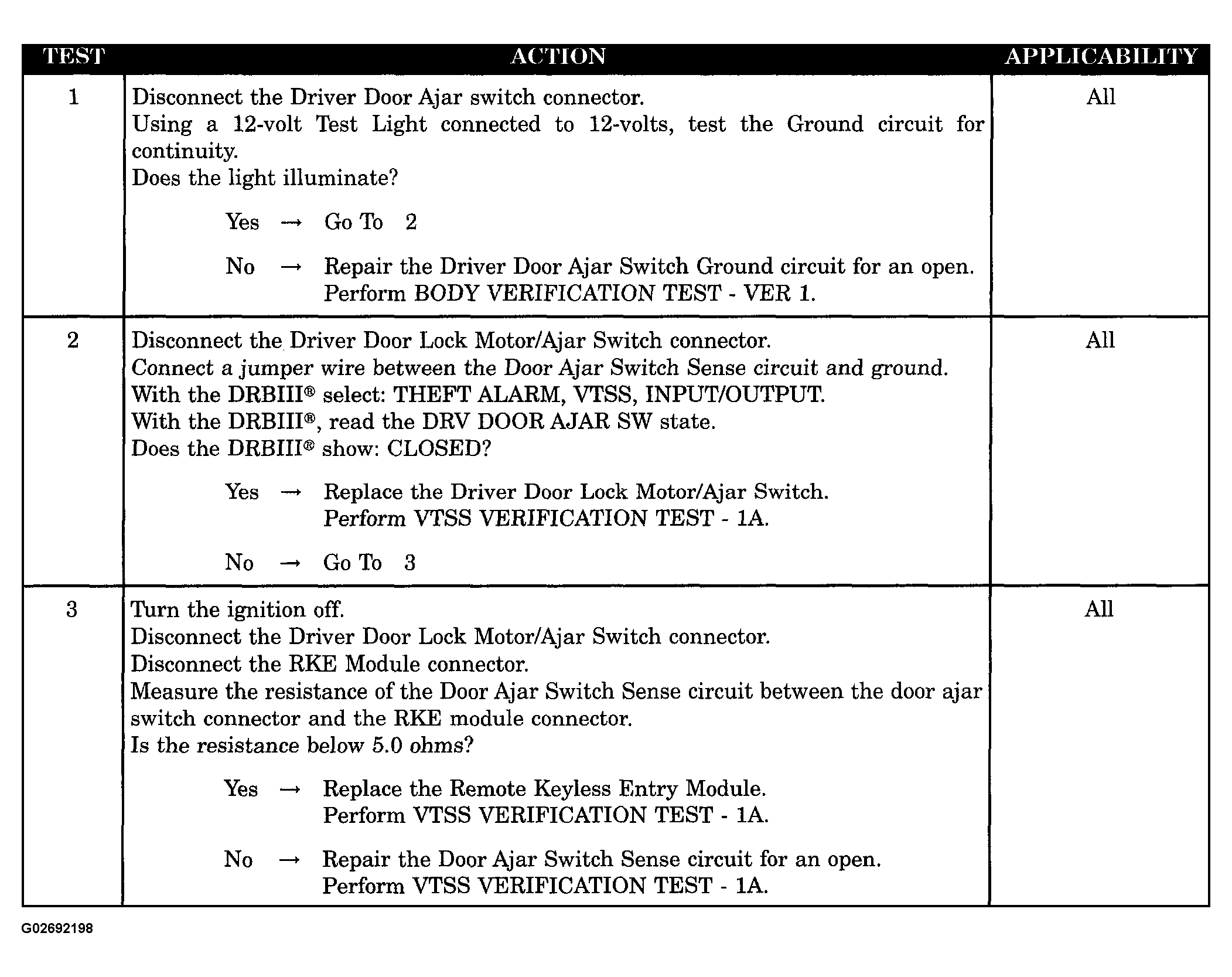

Fig 1: Testing Open Driver Door Fails To Trip Alarm

G02692198

Courtesy of DAIMLERCHRYSLER CORP.
