Symptom: *INTRUSION SENSOR FAILS TO TRIP VTSS (EXPORT ONLY): Testing

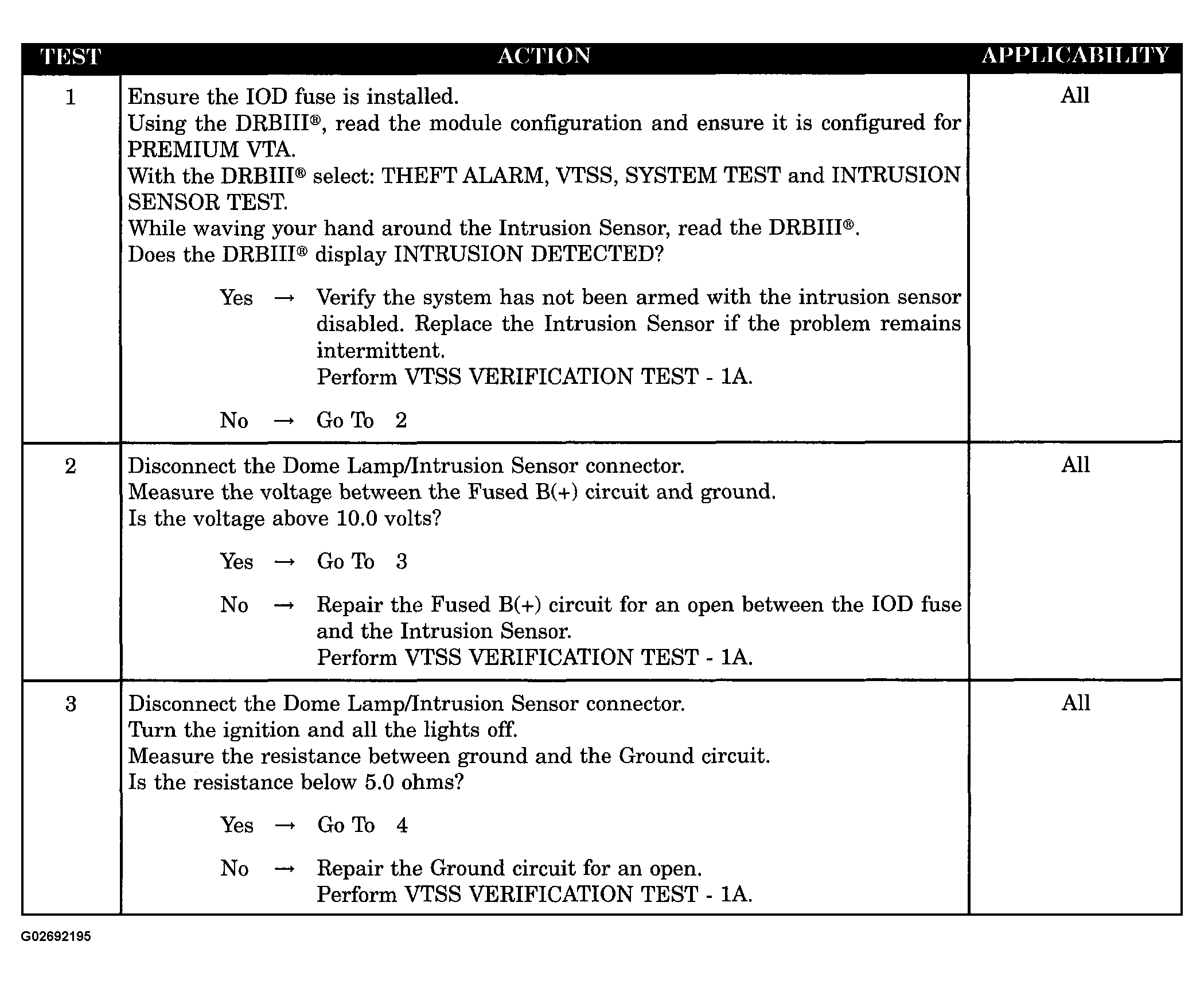

Fig 1: Testing: Intrusion Sensor Fails To Trip VTSS-Export Only (1 Of 2)
G02692195Courtesy of DAIMLERCHRYSLER CORP.

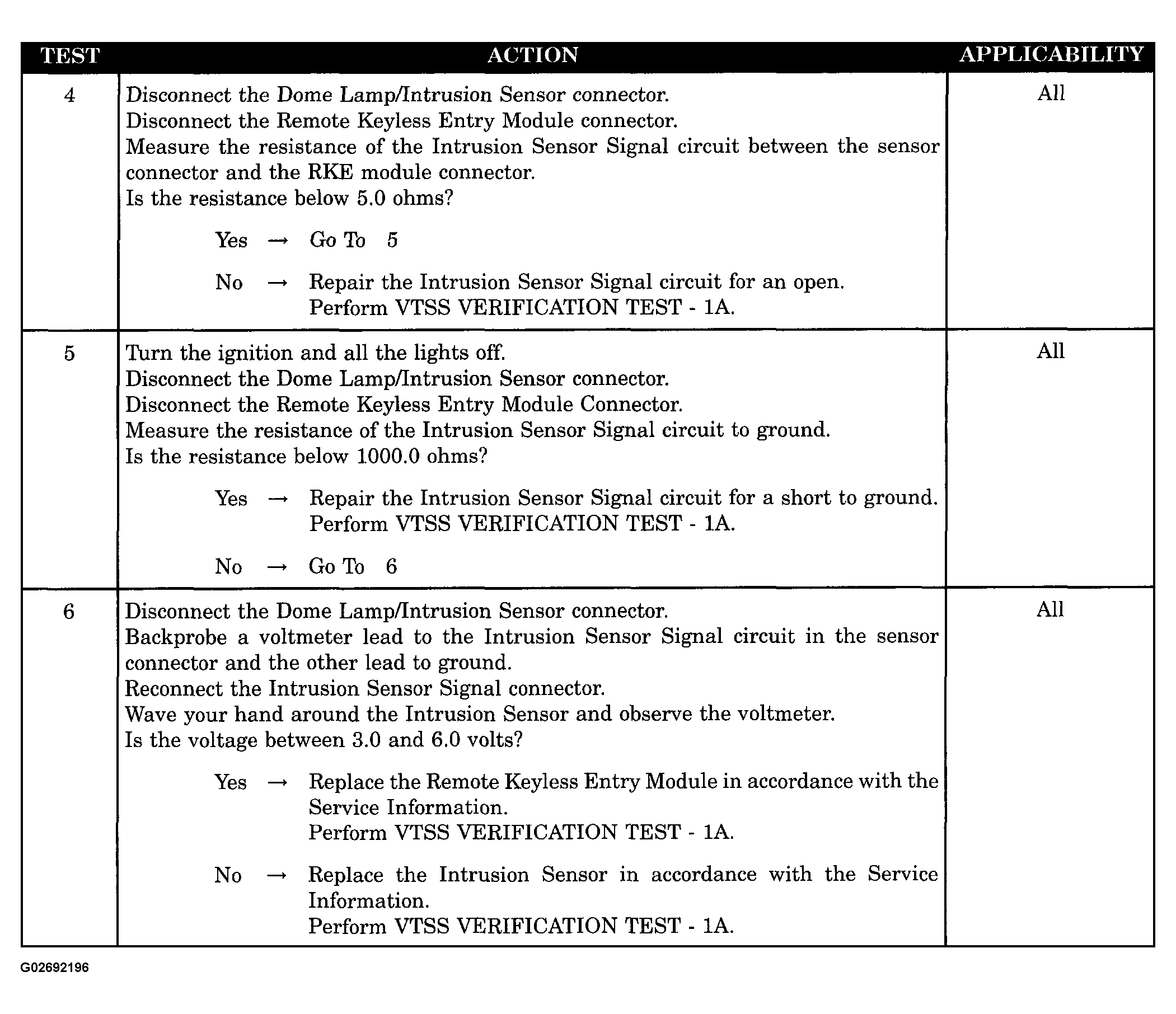

Fig 2: Testing Intrusion Sensor Fails To Trip VTSS-Export Only (2 Of 2)
G02692196Courtesy of DAIMLERCHRYSLER CORP.
