Symptom: PASSENGER DOOR SWITCH FAILURE: Testing

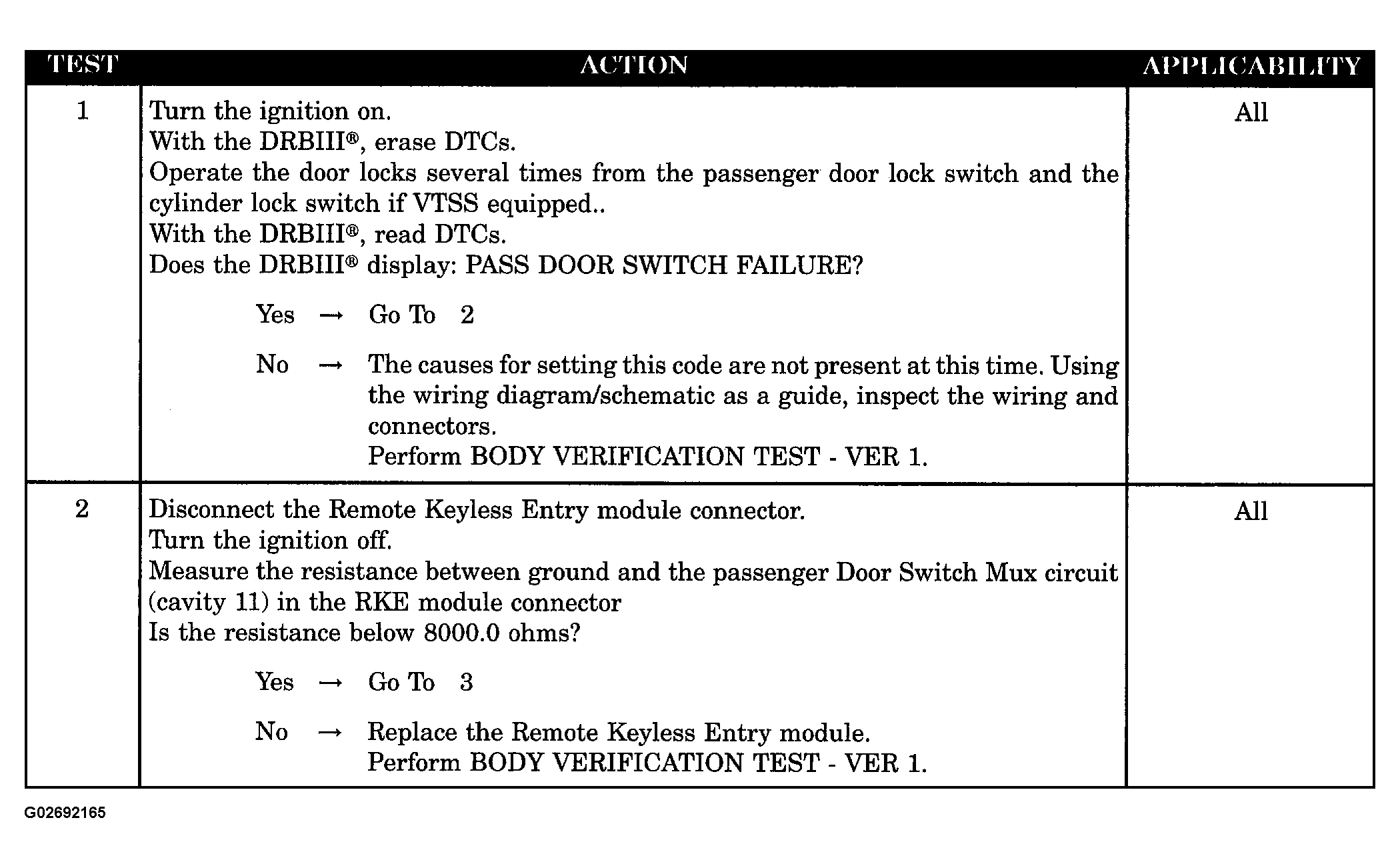

Fig 1: Testing Passenger Door Switch Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

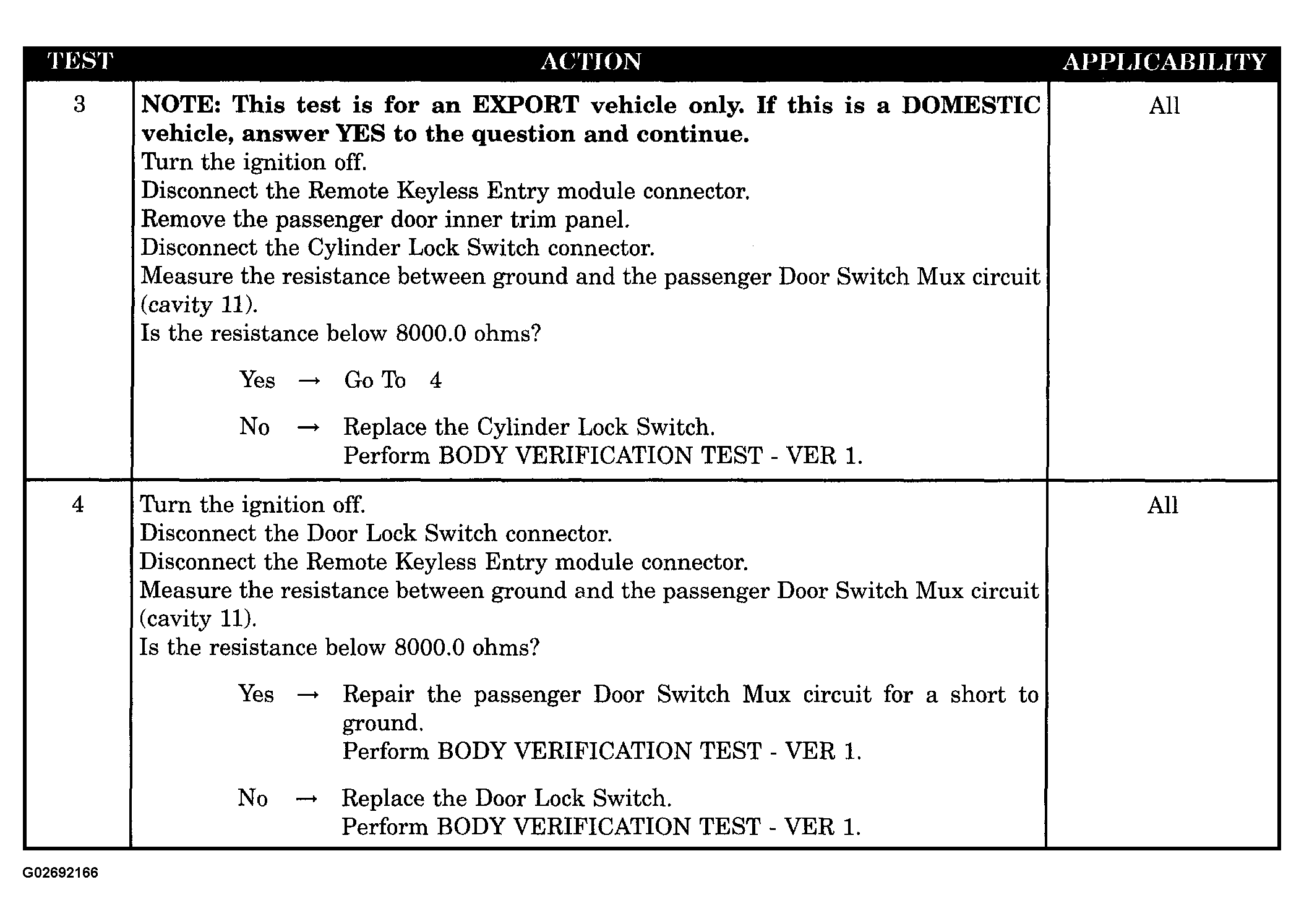

Fig 2: Testing Passenger Door Switch Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
