Symptom: INTERIOR DECKLID RELEASE SWITCH SHORTED OR STUCK: Testing

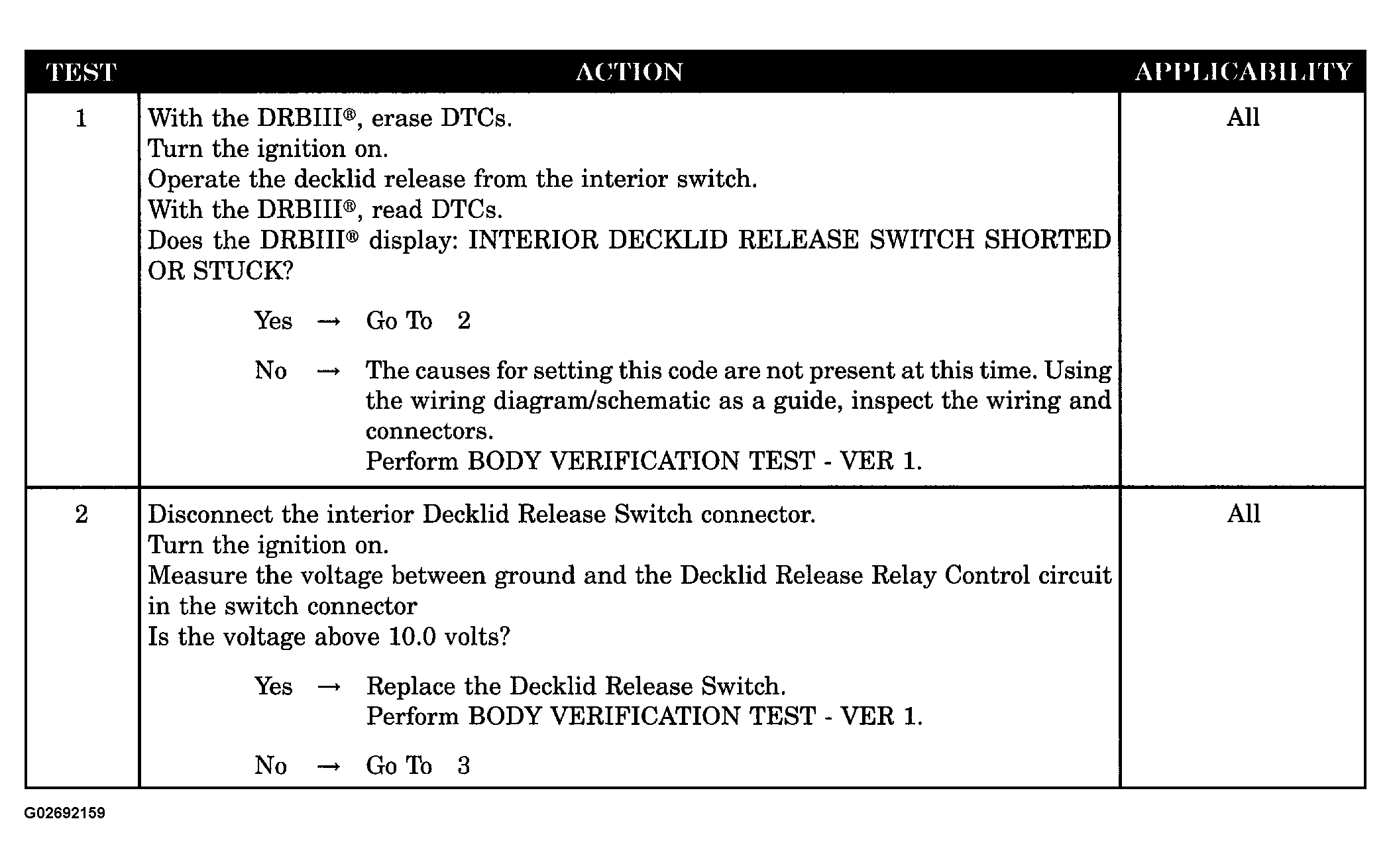

Fig 1: Testing Interior Decklid Release Switch Shorted Or Stuck (1 Of 2)
G02692159Courtesy of DAIMLERCHRYSLER CORP.

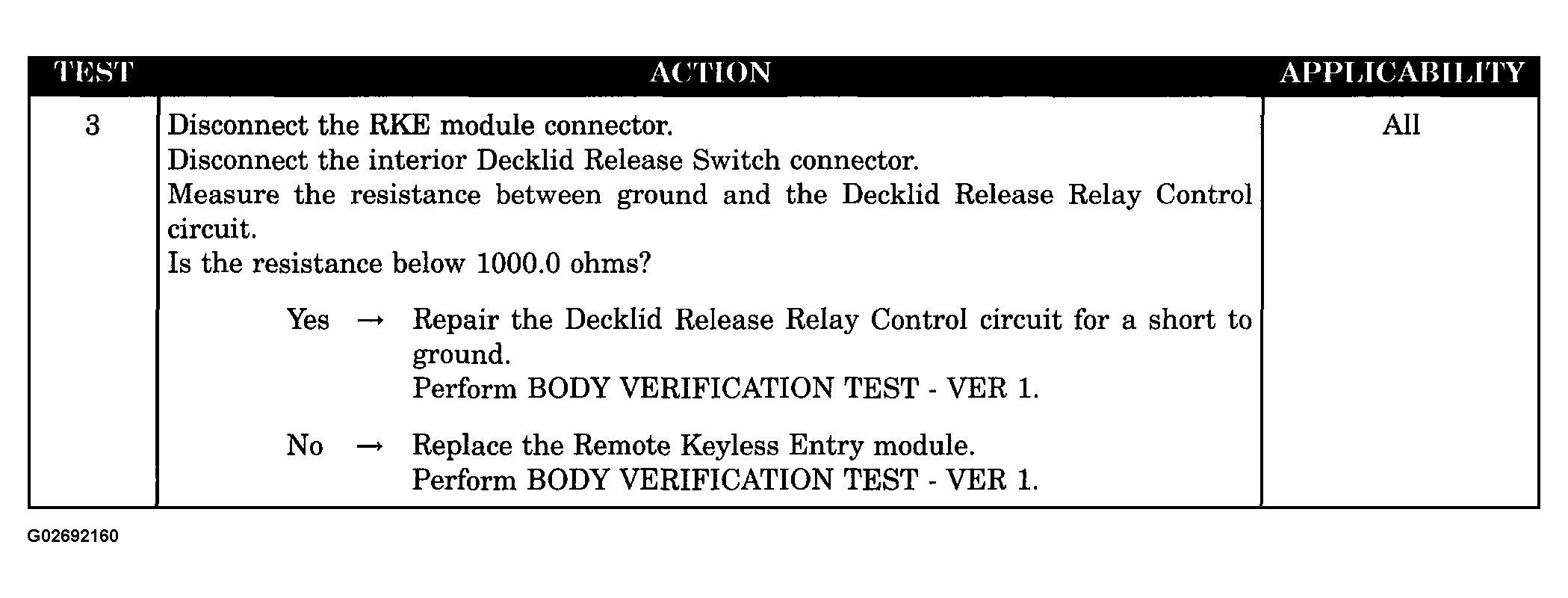

Fig 2: Testing Interior Decklid Release Switch Shorted Or Stuck (2 Of 2)
G02692160Courtesy of DAIMLERCHRYSLER CORP.
