Symptom: DRIVER DOOR SWITCH SHORTED OR STUCK: Testing

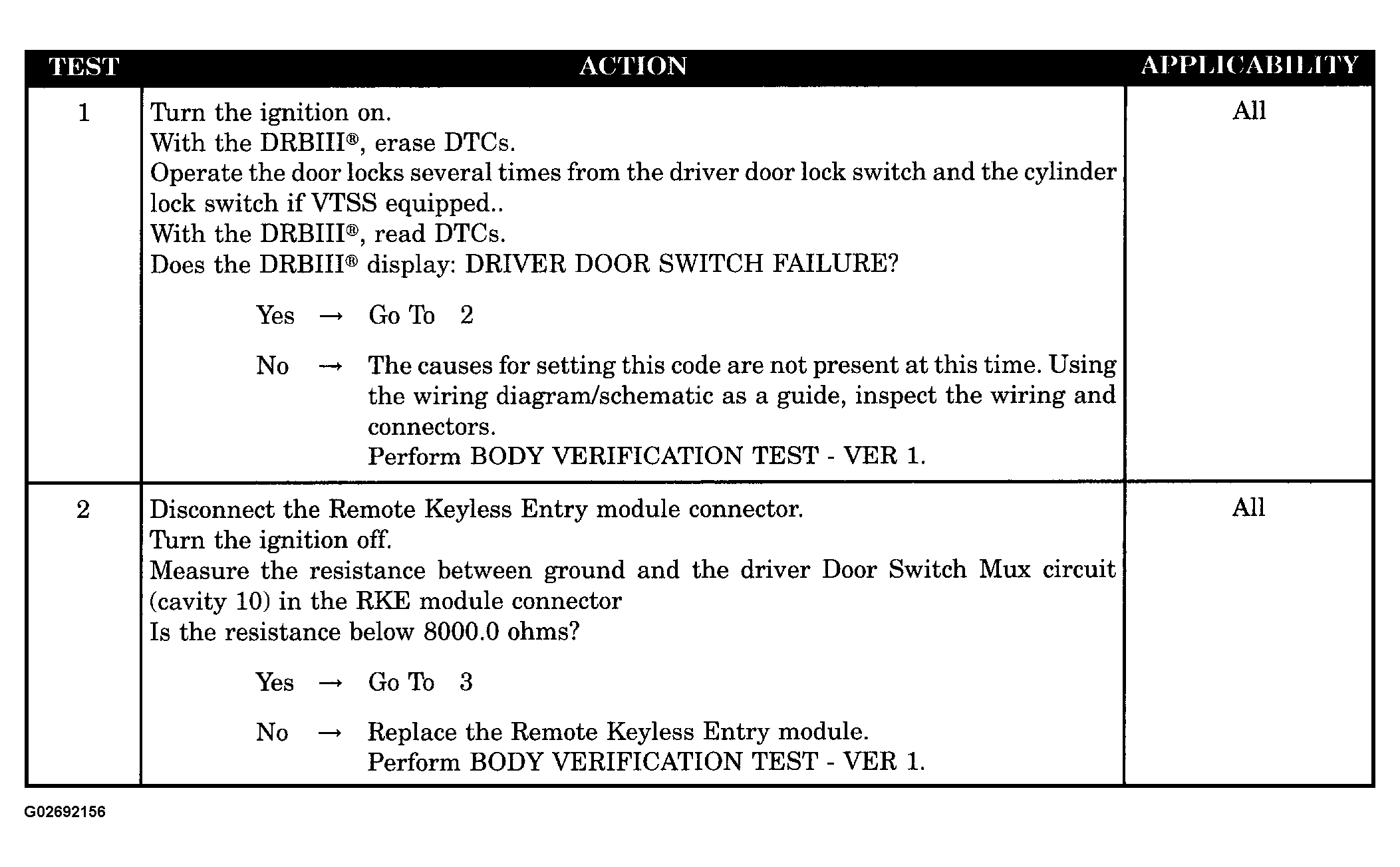

Fig 1: Testing Driver Door Switch Shorted Or Stuck (1 of 2)
G02692156Courtesy of DAIMLERCHRYSLER CORP.

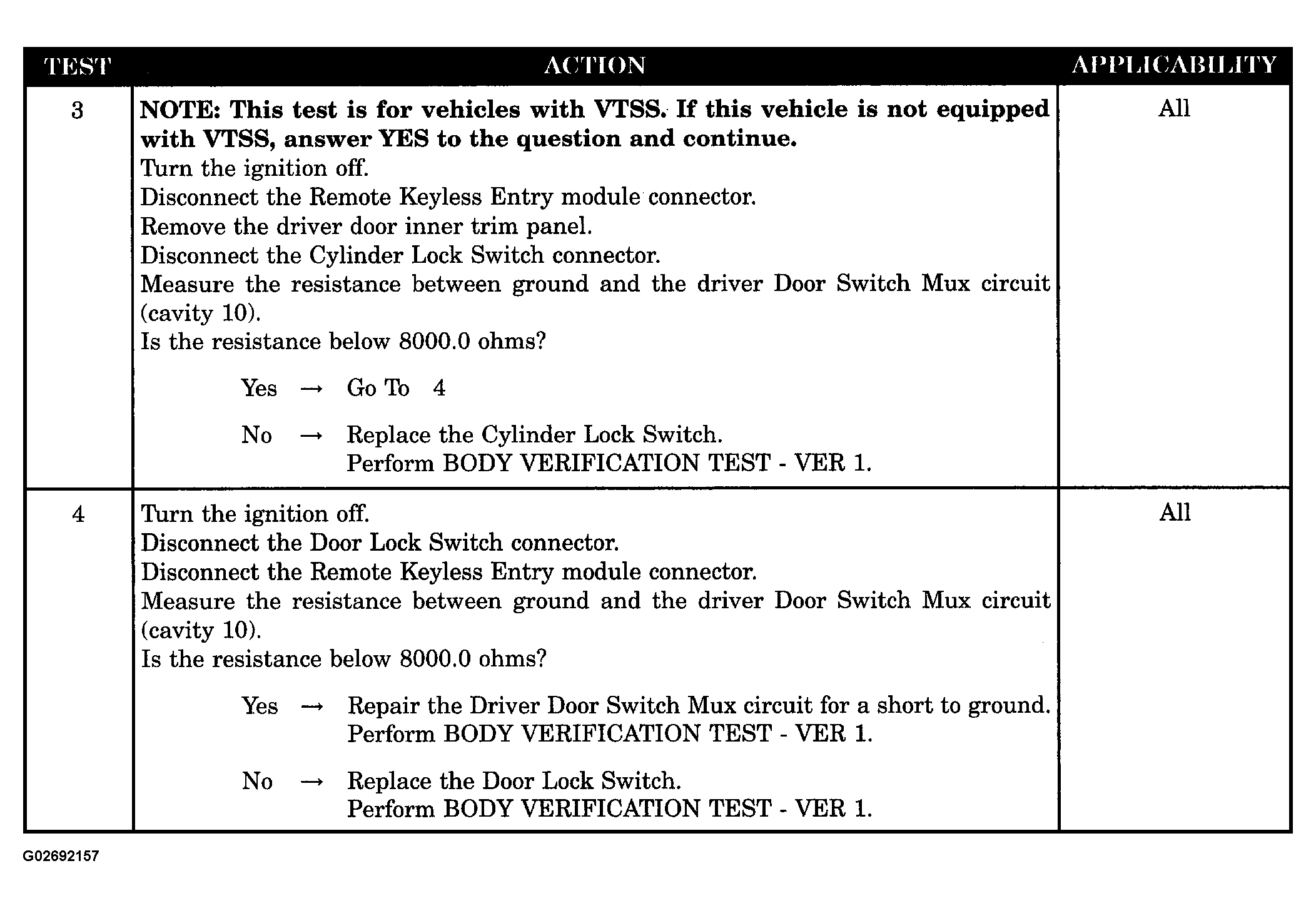

Fig 2: Testing Driver Door Switch Shorted Or Stuck (2 of 2)
G02692157Courtesy of DAIMLERCHRYSLER CORP.
