Symptom: *RKE INOPERATIVE: Testing

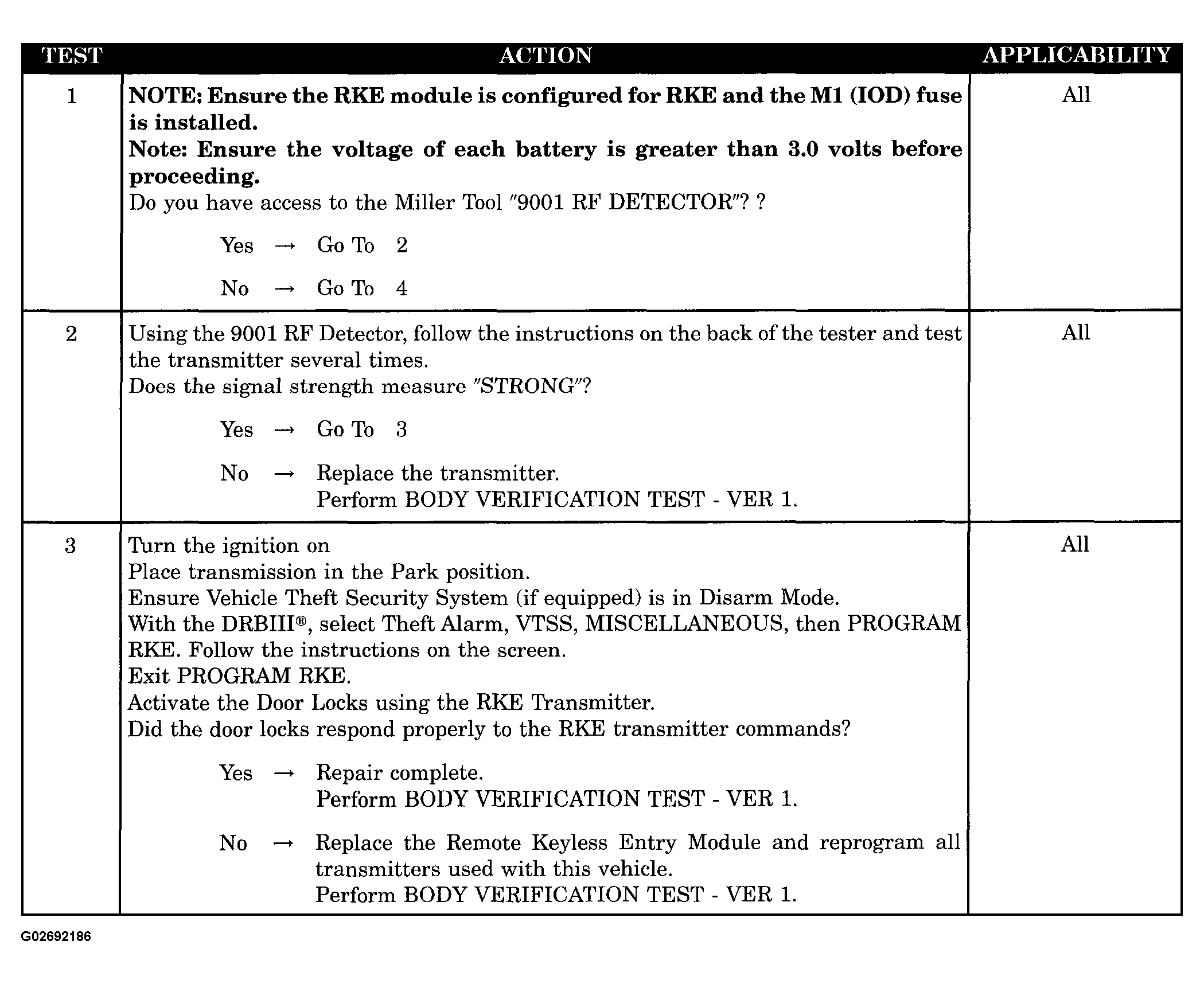

Fig 1: Testing RKE Inoperative (1 Of 2)

G02692186

Courtesy of DAIMLERCHRYSLER CORP.

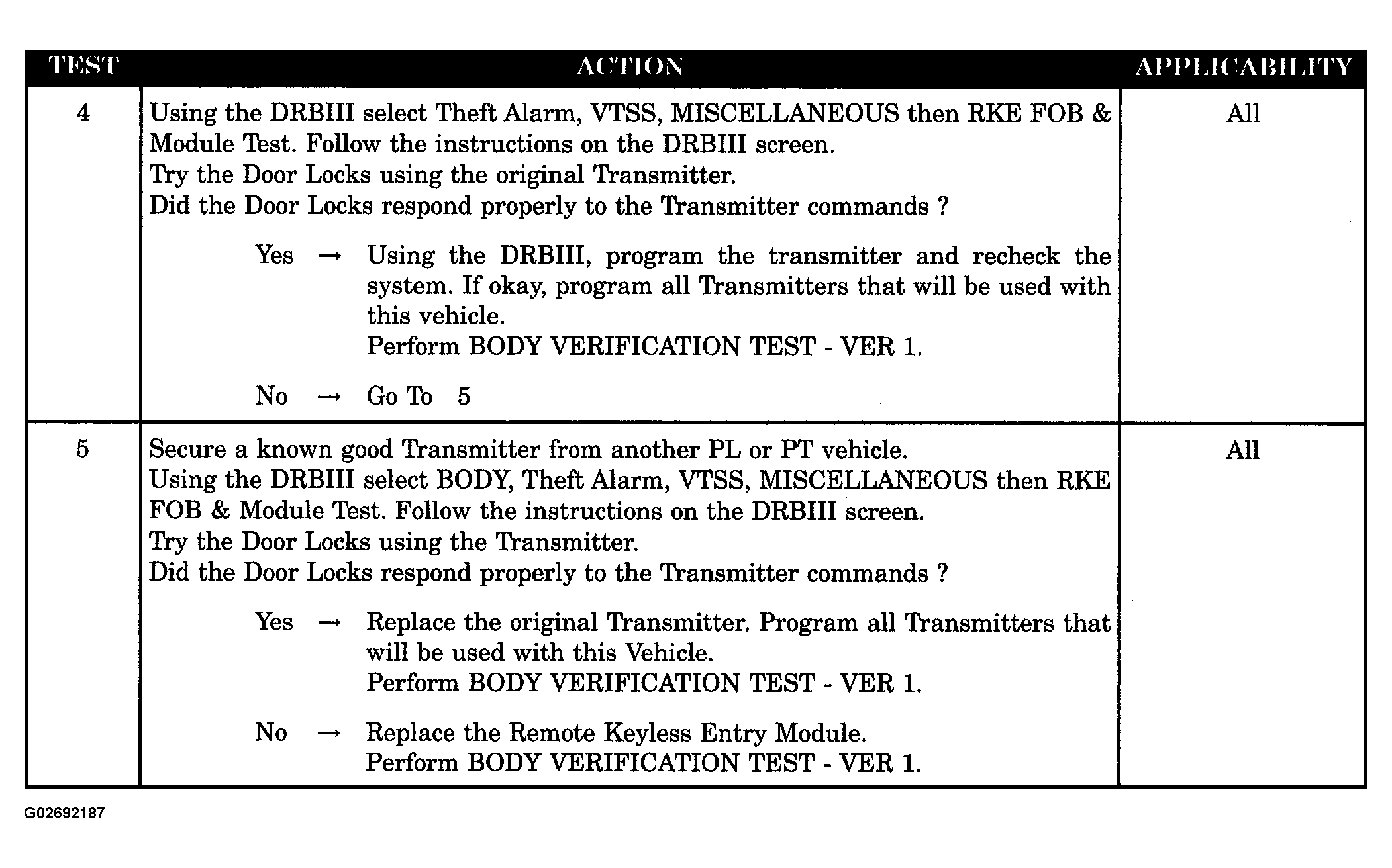

Fig 2: Testing RKE Inoperative (2 Of 2)

G02692187

Courtesy of DAIMLERCHRYSLER CORP.
