Symptom: *ONE PASSENGER DOOR FAILS TO LOCK & UNLOCK: Testing

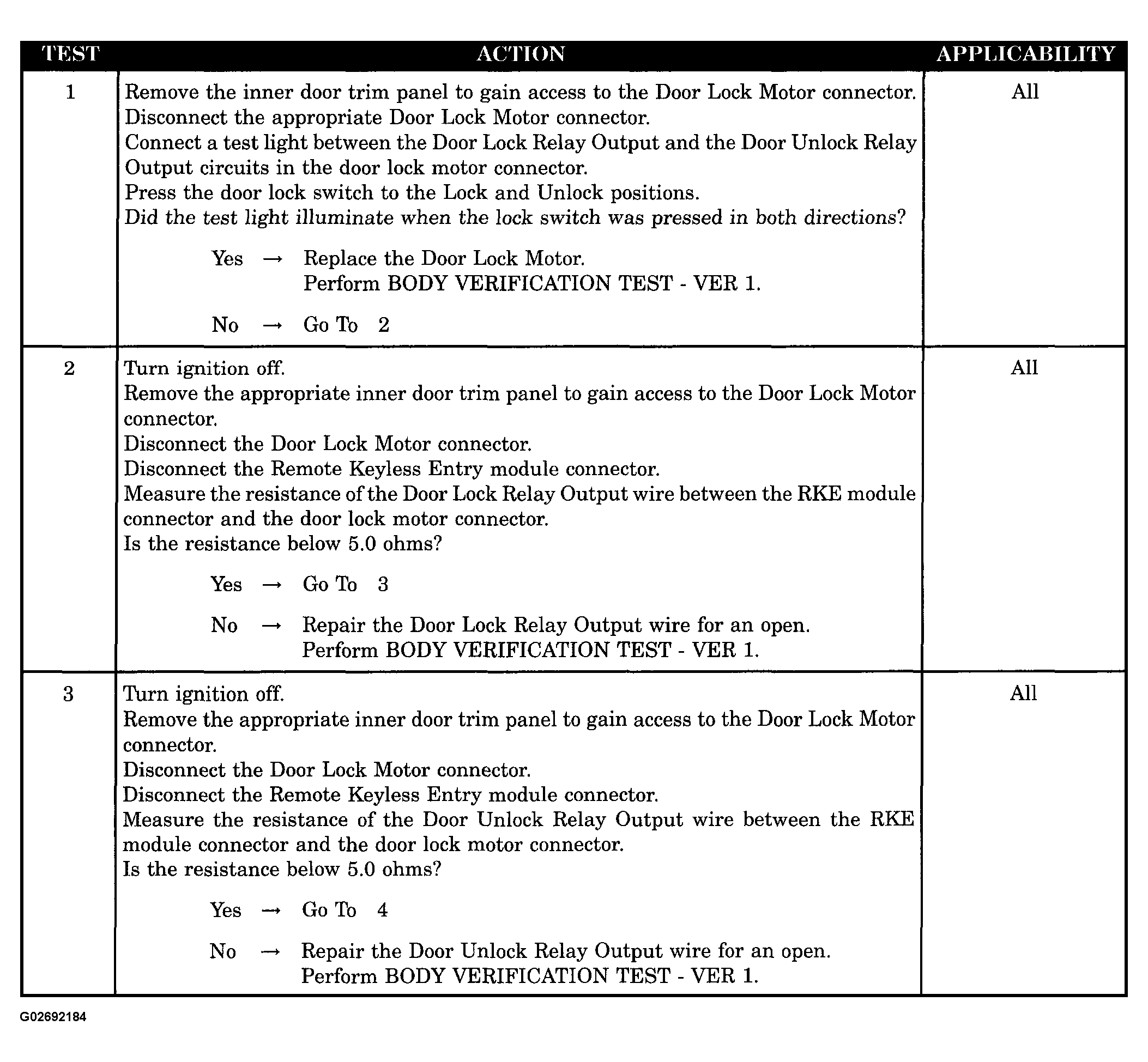

Fig 1: Testing One Passenger Door Fails To Lock & Unlock (1 Of 2)
G02692184Courtesy of DAIMLERCHRYSLER CORP.

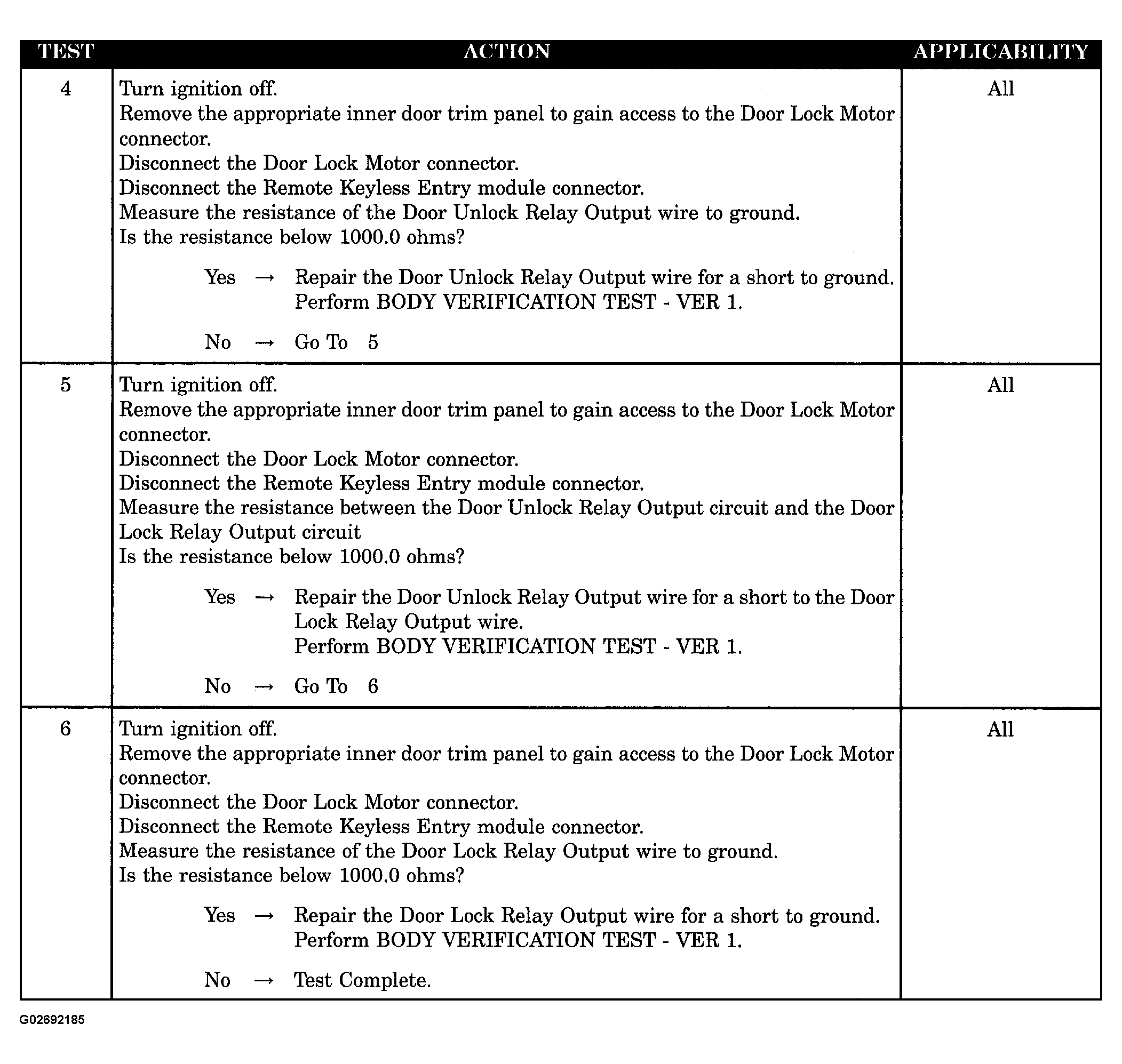

Fig 2: Testing One Passenger Door Fails To Lock & Unlock (2 Of 2)
G02692185Courtesy of DAIMLERCHRYSLER CORP.
