Symptom: *DRIVER DOOR FAILS TO LOCK & UNLOCK: Testing

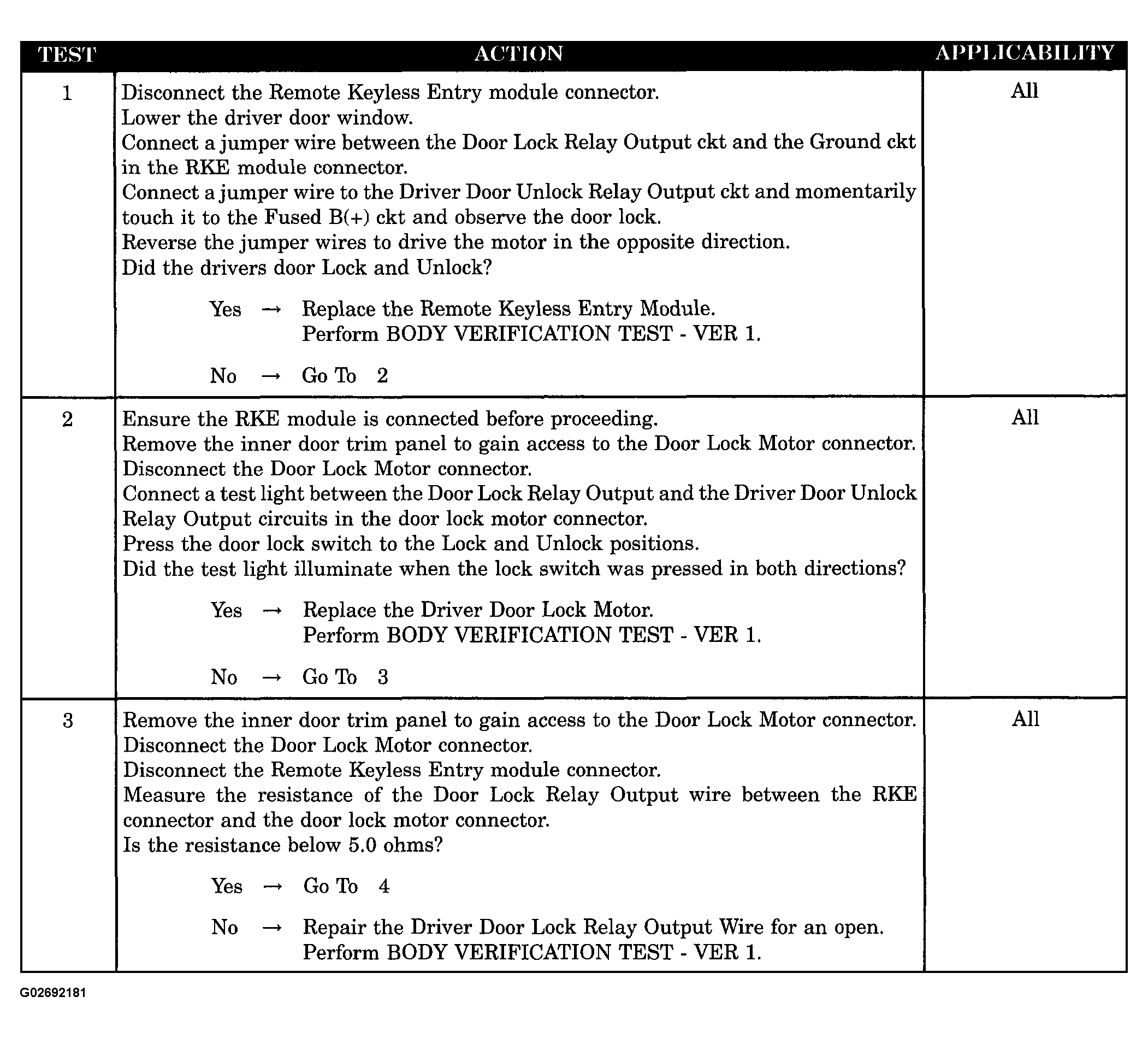

Fig 1: Testing Driver Door Fails To Lock & Unlock (1 Of 2)
G02692181Courtesy of DAIMLERCHRYSLER CORP.

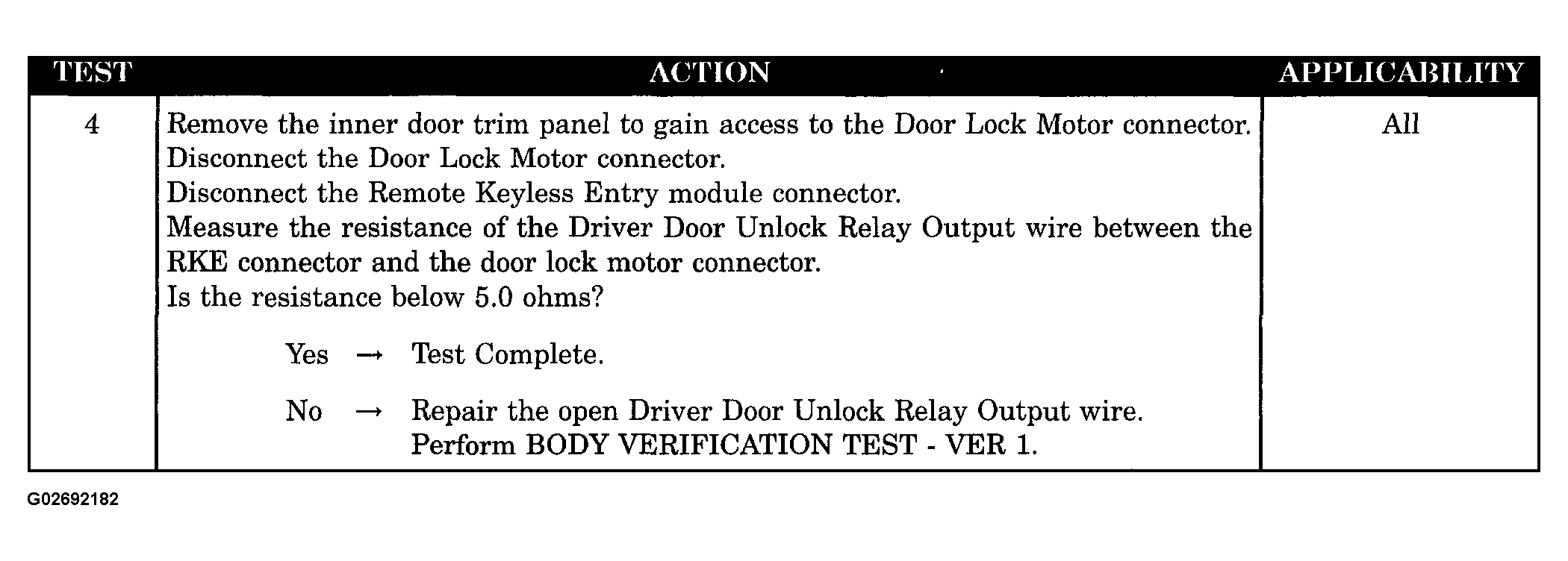

Fig 2: Testing Driver Door Fails To Lock & Unlock (2 Of 2)
G02692182Courtesy of DAIMLERCHRYSLER CORP.
