Symptom: *DOORS LOCKABLE WITH KEY IN IGNITION & DRIVER DOOR OPEN: Testing

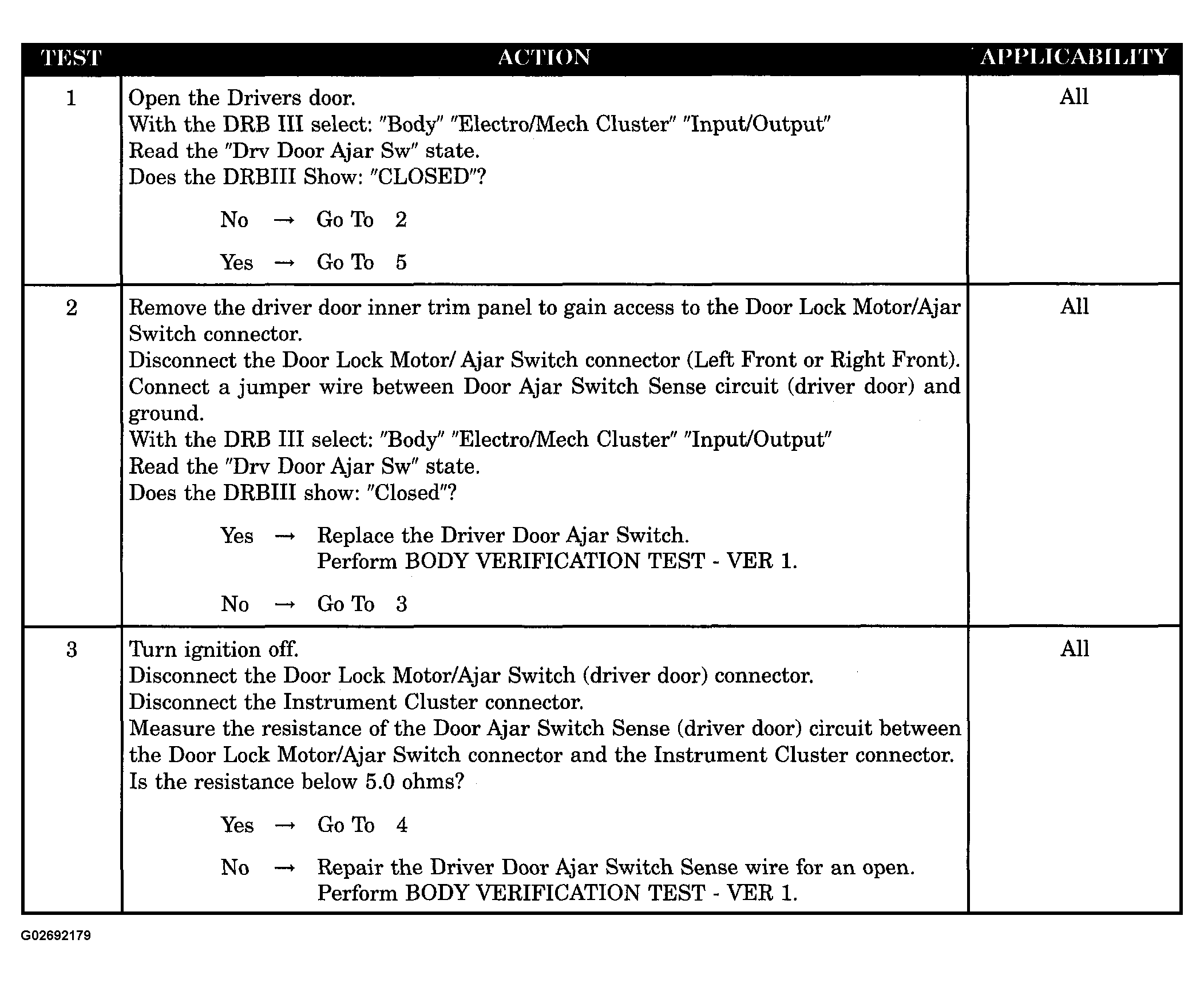

Fig 1: Testing Doors Lockable With Key In Ignition & Driver Door Open (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

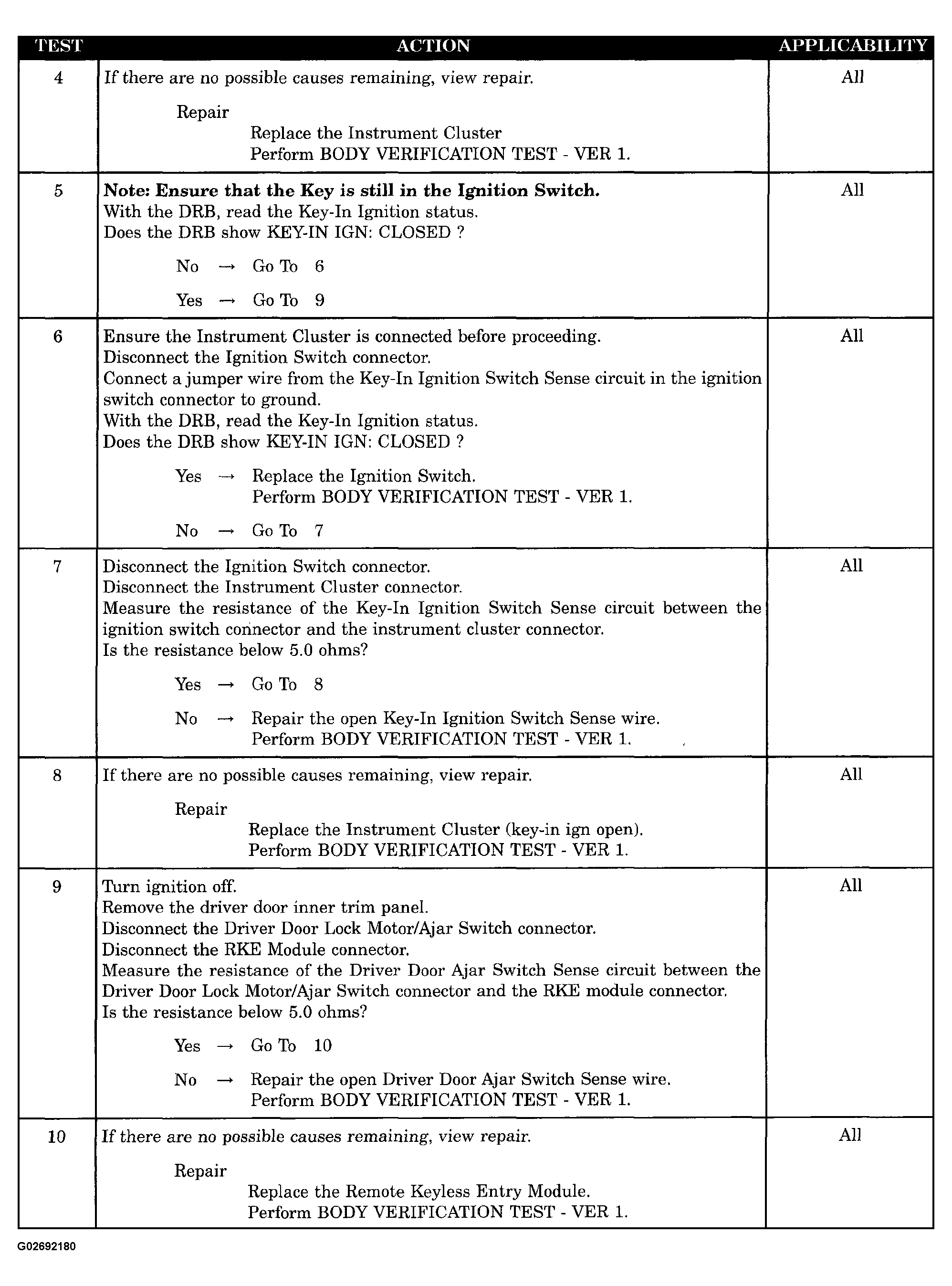

Fig 2: Testing Doors Lockable With Key In Ignition & Driver Door Open (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
