Symptom: *DECKLID SOLENOID INOPERATIVE: Testing

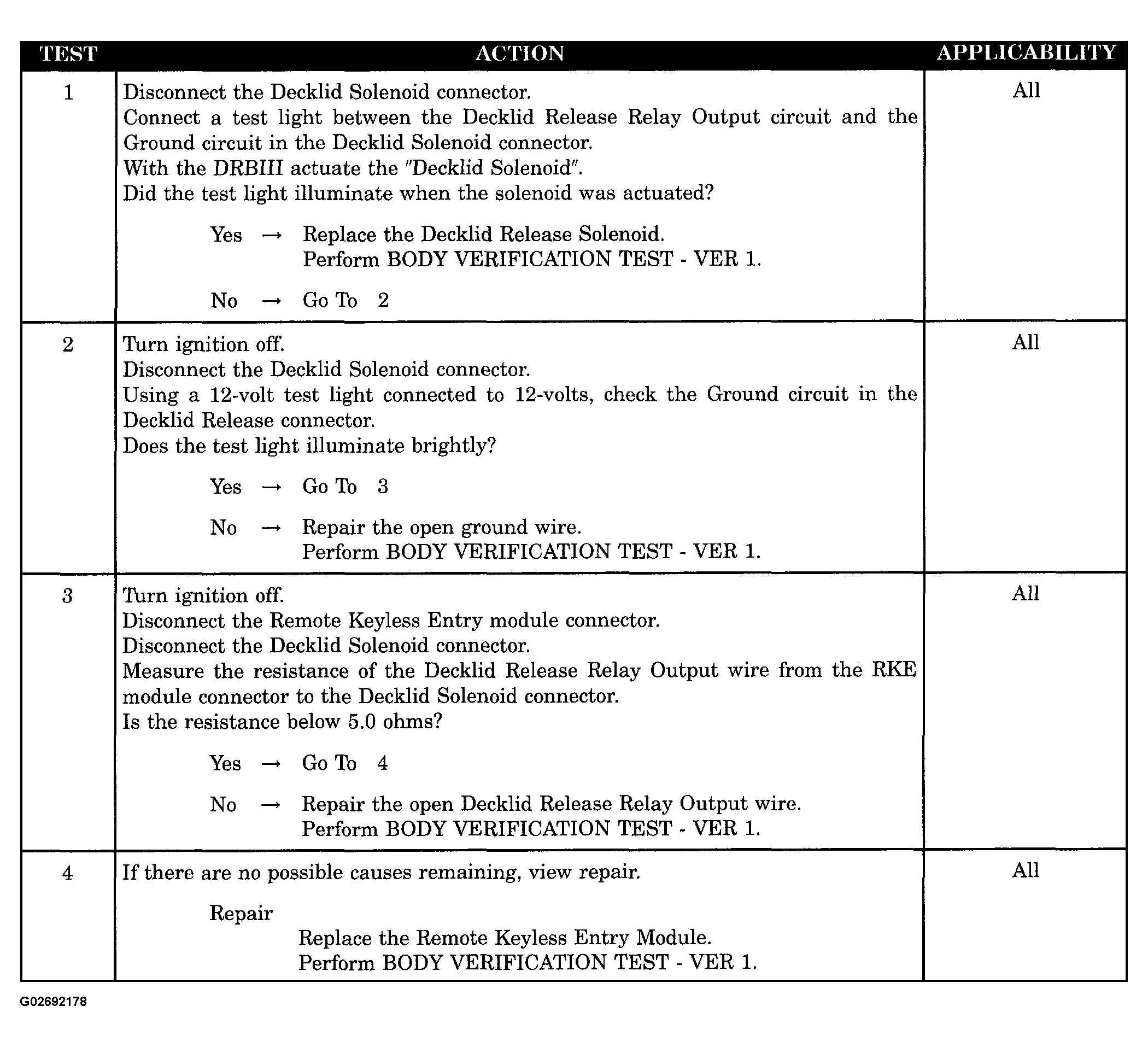

Fig 1: Tests For Symptom: Decklid Solenoid Inoperative

G02692178

Courtesy of DAIMLERCHRYSLER CORP.
