Symptom: *AUTOMATIC DOOR LOCKS INOPERATIVE: Testing

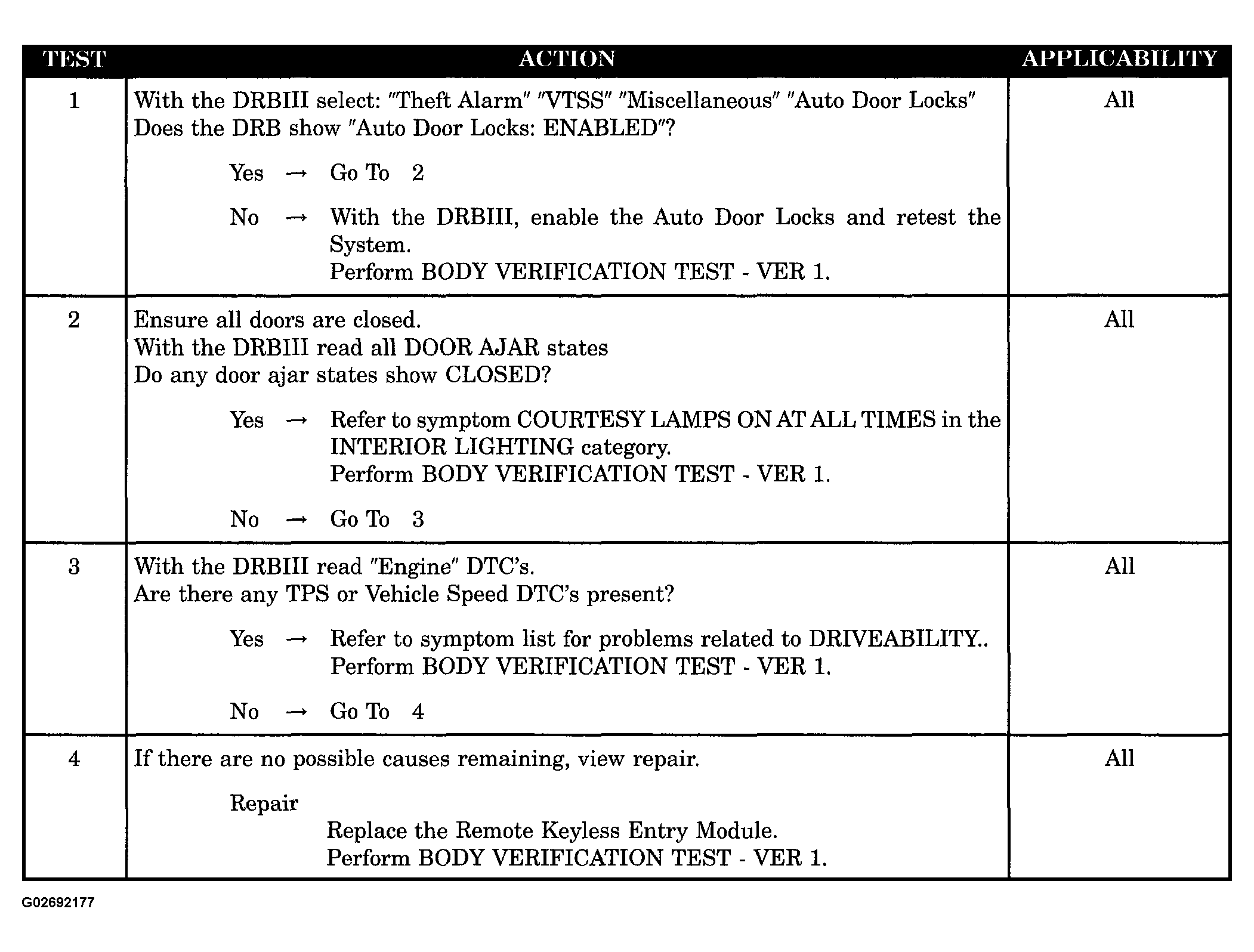

Fig 1: Testing Automatic Door Locks Inoperative

G02692177

Courtesy of DAIMLERCHRYSLER CORP.
