Symptom: *ALL LOCKS INOPERATIVE FROM A DOOR LOCK SWITCH: Testing

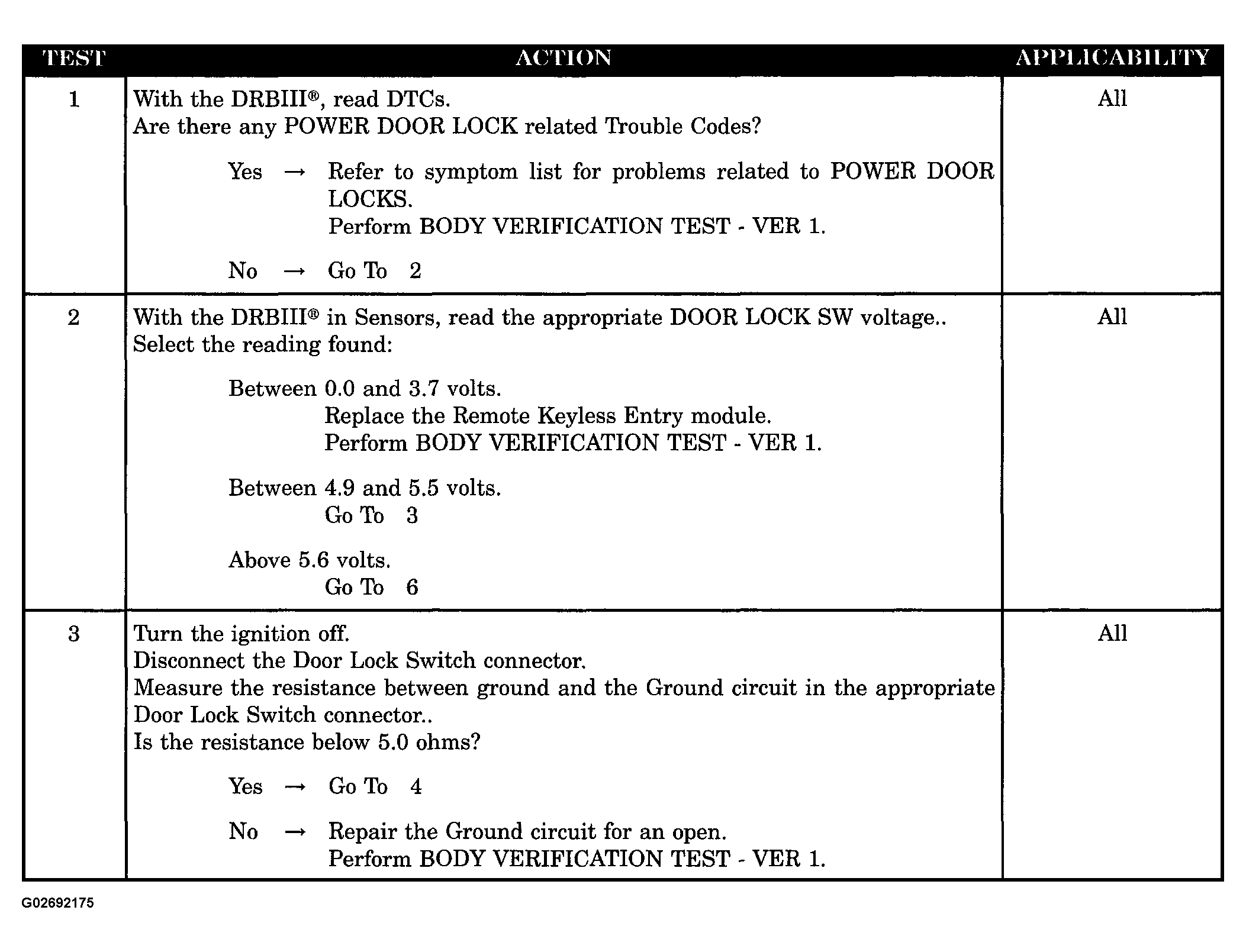

Fig 1: Testing All Locks Inoperative From A Door Lock Switch (1 Of 2)
G02692175Courtesy of DAIMLERCHRYSLER CORP.

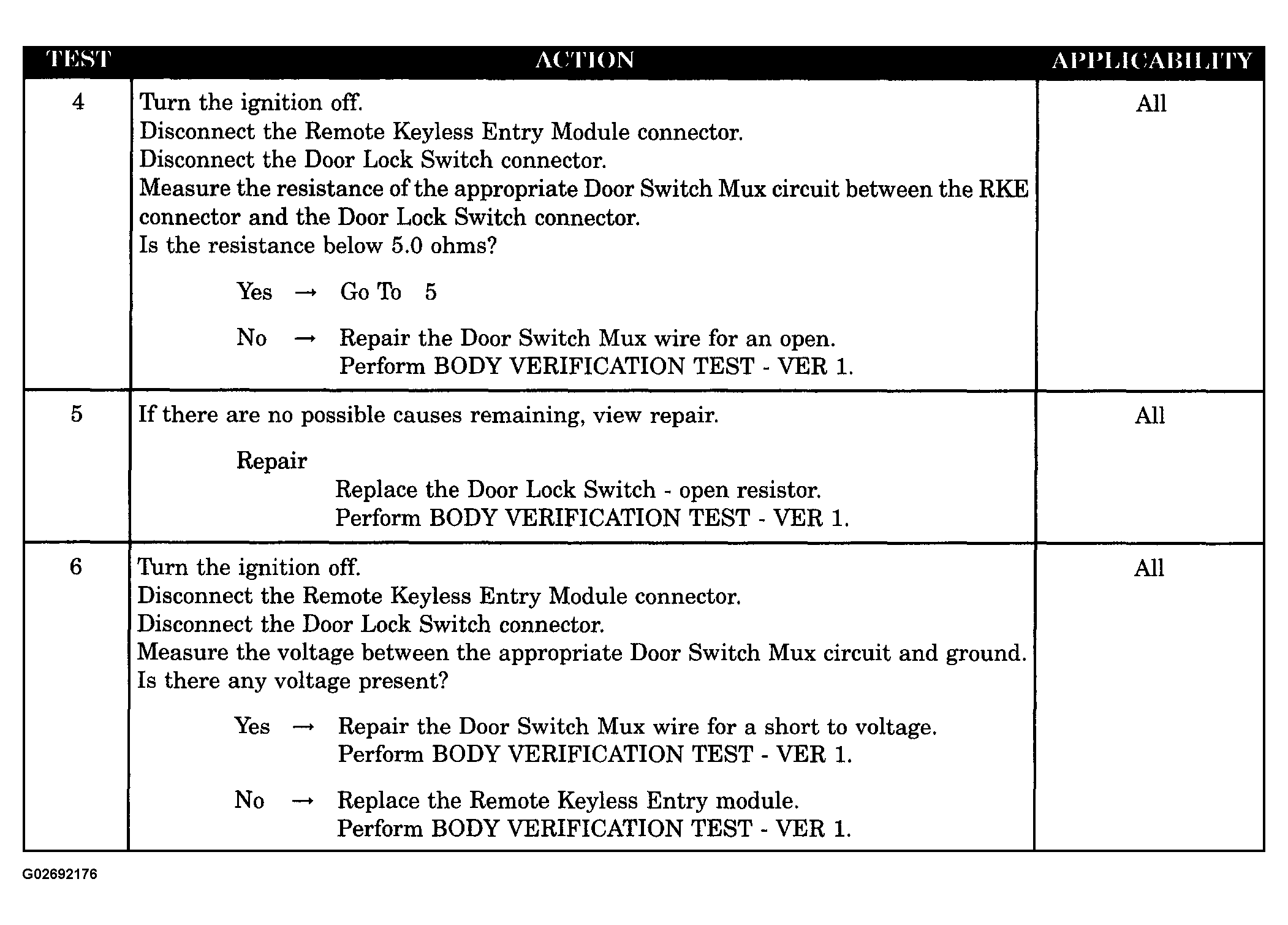

Fig 2: Testing All Locks Inoperative From A Door Lock Switch (2 Of 2)
G02692176Courtesy of DAIMLERCHRYSLER CORP.
