Symptom: *ALL DOORS FAIL TO LOCK: Testing

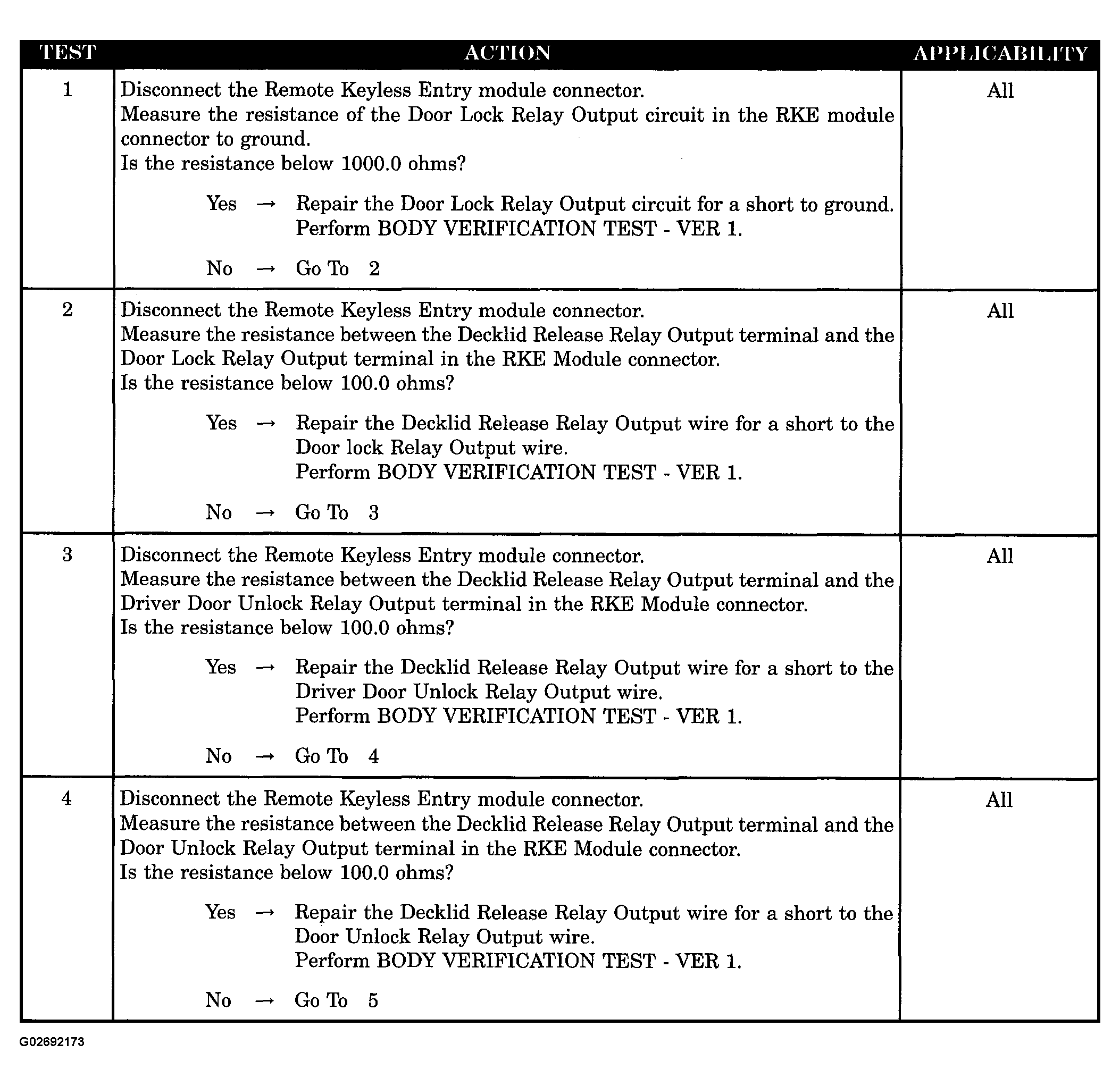

Fig 1: Testing All Doors Fail To Lock (1 Of 2)

G02692173

Courtesy of DAIMLERCHRYSLER CORP.

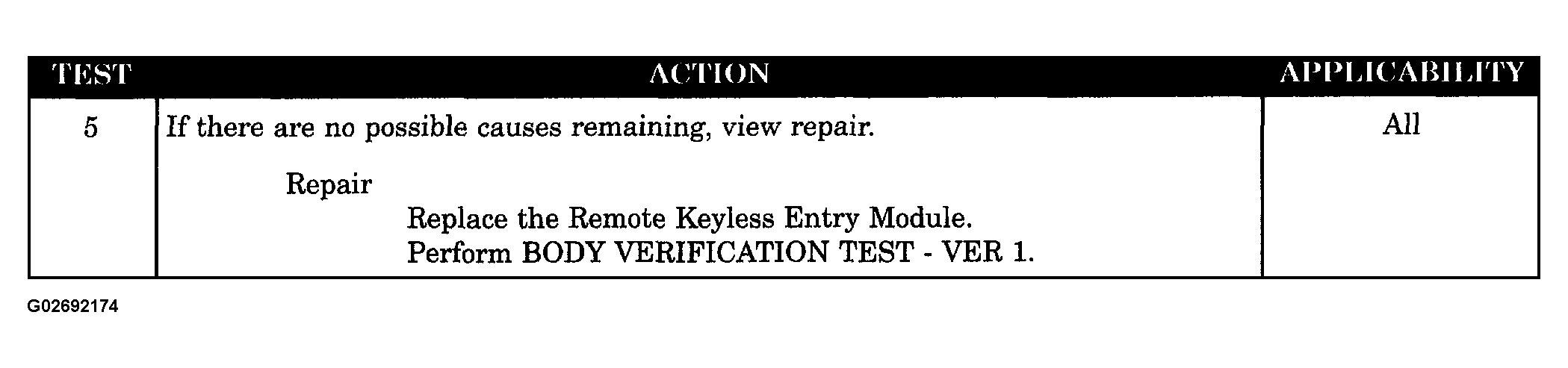

Fig 2: Testing All Doors Fail To Lock (2 Of 2)

G02692174

Courtesy of DAIMLERCHRYSLER CORP.
