Symptom: *ALL DOORS EXCEPT DRIVER FAIL TO LOCK AND UNLOCK: Testing

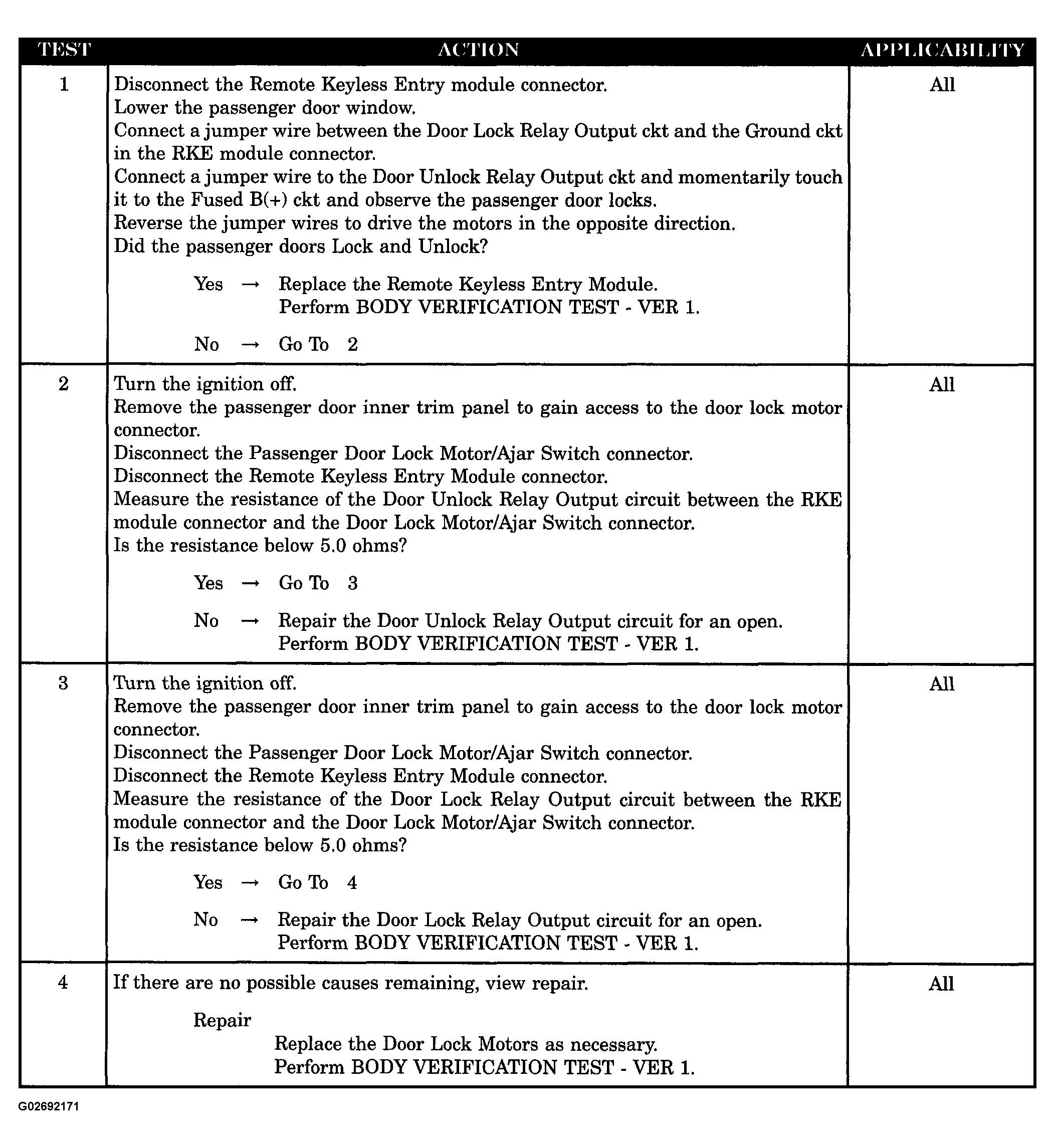

Fig 1: Testing All Doors Except Driver Fail To Lock And Unlock

G02692171

Courtesy of DAIMLERCHRYSLER CORP.
