Symptom: *ALL DOOR LOCKS INOPERATIVE: Testing

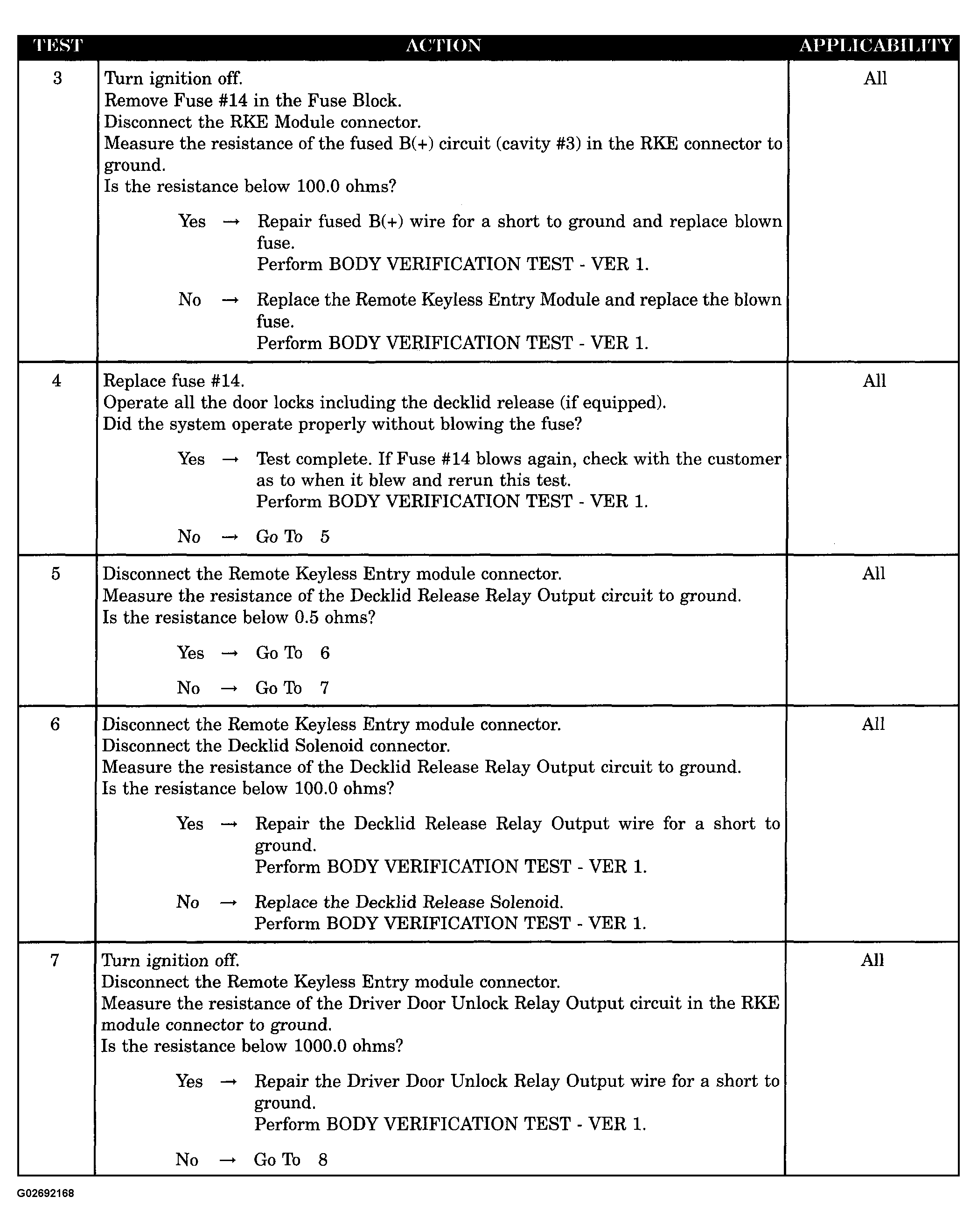

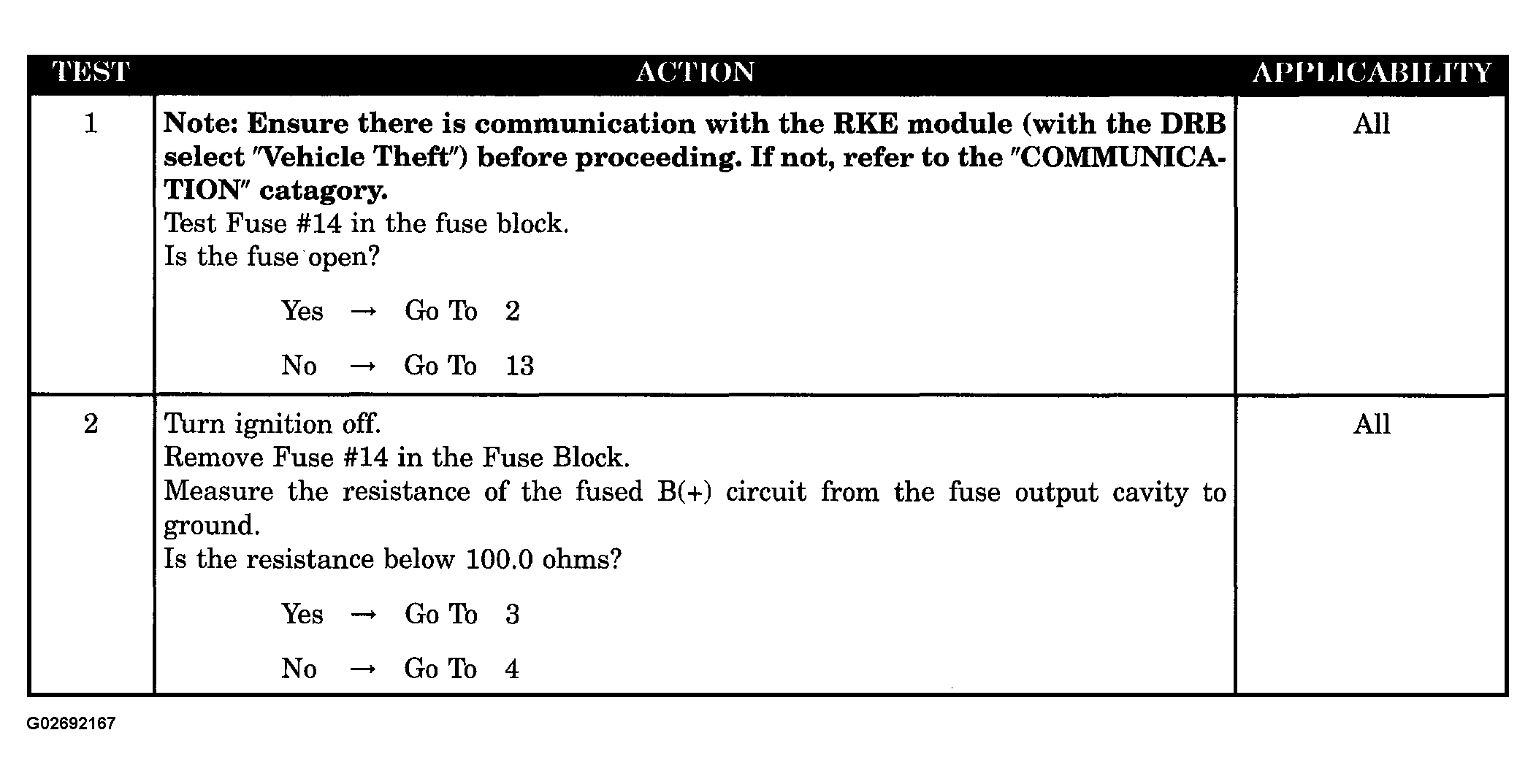

Fig 1: Testing All Door Locks Inoperative (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

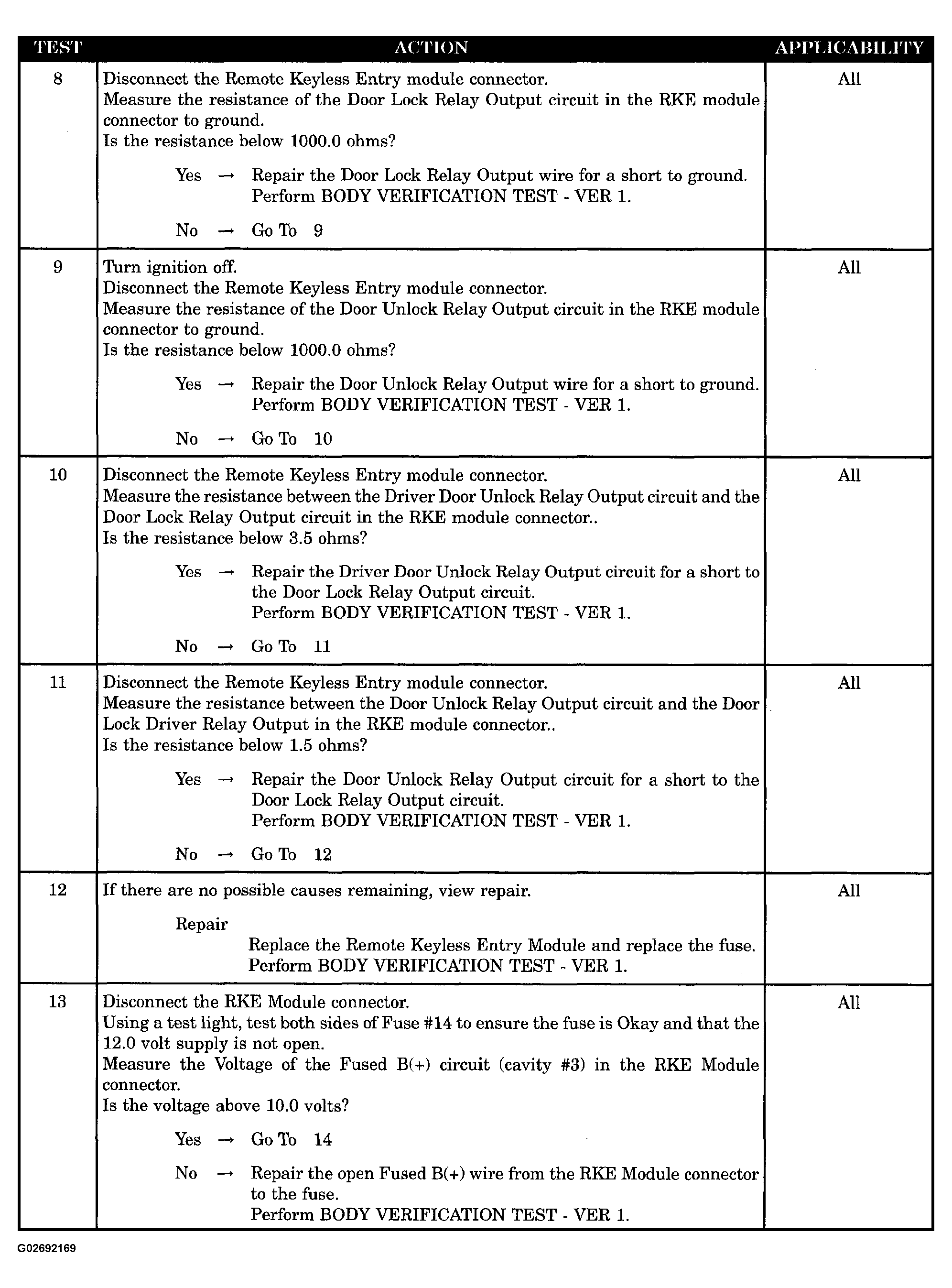

Fig 2: Testing All Door Locks Inoperative (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

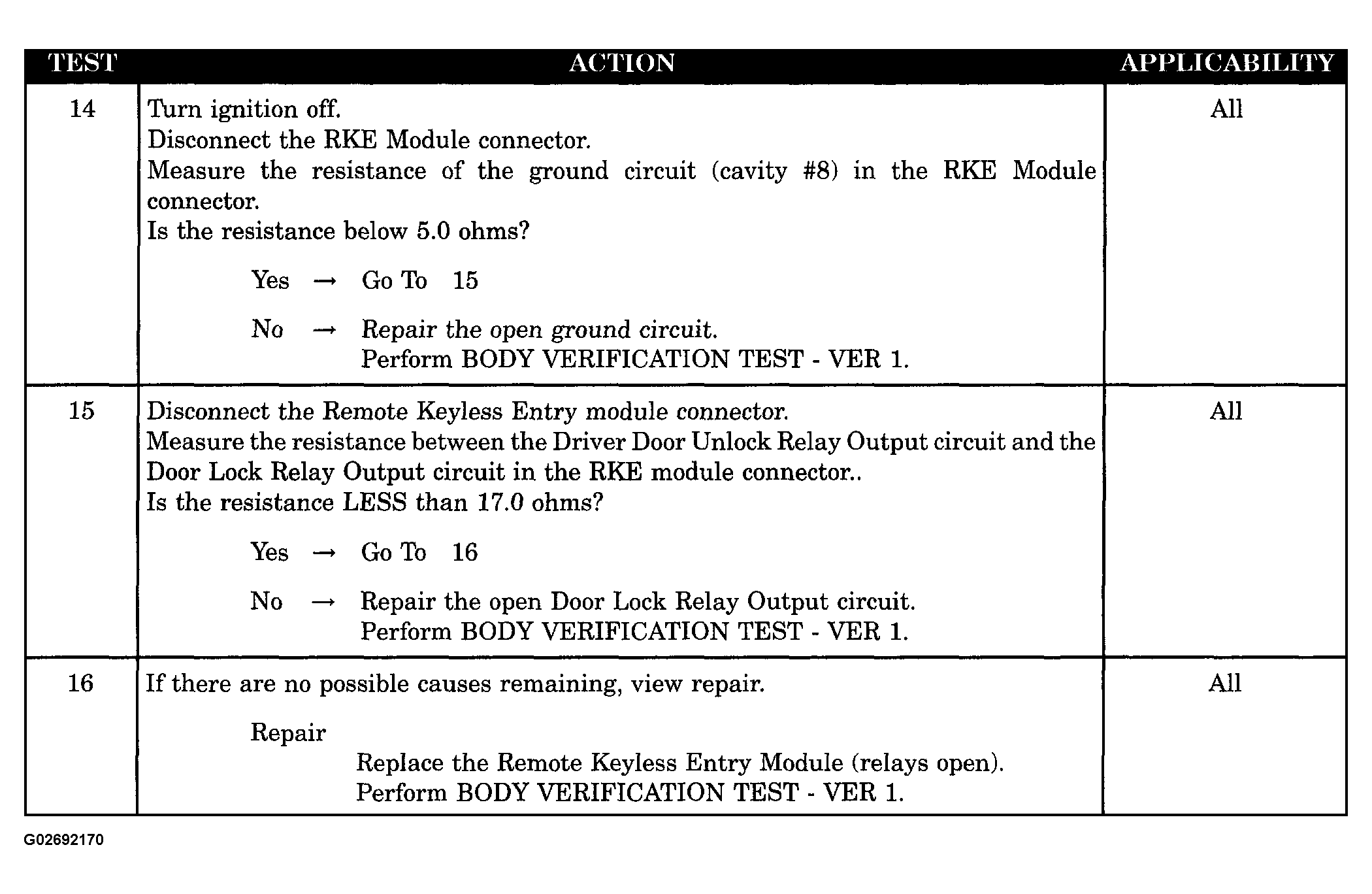

Fig 3: Testing All Door Locks Inoperative (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Testing: All Door Locks Inoperative (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
