Symptom: *ILLUMINATED ENTRY INOPERATIVE: Testing

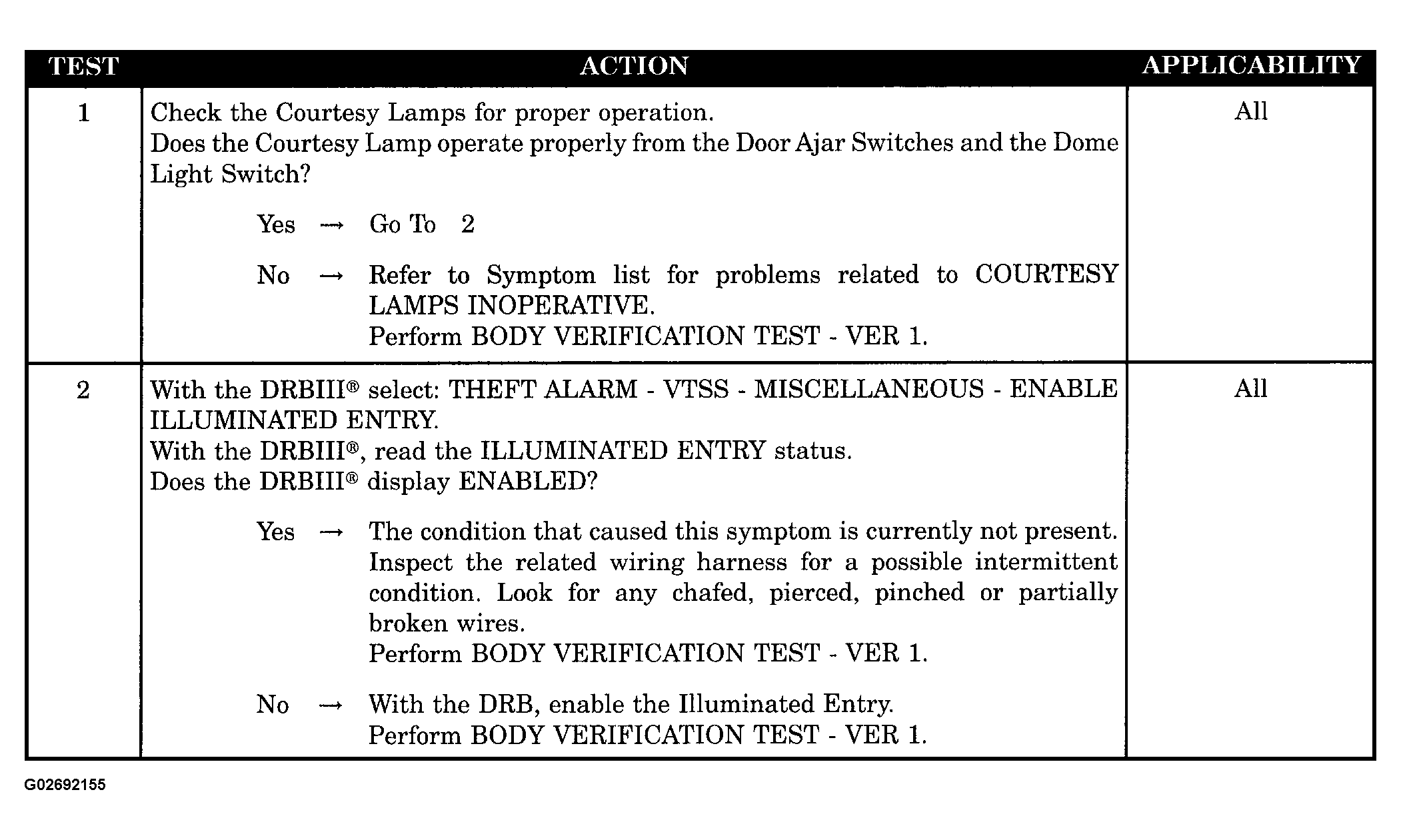

Fig 1: Testing Illuminated Entry Inoperative

G02692155

Courtesy of DAIMLERCHRYSLER CORP.
