Symptom: *COURTESY LAMPS INOPERATIVE - ALL LAMPS: Testing

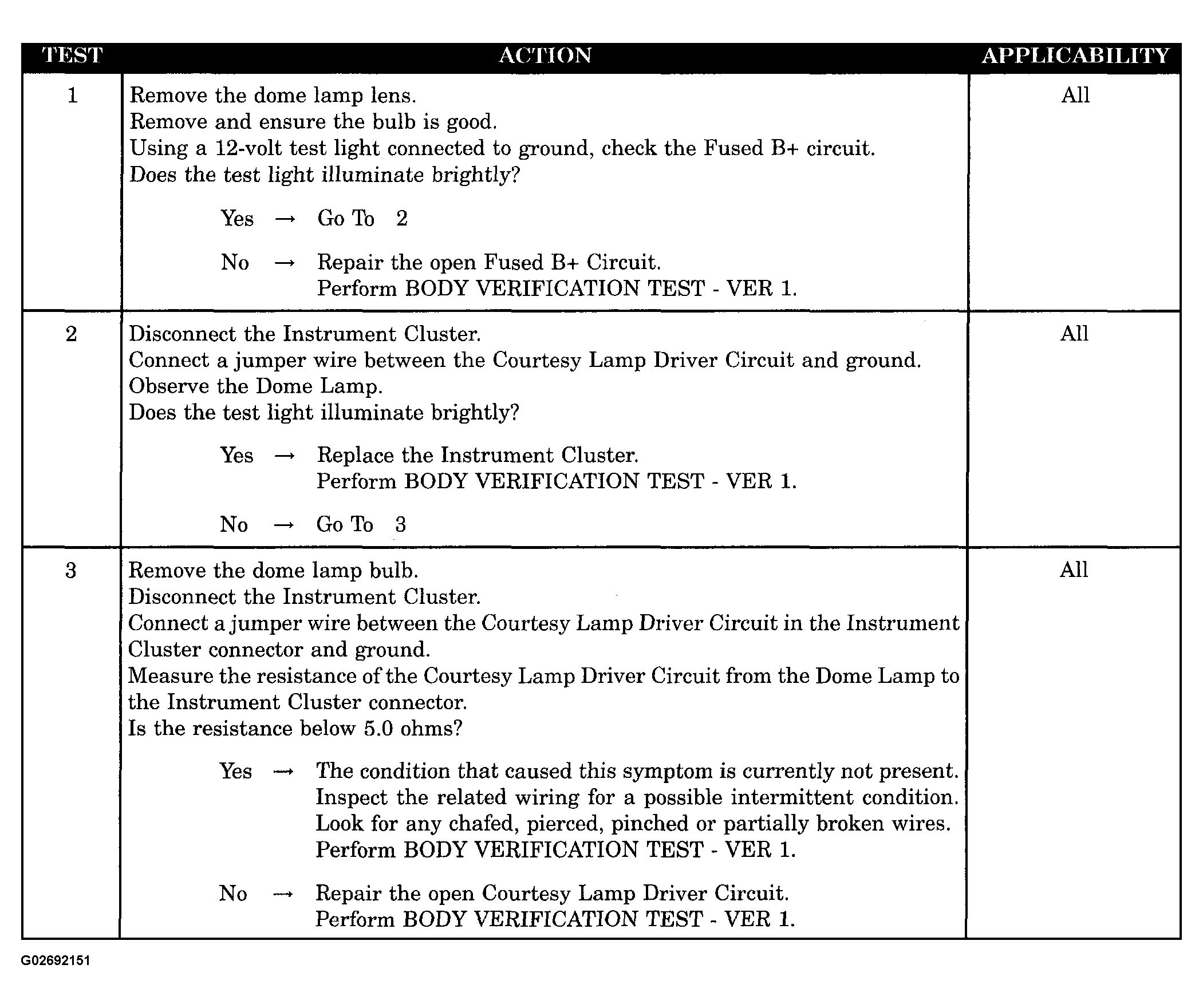

Fig 1: Testing Courtesy Lamps Inoperative - All Lamps

G02692151

Courtesy of DAIMLERCHRYSLER CORP.
