Symptom: FUEL LEVEL SENSOR SHORT: Testing

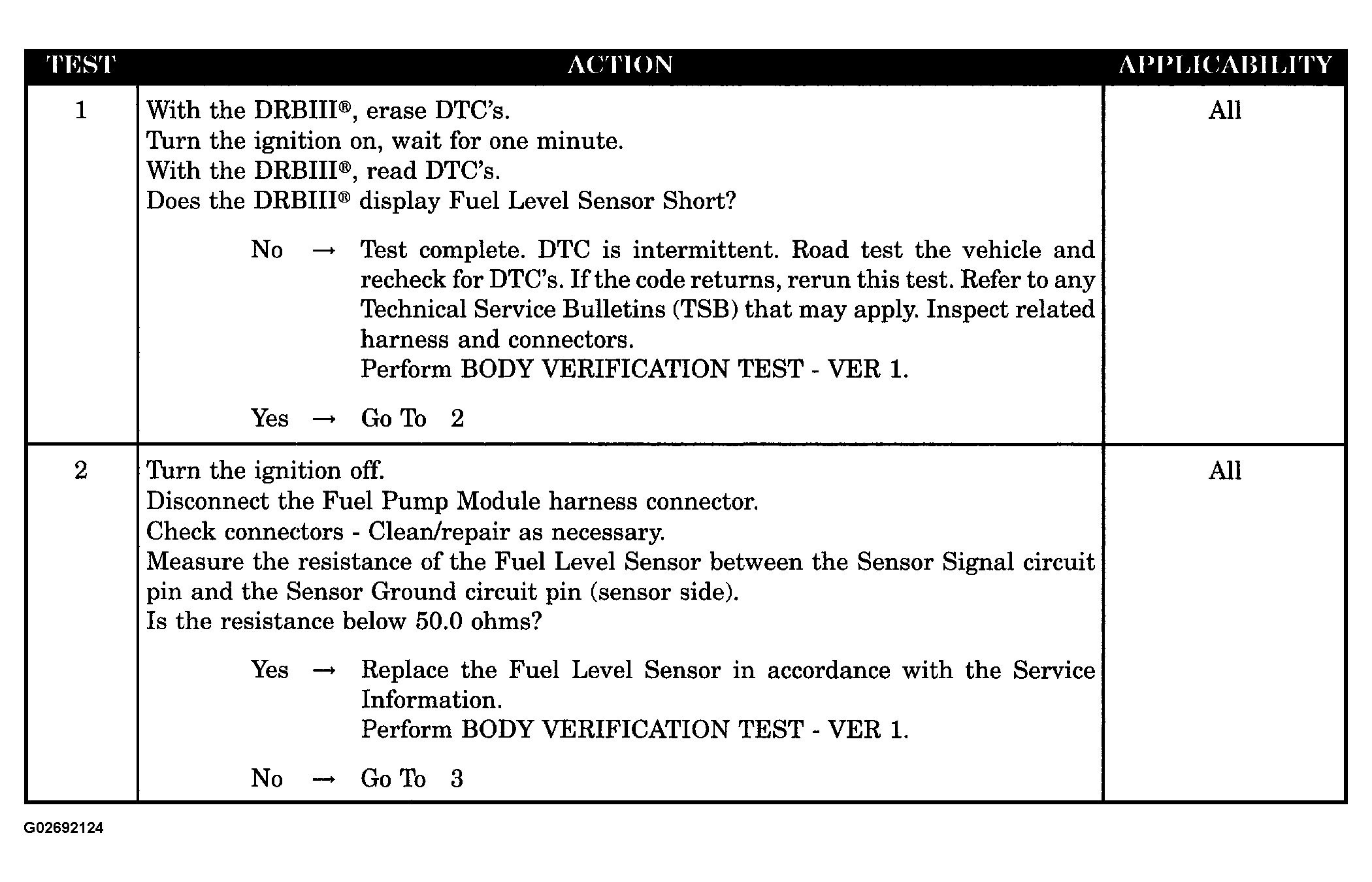

Fig 1: Testing Fuel Level Sensor Short (1 Of 2)
G02692124Courtesy of DAIMLERCHRYSLER CORP.

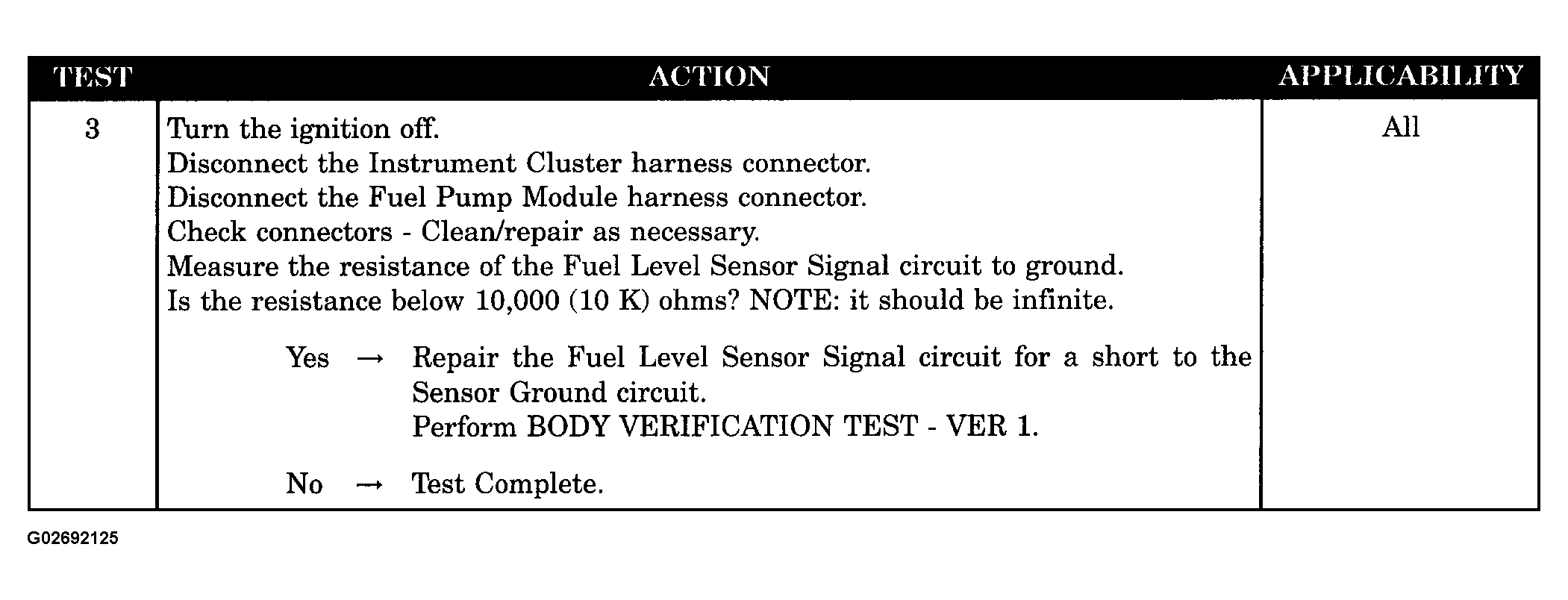

Fig 2: Testing Fuel Level Sensor Short (2 Of 2)
G02692125Courtesy of DAIMLERCHRYSLER CORP.
