Symptom: FUEL LEVEL SENSOR OPEN: Testing

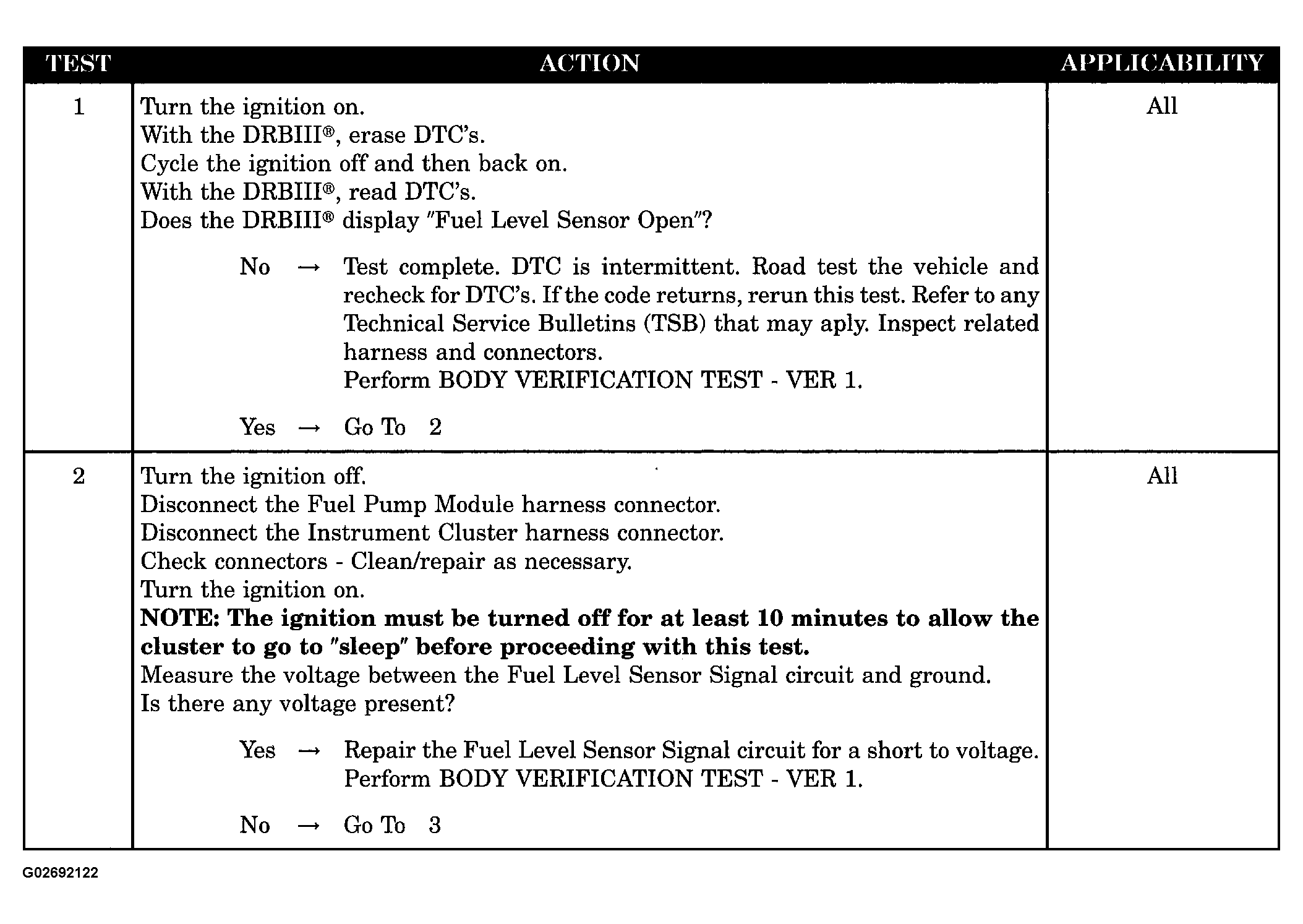

Fig 1: Testing Fuel Level Sensor Open (1 Of 2)

G02692122

Courtesy of DAIMLERCHRYSLER CORP.

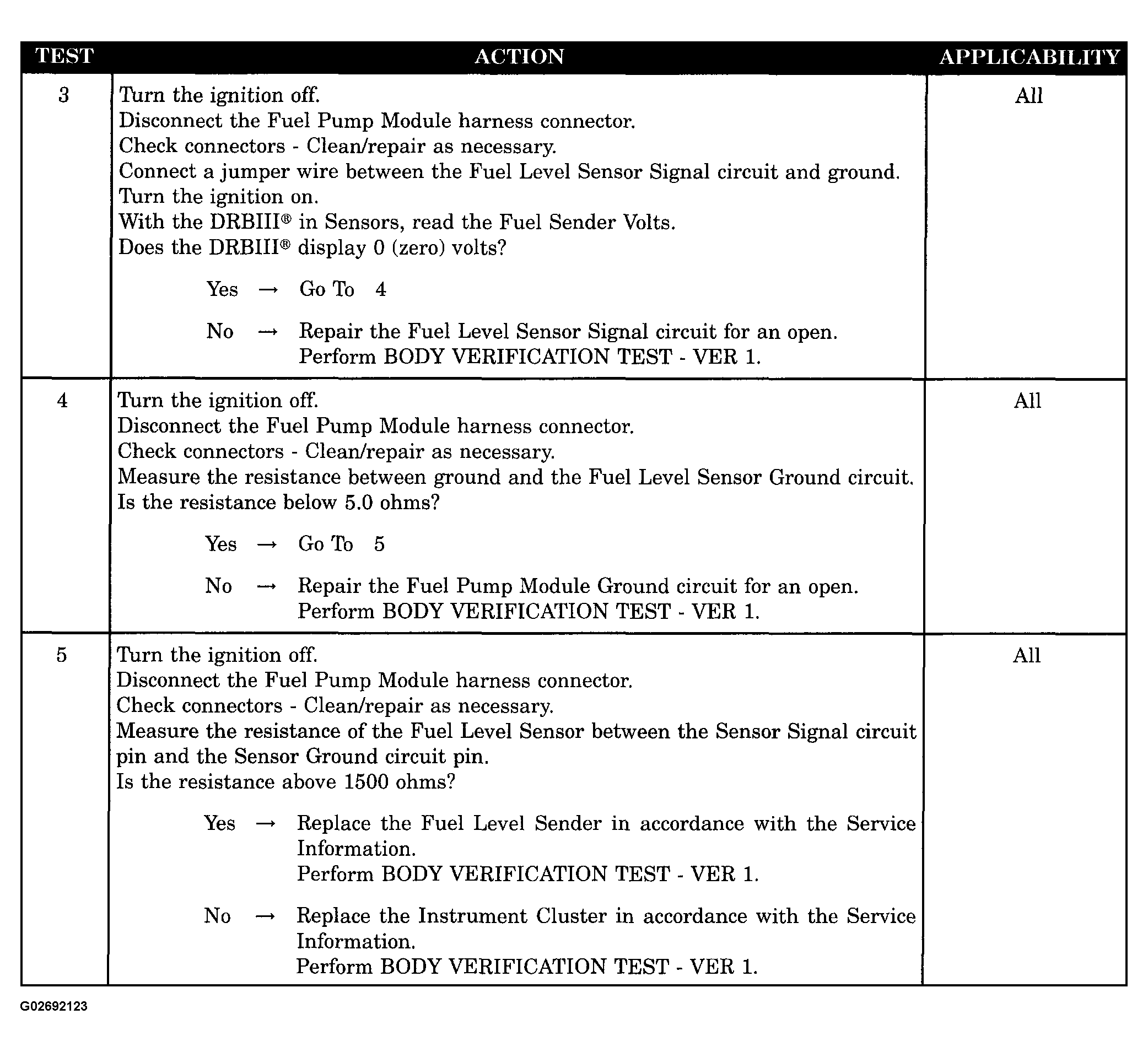

Fig 2: Testing Fuel Level Sensor Open (2 Of 2)

G02692123

Courtesy of DAIMLERCHRYSLER CORP.
