Symptom: BATTERY LOSS: Testing

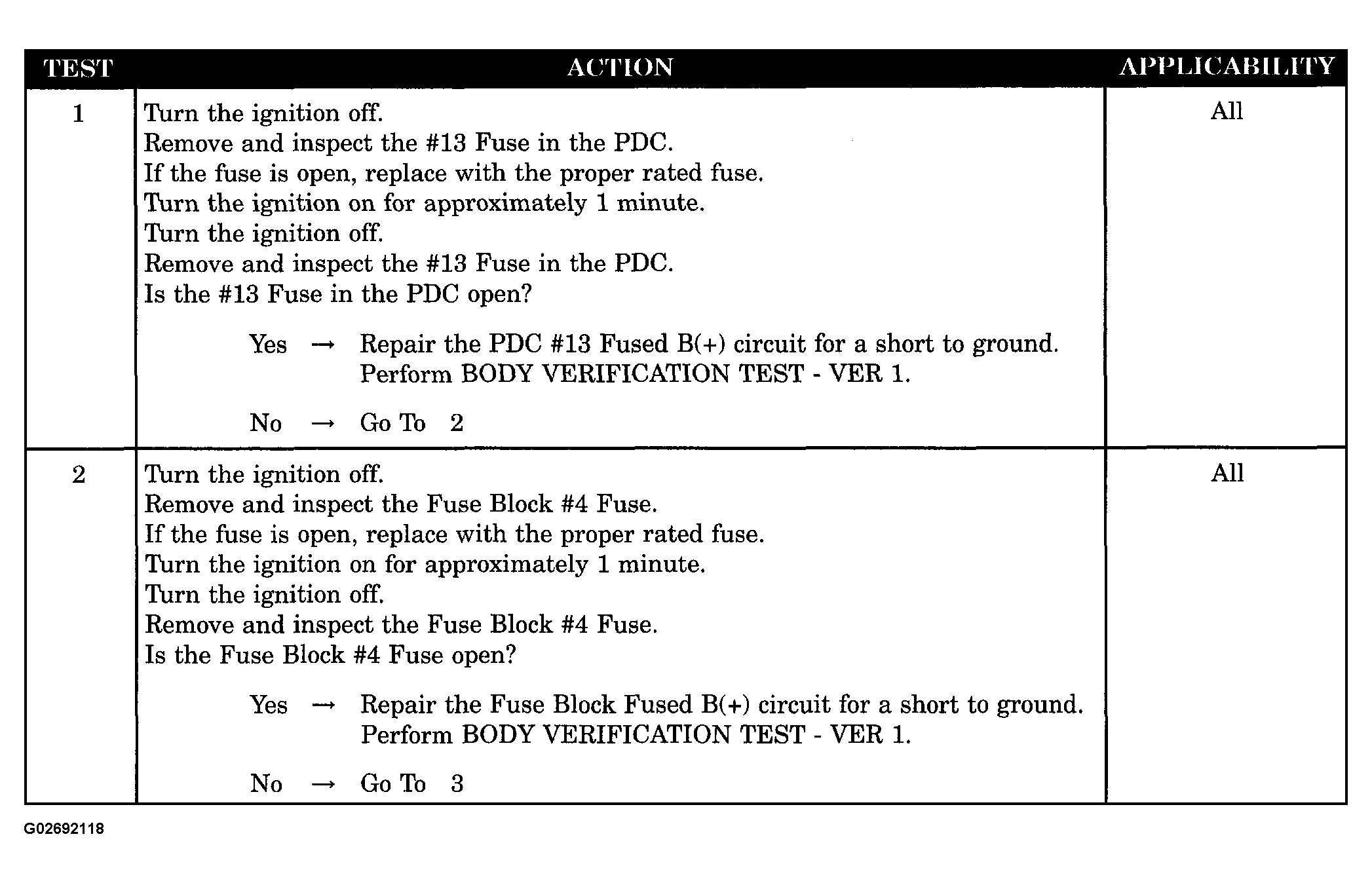

Fig 1: Testing Battery Loss (1 Of 2)

G02692118

Courtesy of DAIMLERCHRYSLER CORP.

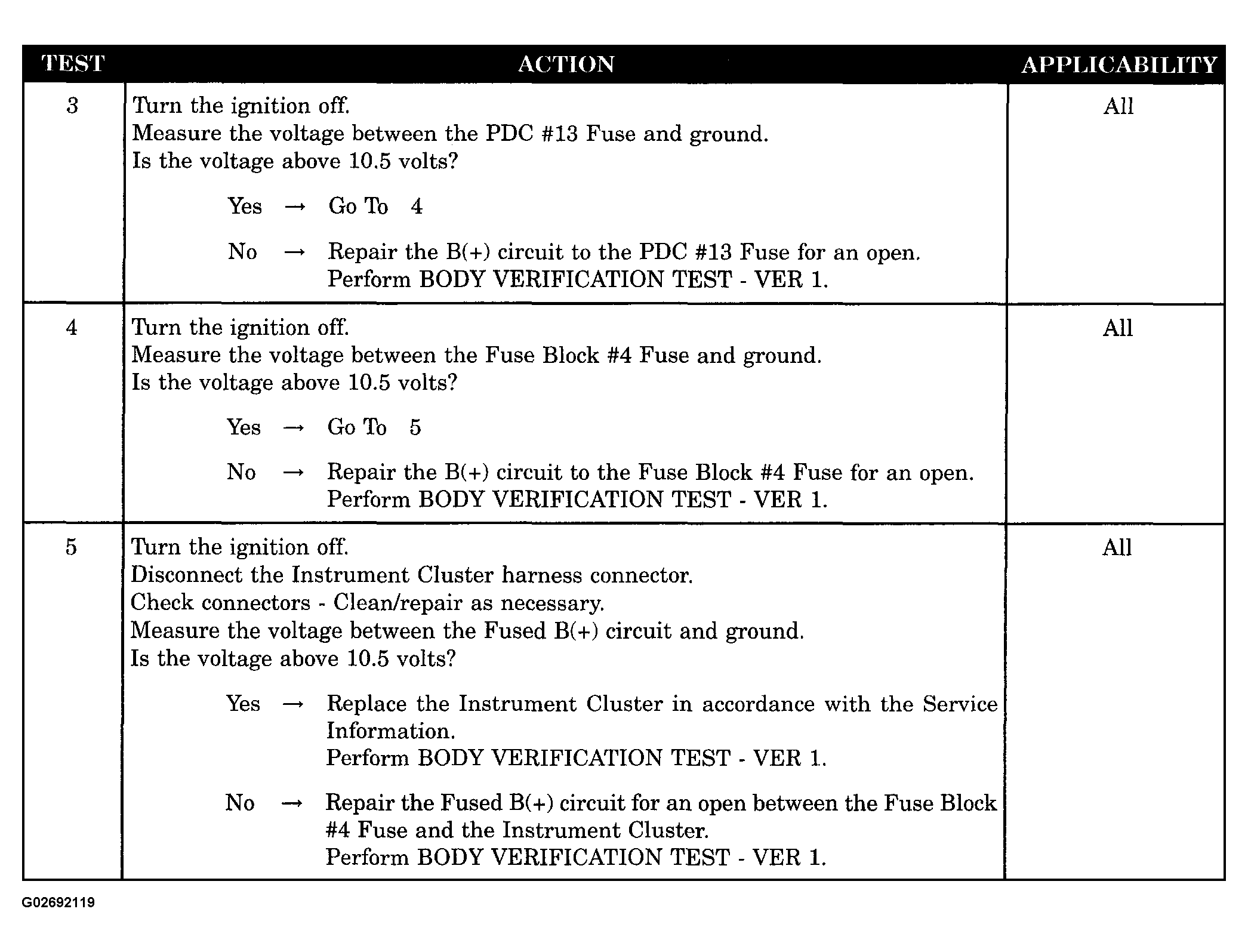

Fig 2: Testing Battery Loss (2 Of 2)

G02692119

Courtesy of DAIMLERCHRYSLER CORP.
