Home >> Dodge and Ram >> 2003 >> SX R/T >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Instrument Cluster - Symptoms >> Symptom: *REAR FOG LAMP INDICATOR INOPERATIVE - BUX ONLY >> Testing

Symptom: *REAR FOG LAMP INDICATOR INOPERATIVE - BUX ONLY: Testing

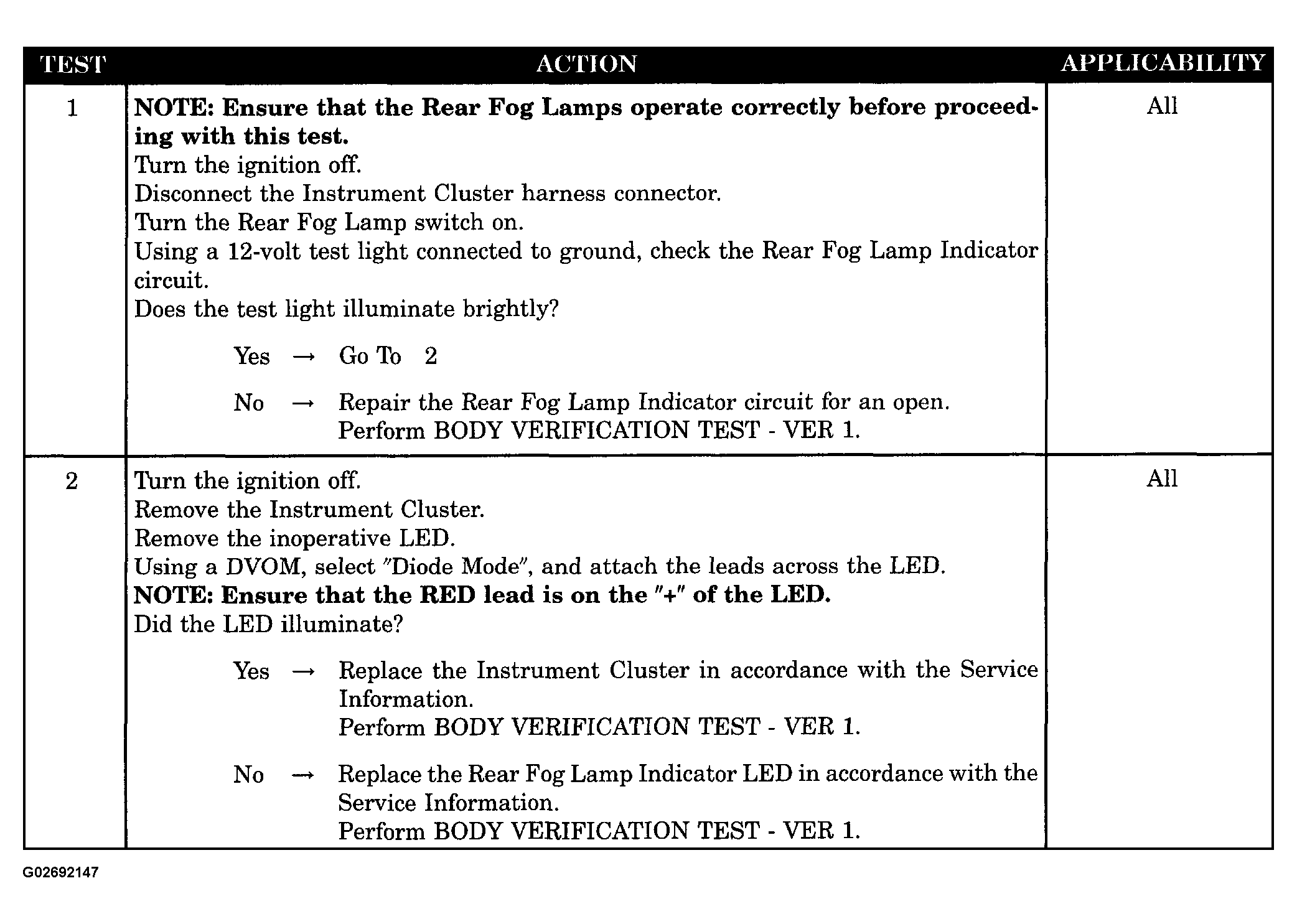

Fig 1: Testing Rear Fog Lamp Indicator Inoperative - BUX Only

G02692147

Courtesy of DAIMLERCHRYSLER CORP.
