Symptom: *PRND OR AUTOSTICK INDICATOR DISPLAY INACCURATE OR INOPERATIVE: Testing

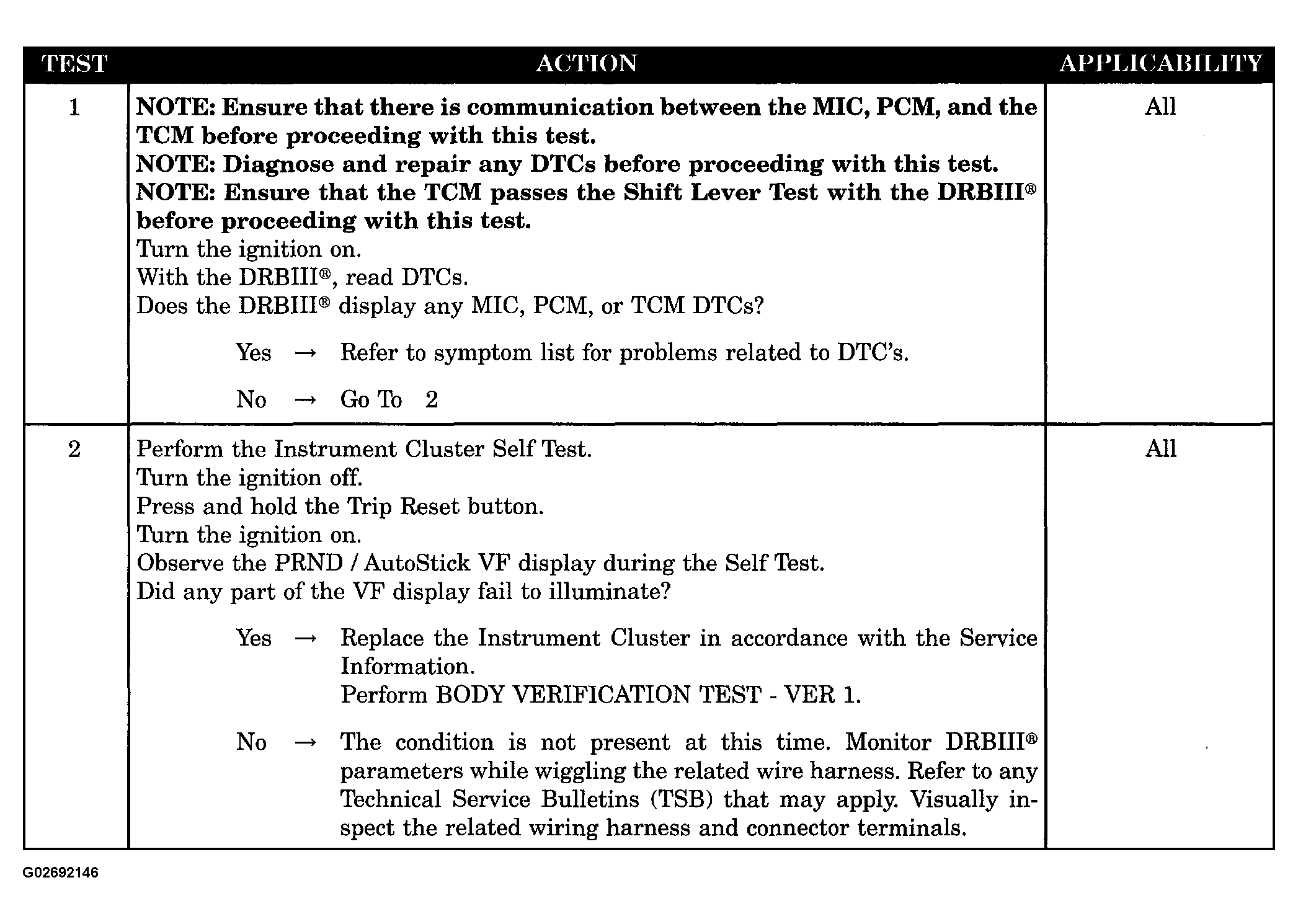

Fig 1: Testing PRND Or Autostick Indicator Display Inaccurate Or Inoperative

G02692146

Courtesy of DAIMLERCHRYSLER CORP.
