Symptom: *LOW OIL PRESSURE INDICATOR ALWAYS ON: Testing

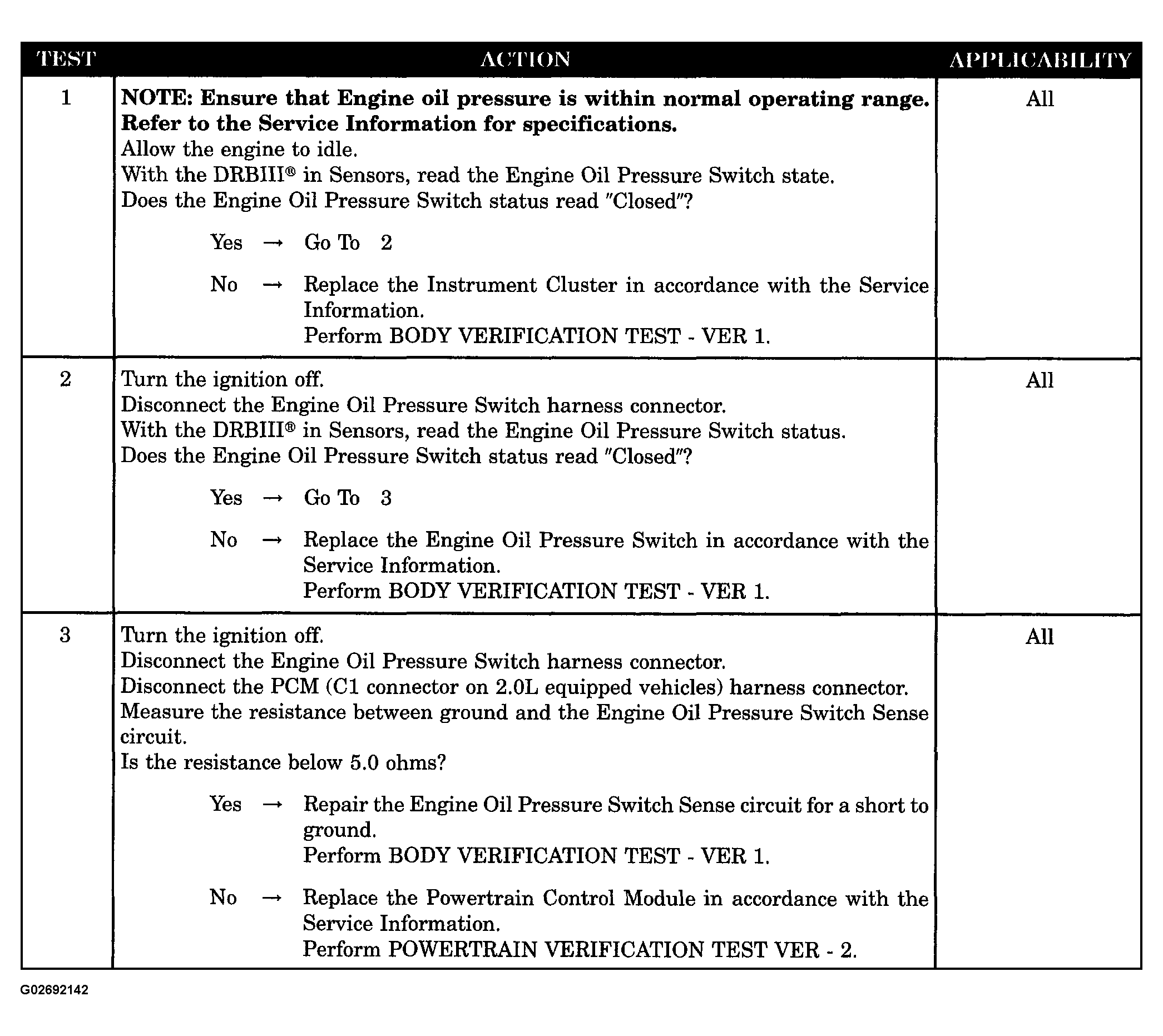

Fig 1: Testing Low Oil Pressure Indicator Always On

G02692142

Courtesy of DAIMLERCHRYSLER CORP.
