Symptom: *HIGH BEAM INDICATOR INOPERATIVE: Testing

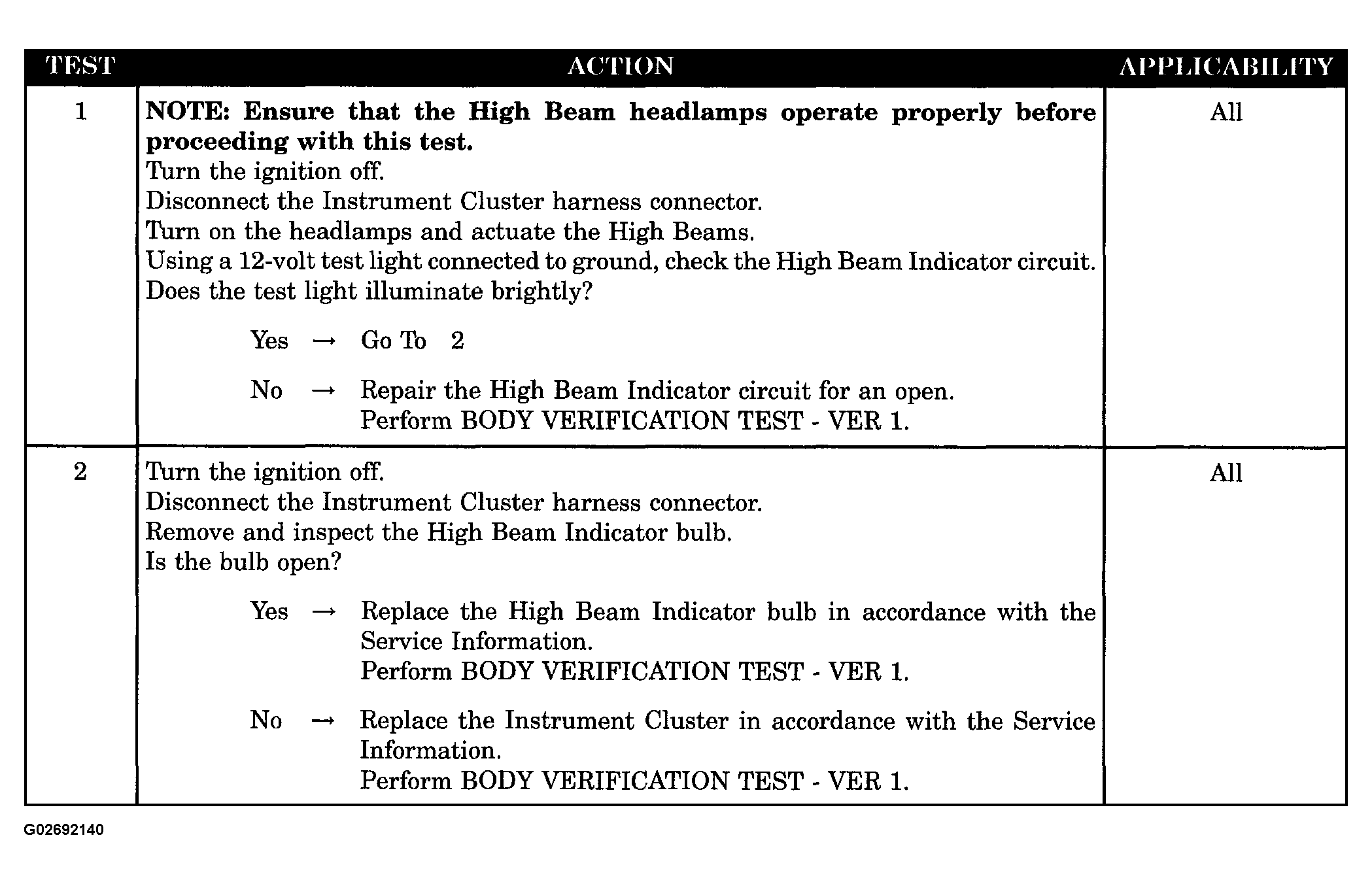

Fig 1: Testing High Beam Indicator Inoperative

G02692140

Courtesy of DAIMLERCHRYSLER CORP.
