Symptom: *ANY OR ALL GAUGE POINTER(S) ON WRONG SIDE OF STOP: Testing

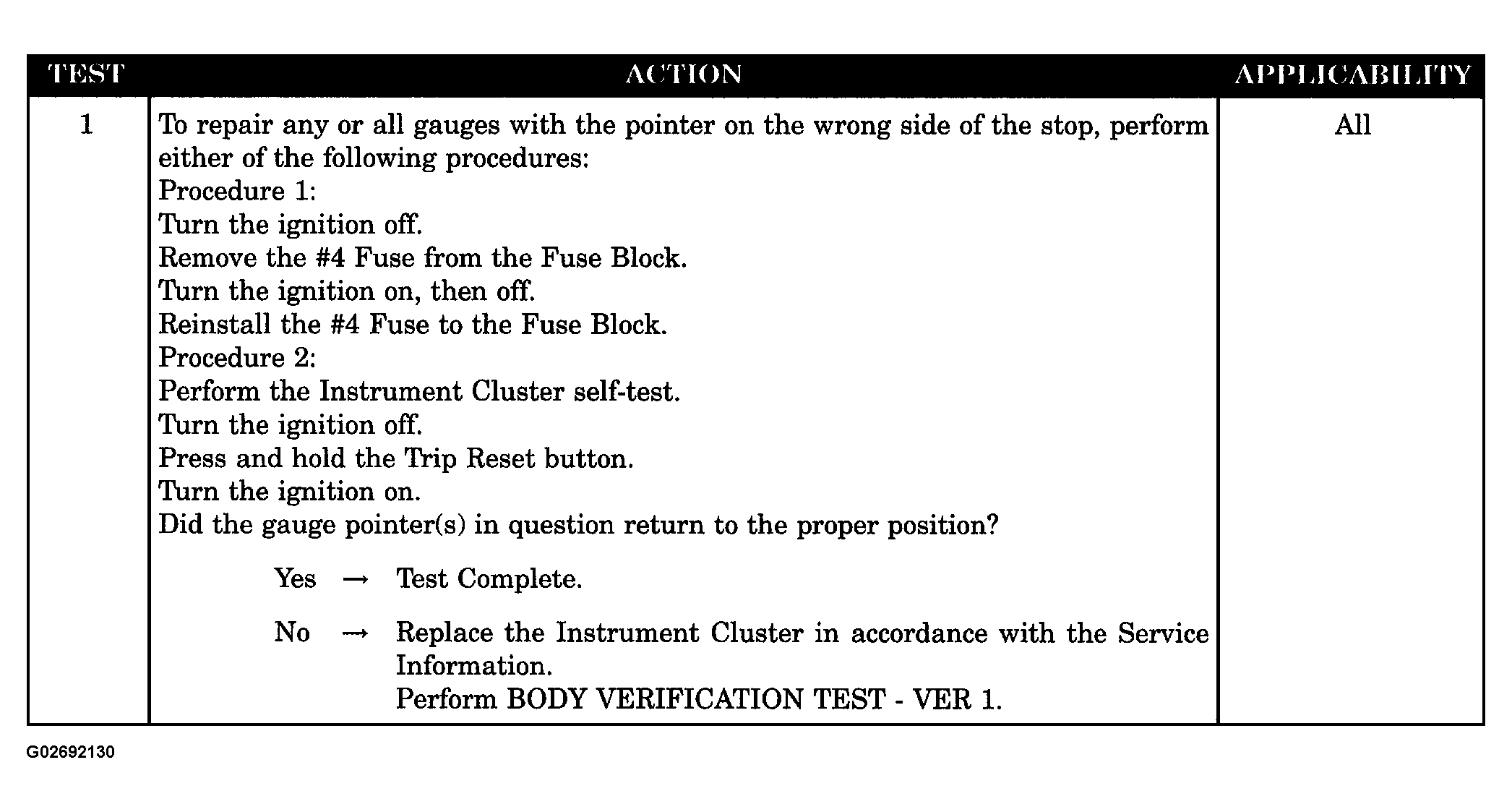

Fig 1: Testing Any Or All Gauge Pointer(S) On Wrong Side Of Stop

G02692130

Courtesy of DAIMLERCHRYSLER CORP.
