Symptom: *ALL GAUGES INOPERATIVE: Testing

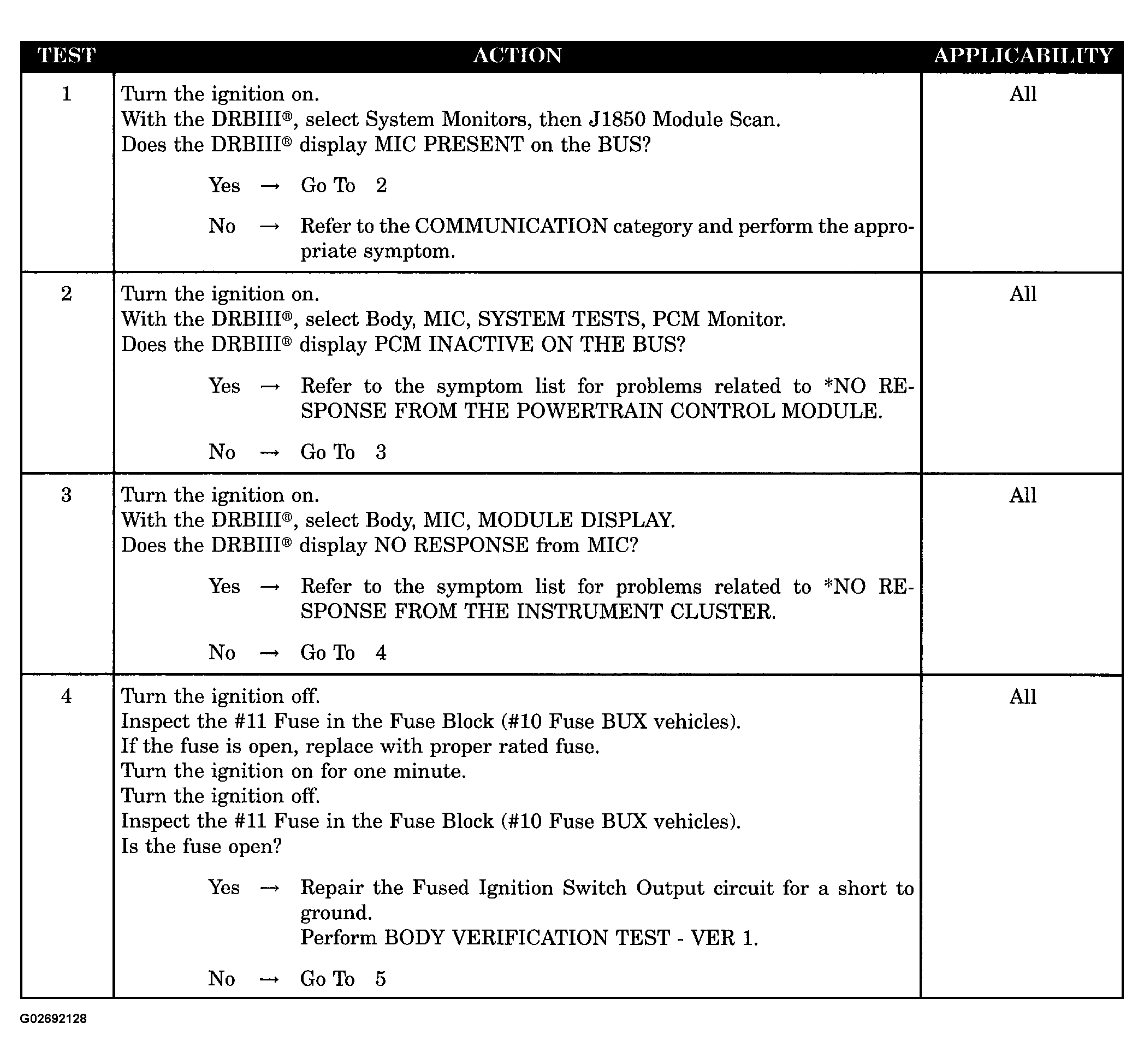

Fig 1: Testing All Gauges Inoperative (1 Of 2)

G02692128

Courtesy of DAIMLERCHRYSLER CORP.

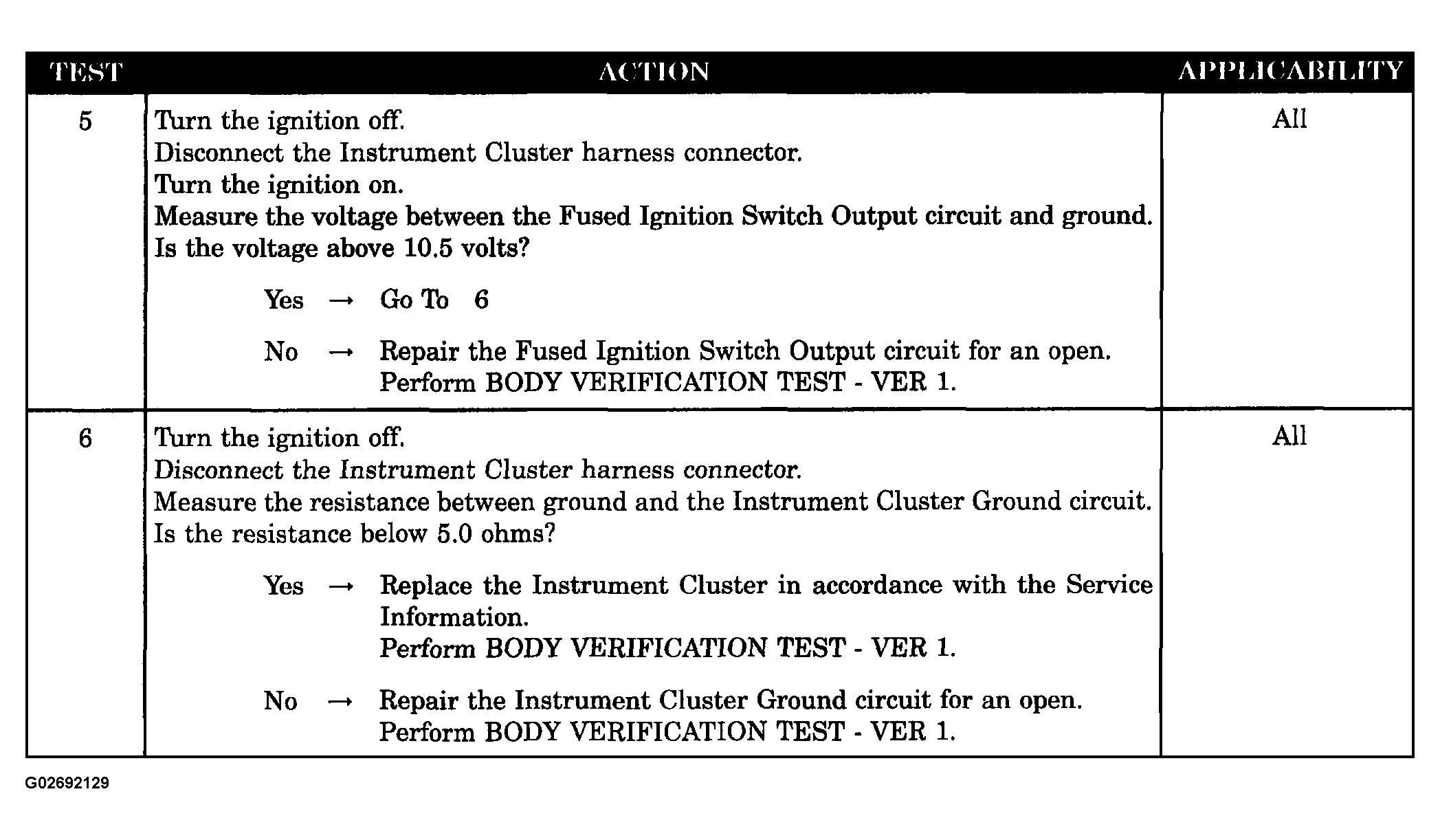

Fig 2: Testing All Gauges Inoperative (2 Of 2)

G02692129

Courtesy of DAIMLERCHRYSLER CORP.
