Symptom: *LOW BEAM HEADLAMPS WILL NOT TURN ON: Testing

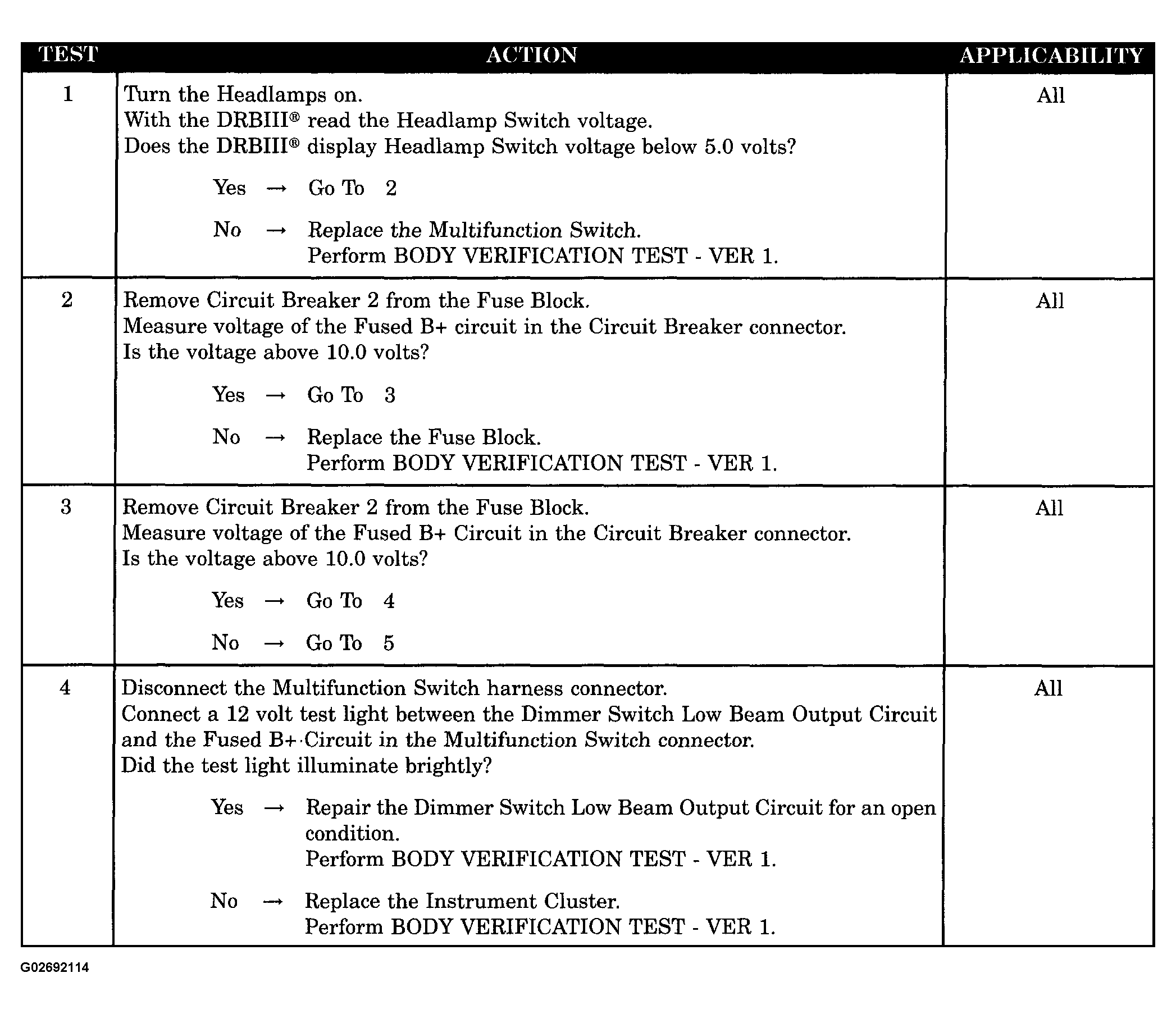

Fig 1: Testing Low Beam Headlamps Will Not Turn On (1 Of 2)
G02692114Courtesy of DAIMLERCHRYSLER CORP.

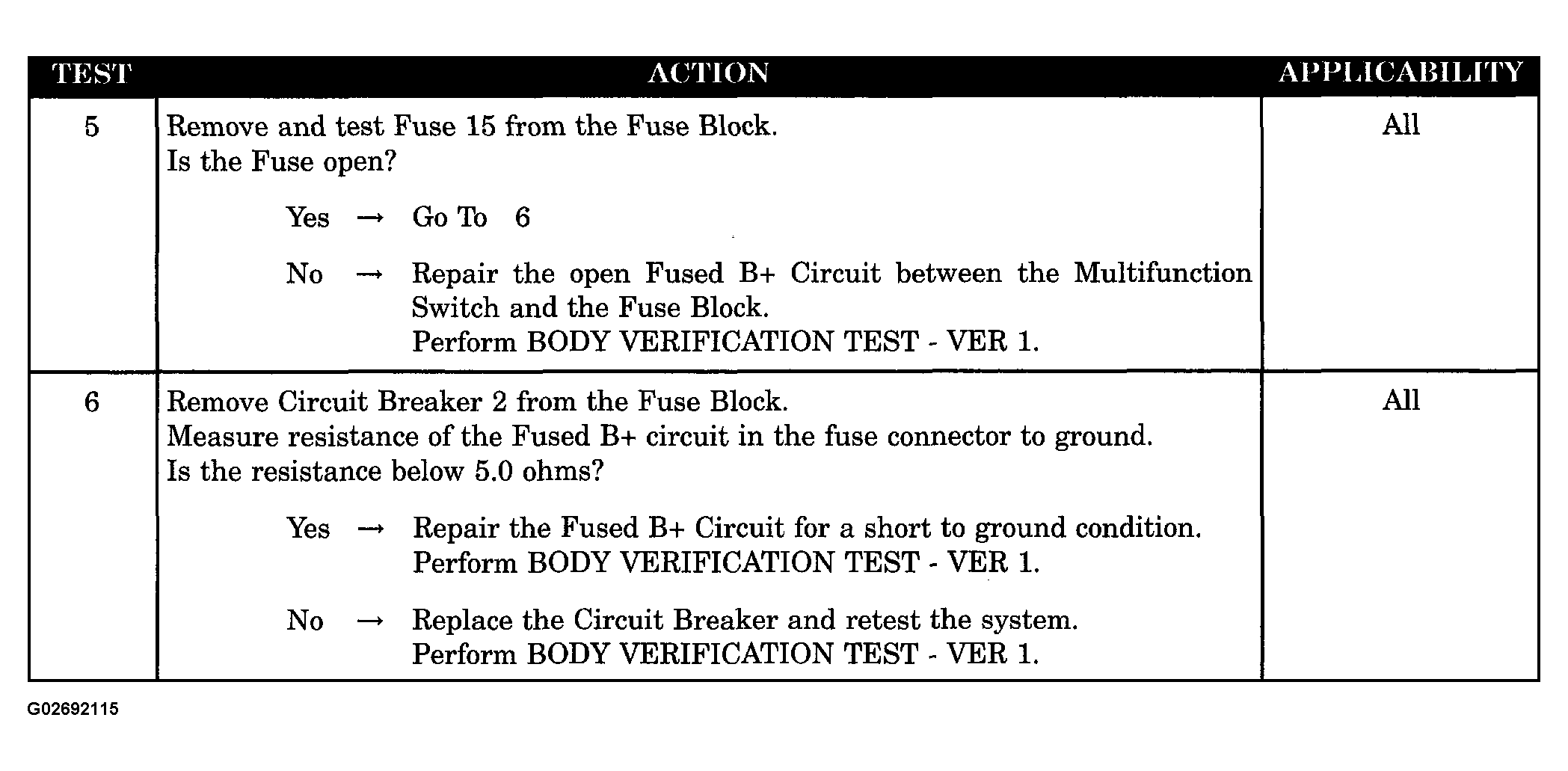

Fig 2: Testing Low Beam Headlamps Will Not Turn On (2 Of 2)
G02692115Courtesy of DAIMLERCHRYSLER CORP.
