Symptom: *LOW BEAM HEADLAMPS WILL NOT TURN OFF: Testing

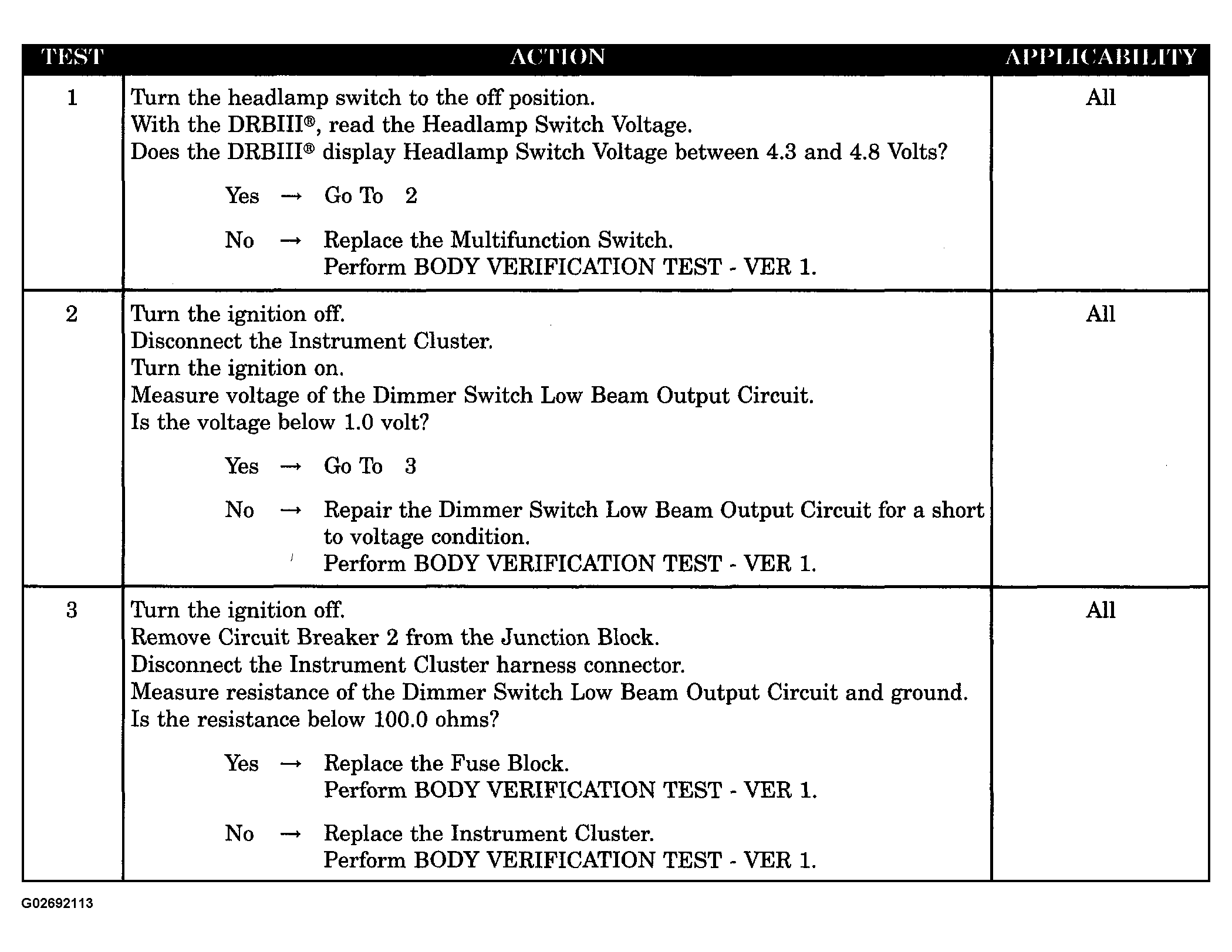

Fig 1: Testing Low Beam Headlamps Will Not Turn Off

G02692113

Courtesy of DAIMLERCHRYSLER CORP.
