Symptom: *HIGH BEAM HEADLAMPS WILL NOT TURN OFF: Testing

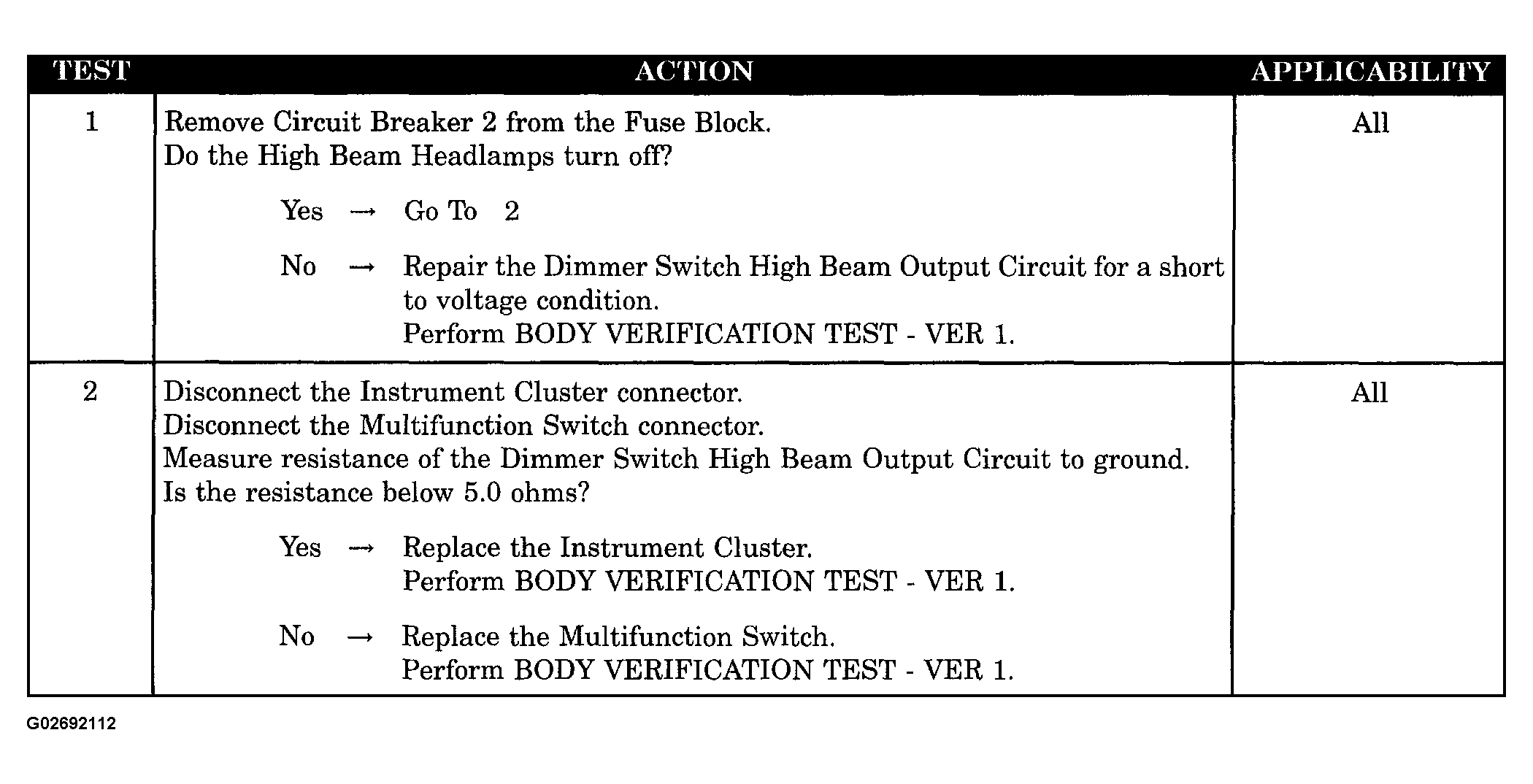

Fig 1: Testing High Beam Headlamps Will Not Turn Off

G02692112

Courtesy of DAIMLERCHRYSLER CORP.
