Symptom: COMPASS/TEMPERATURE MIRROR INTERNAL FAILURE: Testing

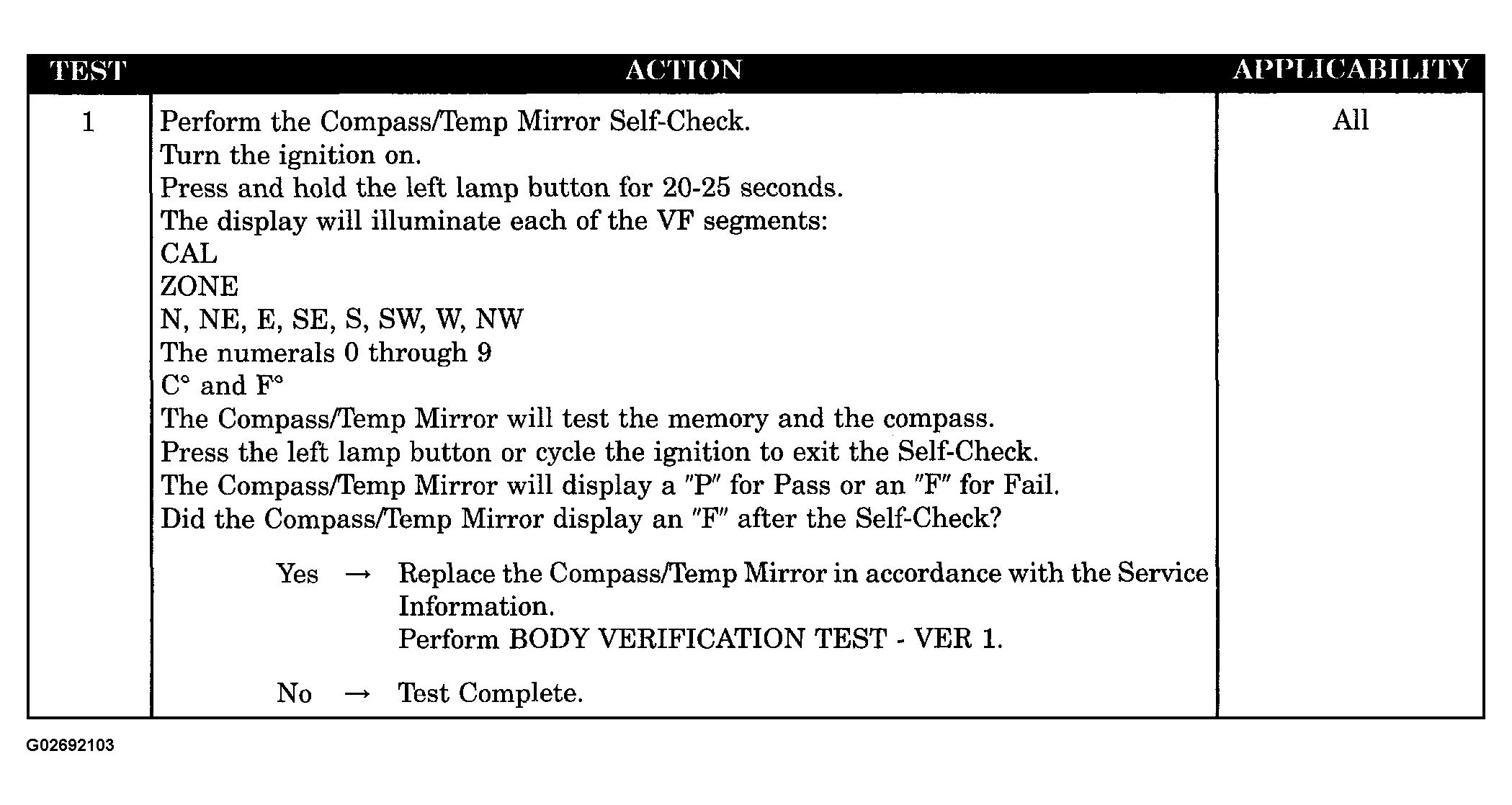

Fig 1: Testing Compass/Temperature Mirror Internal Failure

G02692103

Courtesy of DAIMLERCHRYSLER CORP.
