Symptom: AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT (1.6L ONLY): Testing

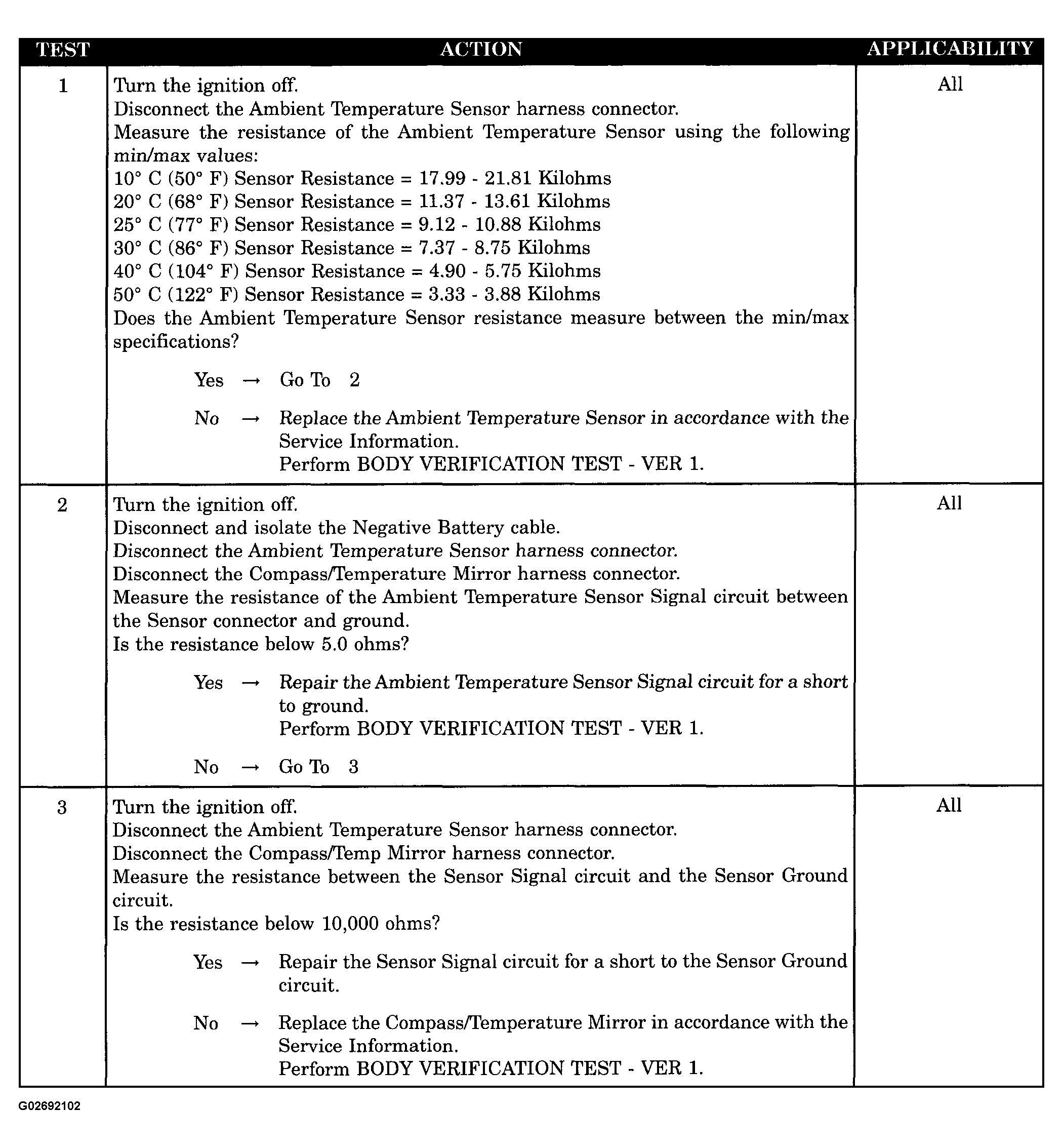

Fig 1: Testing Ambient Temperature Sensor Circuit Short (1.6L Only)

G02692102

Courtesy of DAIMLERCHRYSLER CORP.
