Symptom: AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN (1.6L ONLY): Testing

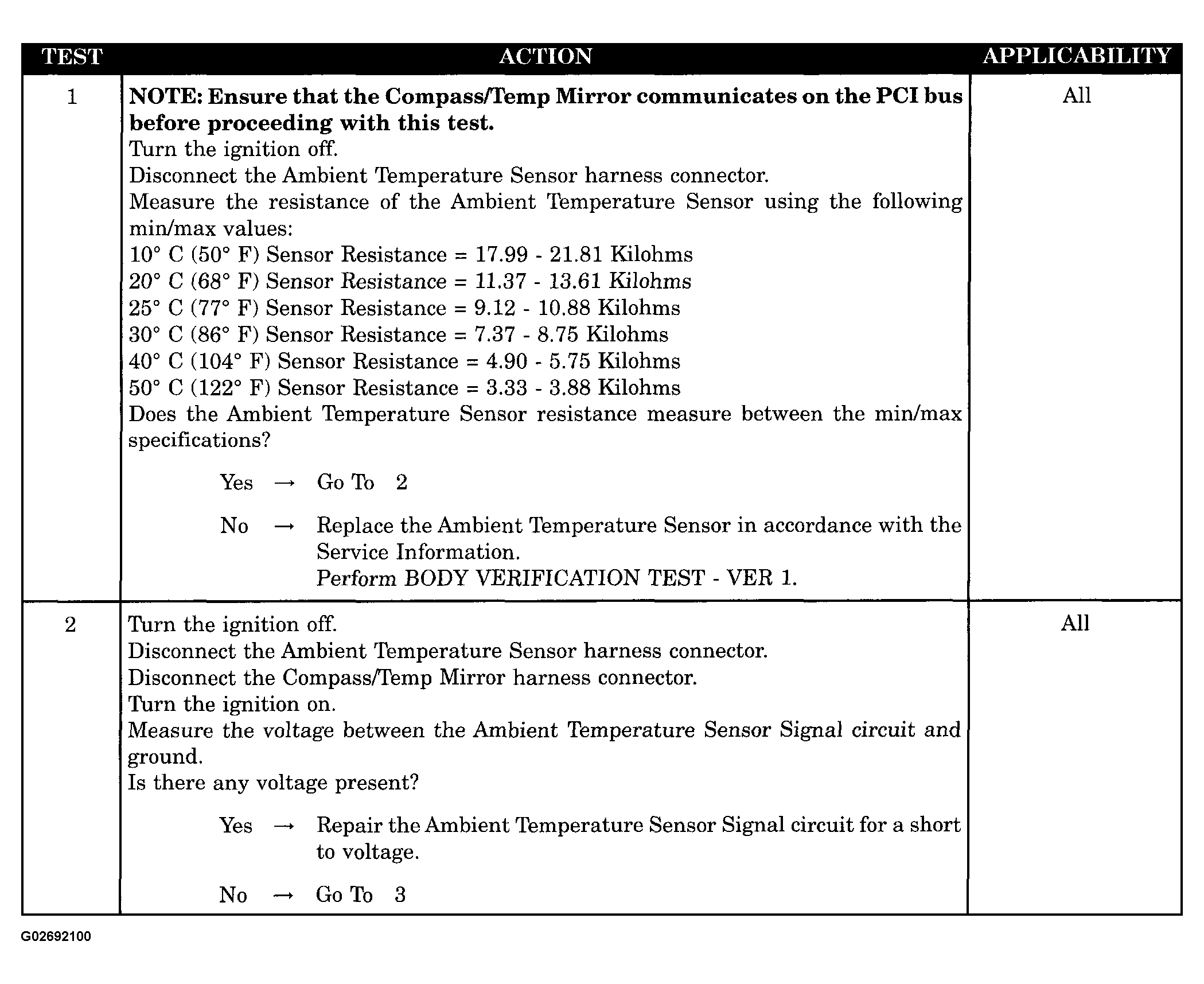

Fig 1: Testing Ambient Temperature Sensor Circuit Open 1.6L Only (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

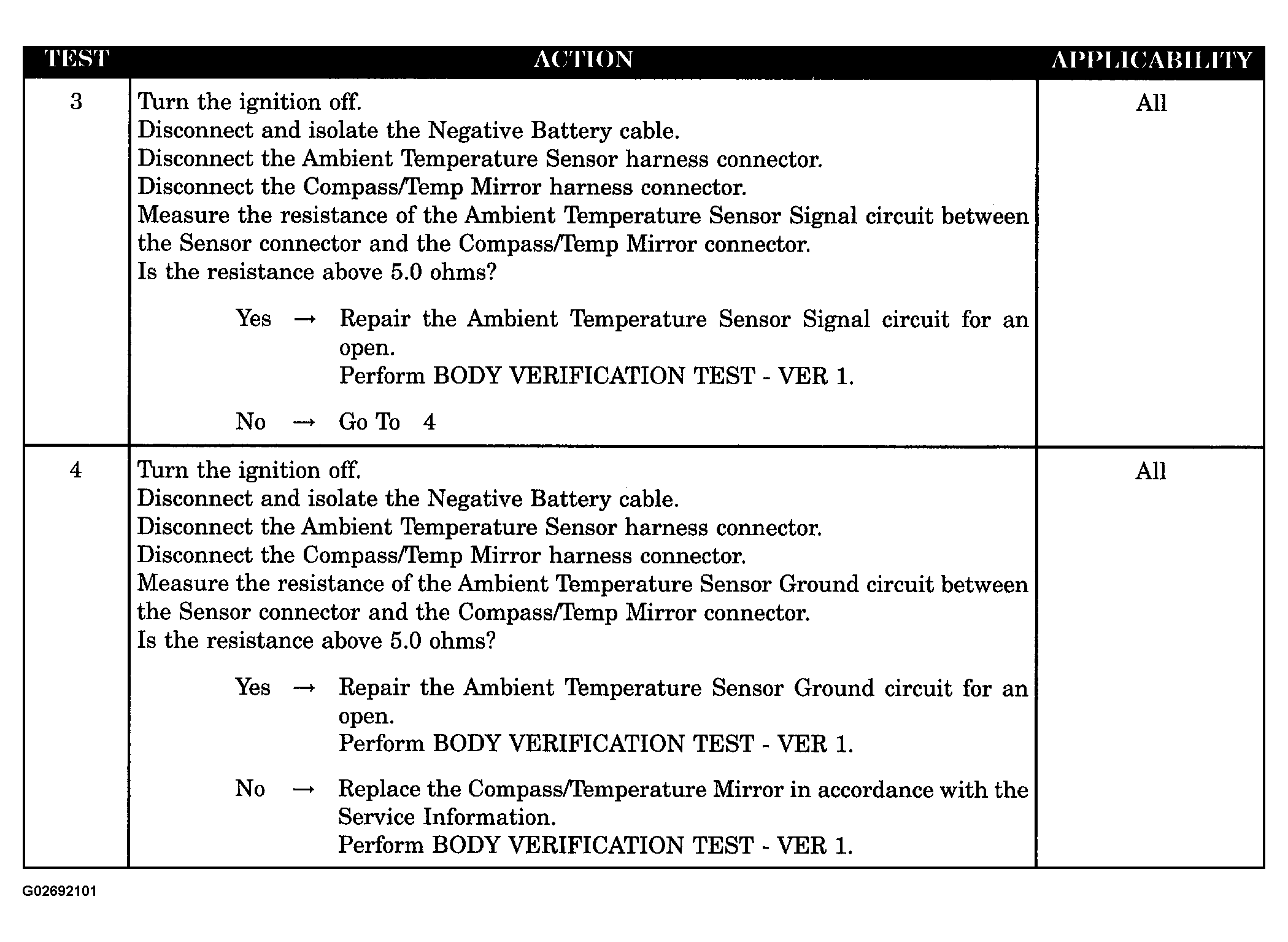

Fig 2: Testing Ambient Temperature Sensor Circuit Open 1.6L Only (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
