Symptom: *TEMPERATURE DISPLAY INOPERATIVE OR WRONG (2.0L ONLY)

POSSIBLE CAUSES

  1. DTC PRESENT IN PCM
  2. AMBIENT TEMPERATURE SENSOR
  3. COMPASS/TEMPERATURE MIRROR

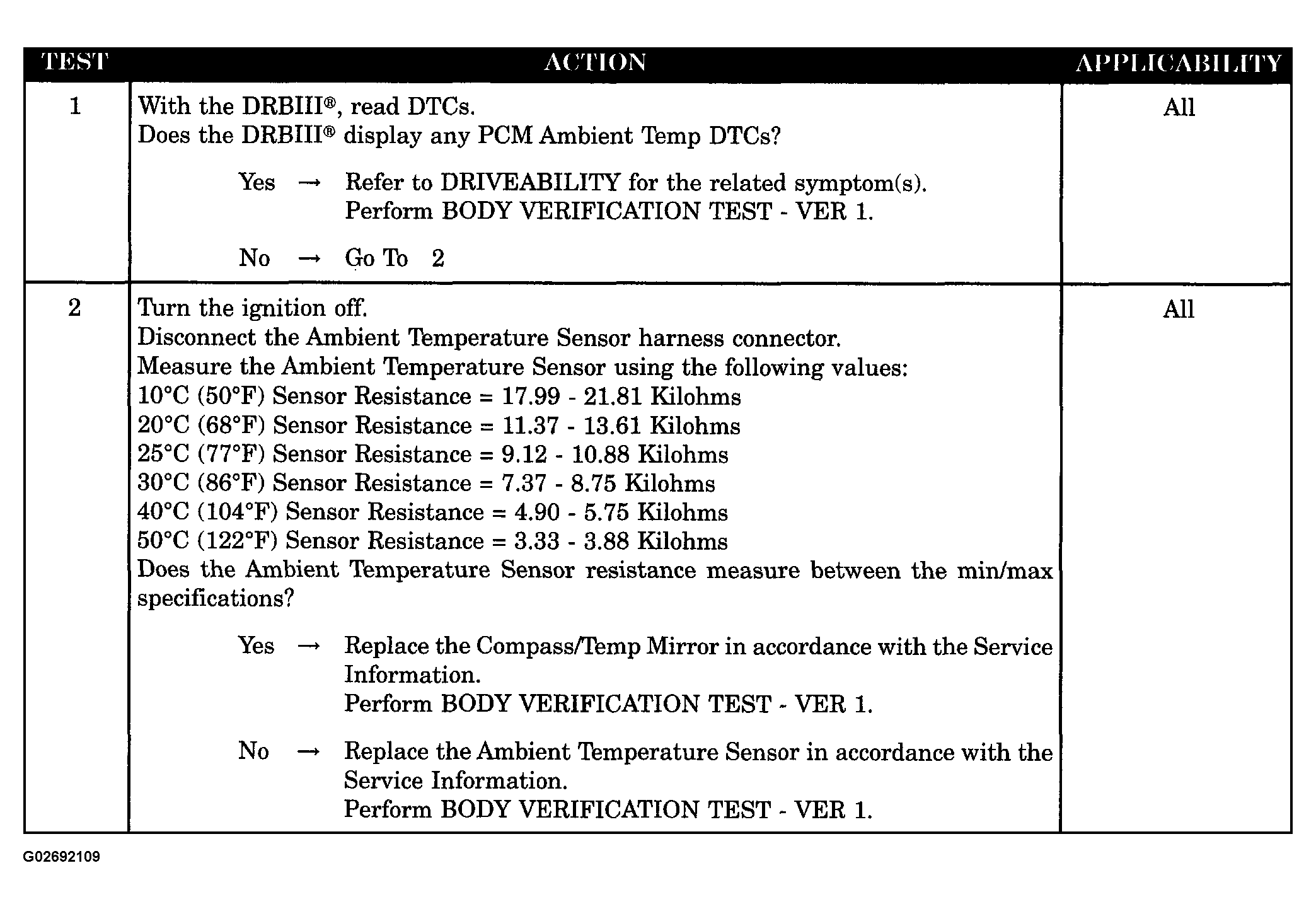

Fig 1: Tests For Symptom: Temperature Display Inoperative Or Wrong (2.0L Only)
G02692109Courtesy of DAIMLERCHRYSLER CORP.
