Symptom: *TEMPERATURE DISPLAY INOPERATIVE OR WRONG (1.6L ONLY): Testing

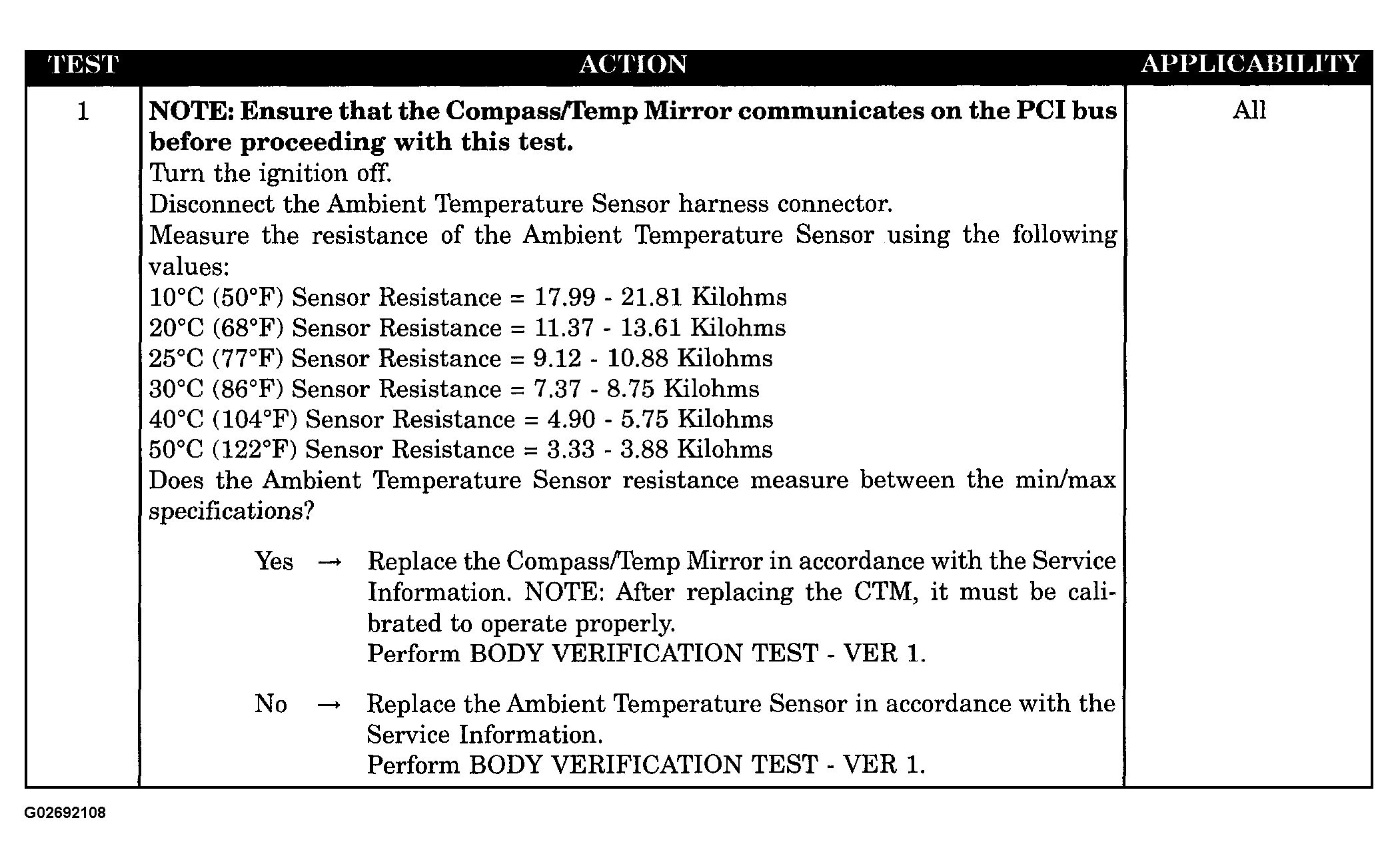

Fig 1: Testing Temperature Display Inoperative Or Wrong (1.6L Only)

G02692108

Courtesy of DAIMLERCHRYSLER CORP.
