Symptom: *COMPASS/TEMPERATURE MIRROR INOPERATIVE: Testing

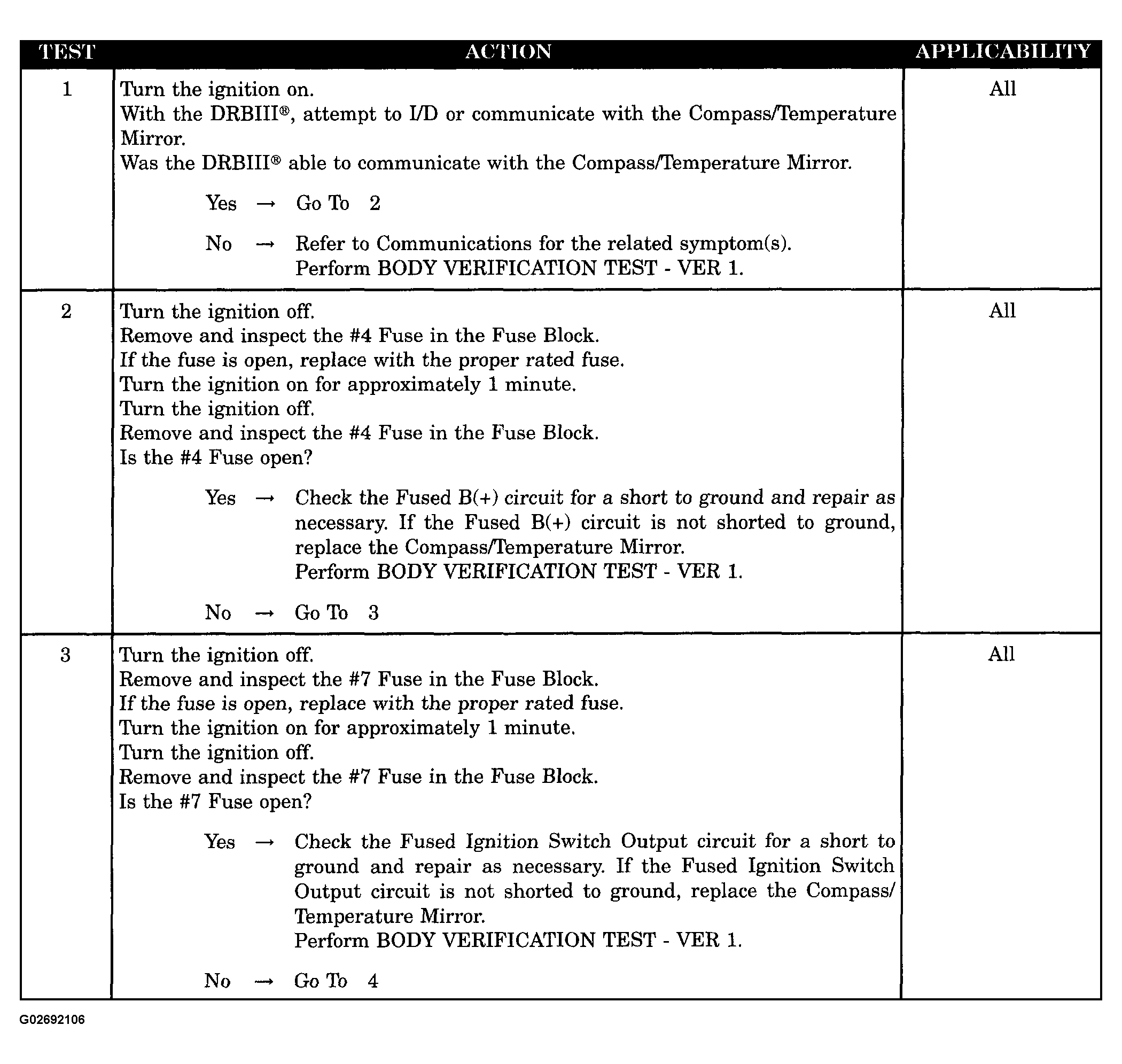

Fig 1: Testing Compass/Temperature Mirror Inoperative (1 Of 2)
G02692106Courtesy of DAIMLERCHRYSLER CORP.

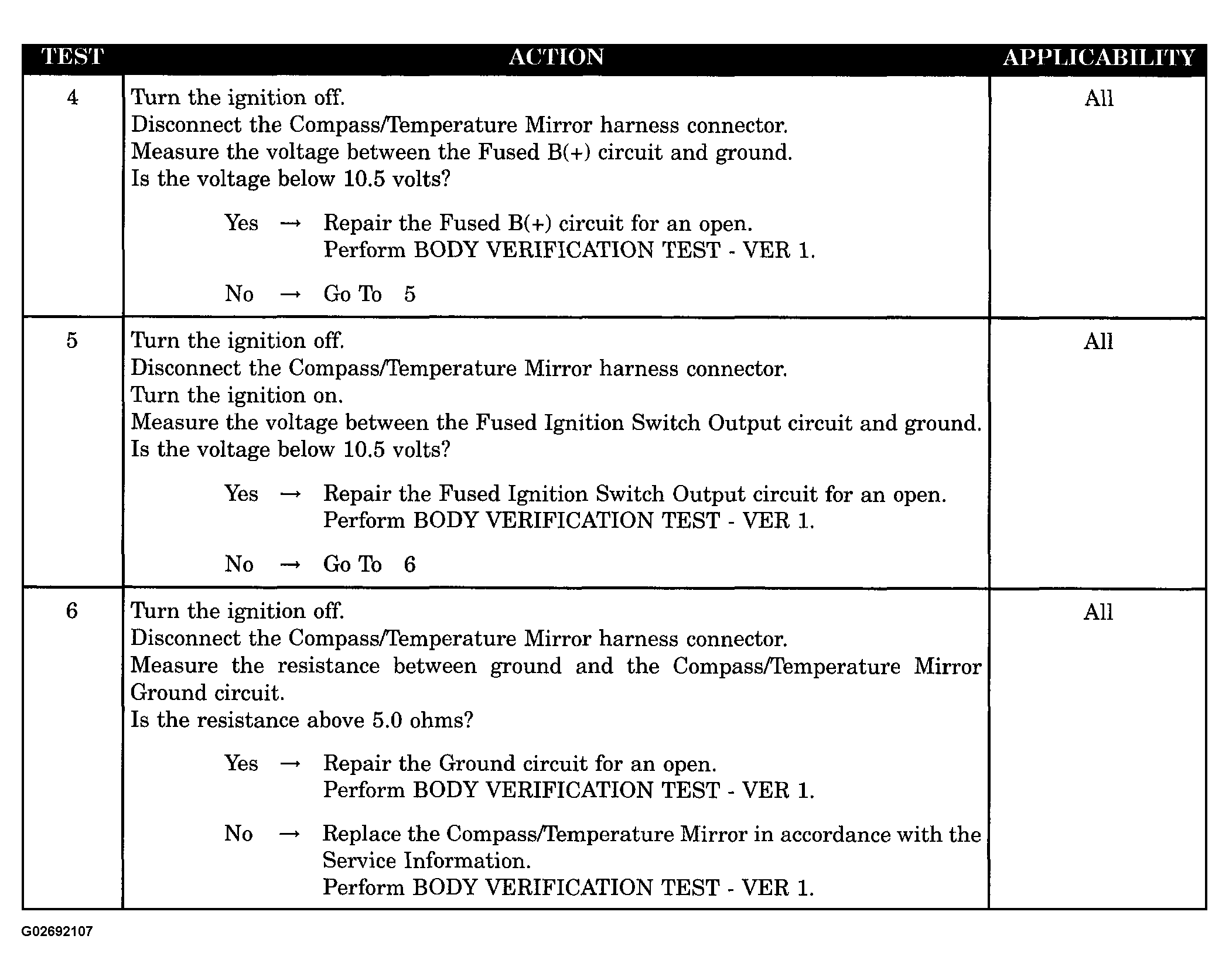

Fig 2: Testing Compass/Temperature Mirror Inoperative (2 Of 2)
G02692107Courtesy of DAIMLERCHRYSLER CORP.
