Symptom: *COMPASS/TEMPERATURE MIRROR DOES CALIBRATE: Testing

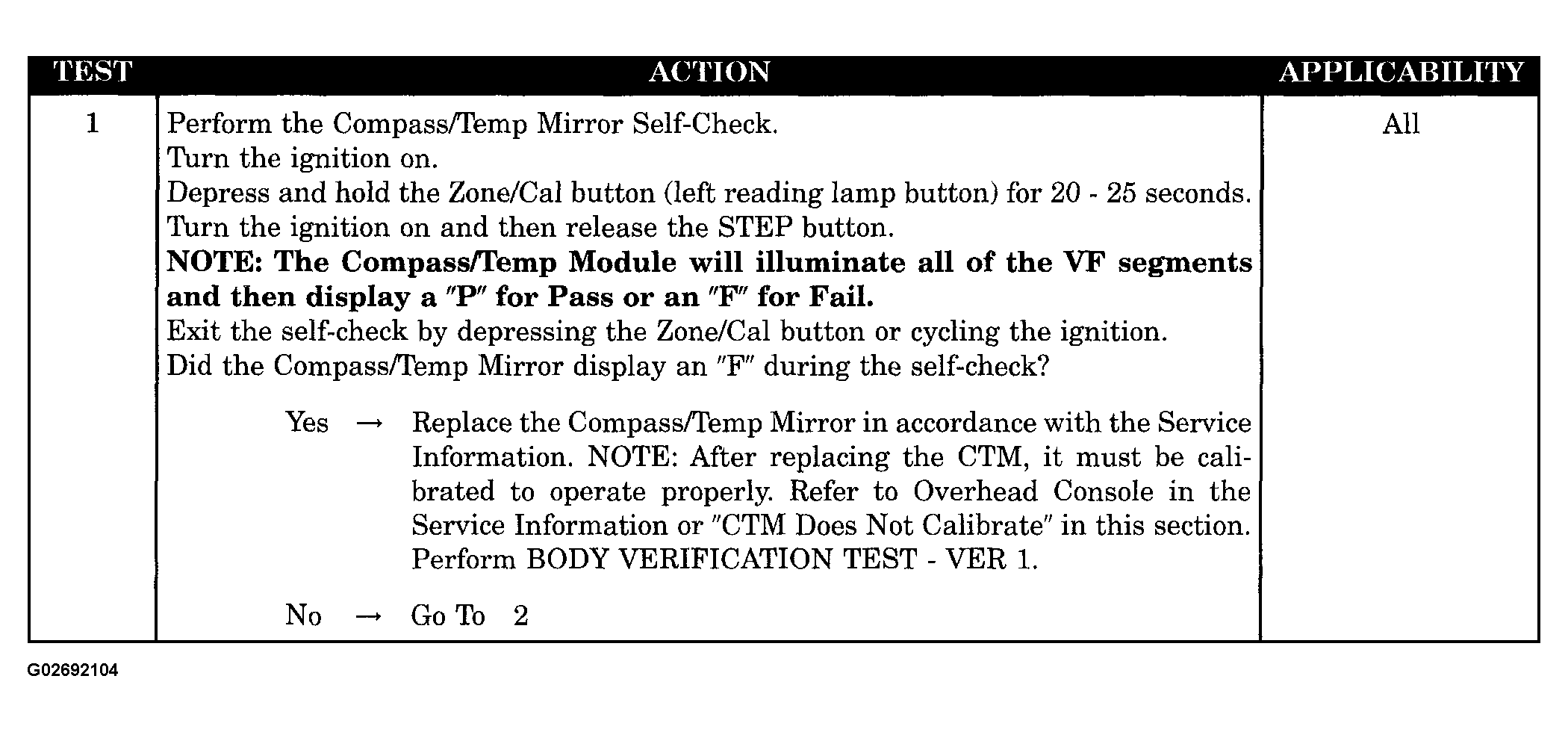

Fig 1: Testing Compass/Temperature Mirror Does Calibrate (1 Of 2)
G02692104Courtesy of DAIMLERCHRYSLER CORP.

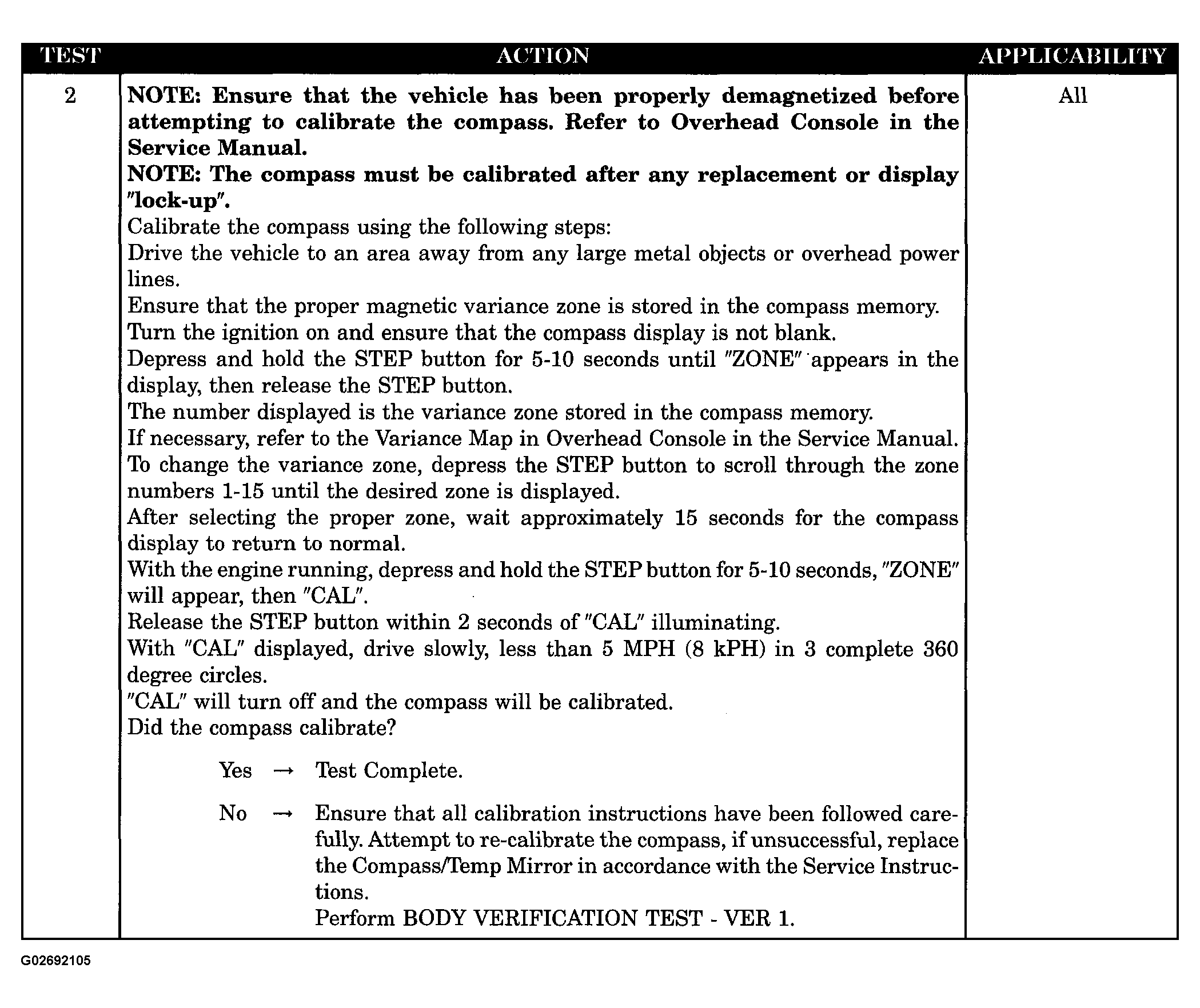

Fig 2: Testing Compass/Temperature Mirror Does Calibrate (2 Of 2)
G02692105Courtesy of DAIMLERCHRYSLER CORP.
