Symptom: NO RESPONSE FROM INSTRUMENT CLUSTER: Testing

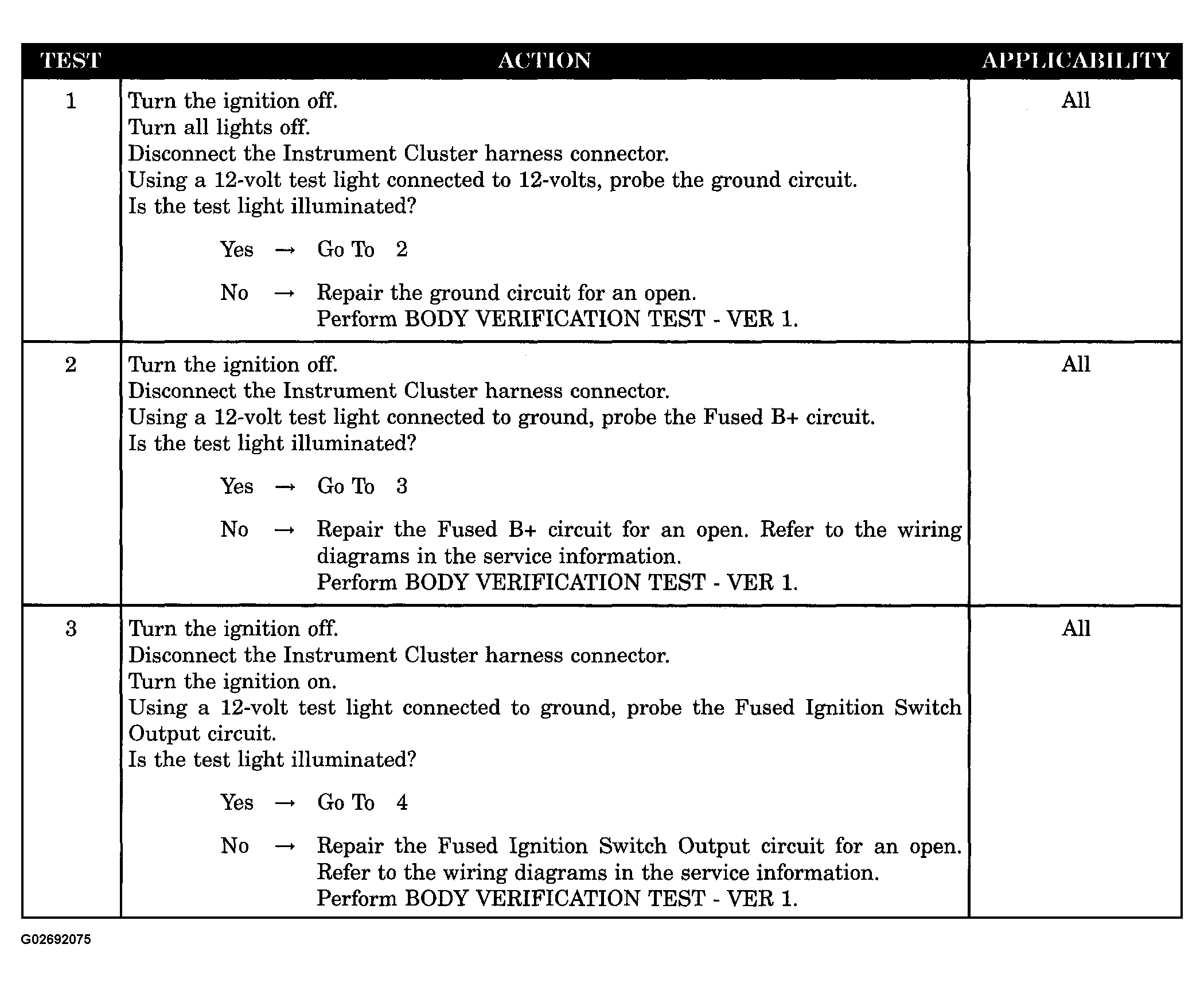

Fig 1: Testing No Response From Instrument Cluster (1 Of 2)
G02692075Courtesy of DAIMLERCHRYSLER CORP.

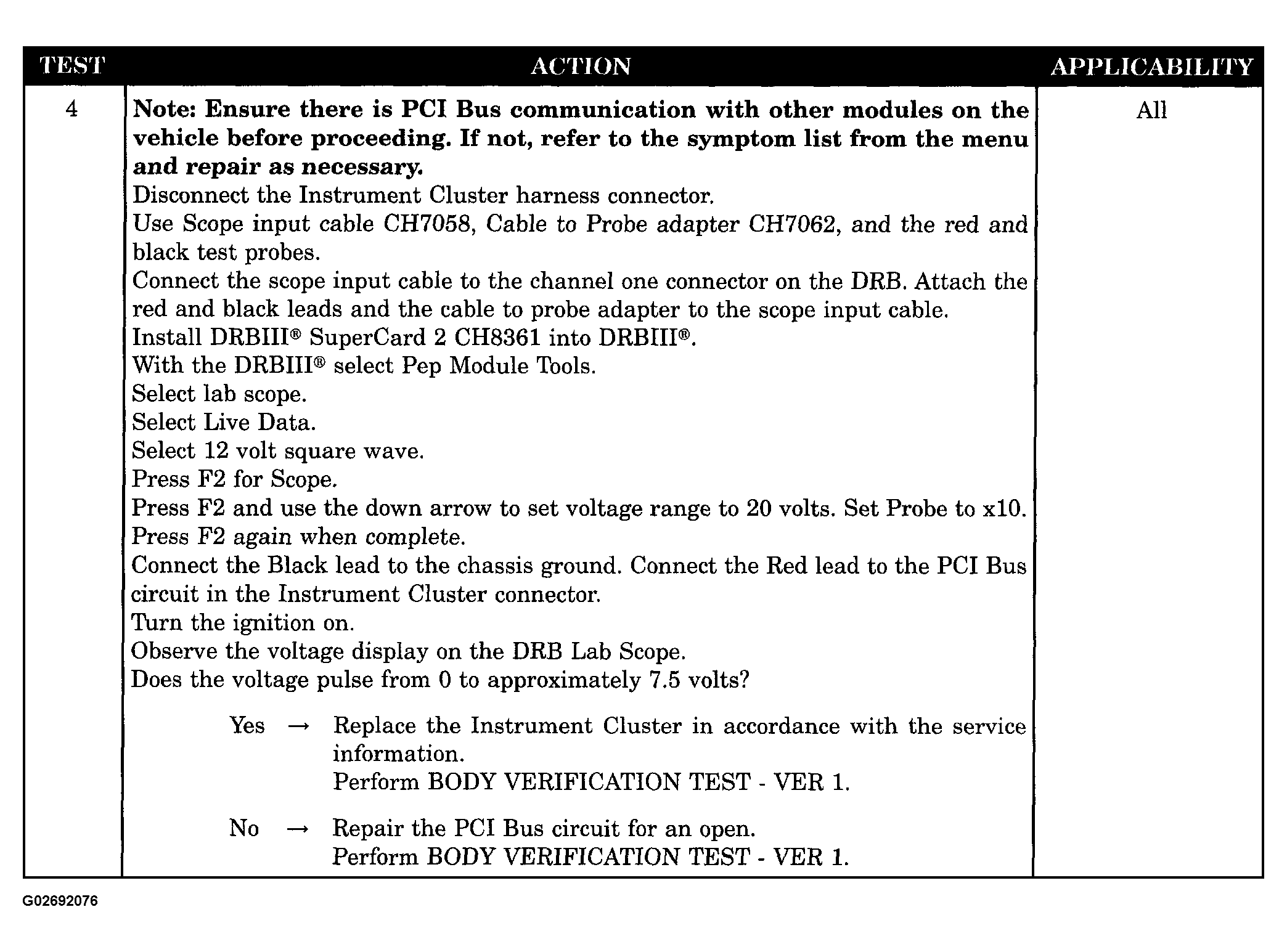

Fig 2: Testing No Response From Instrument Cluster (2 Of 2)
G02692076Courtesy of DAIMLERCHRYSLER CORP.
