Symptom: *NO RESPONSE FROM SENTRY KEY IMMOBILIZER MODULE: Testing

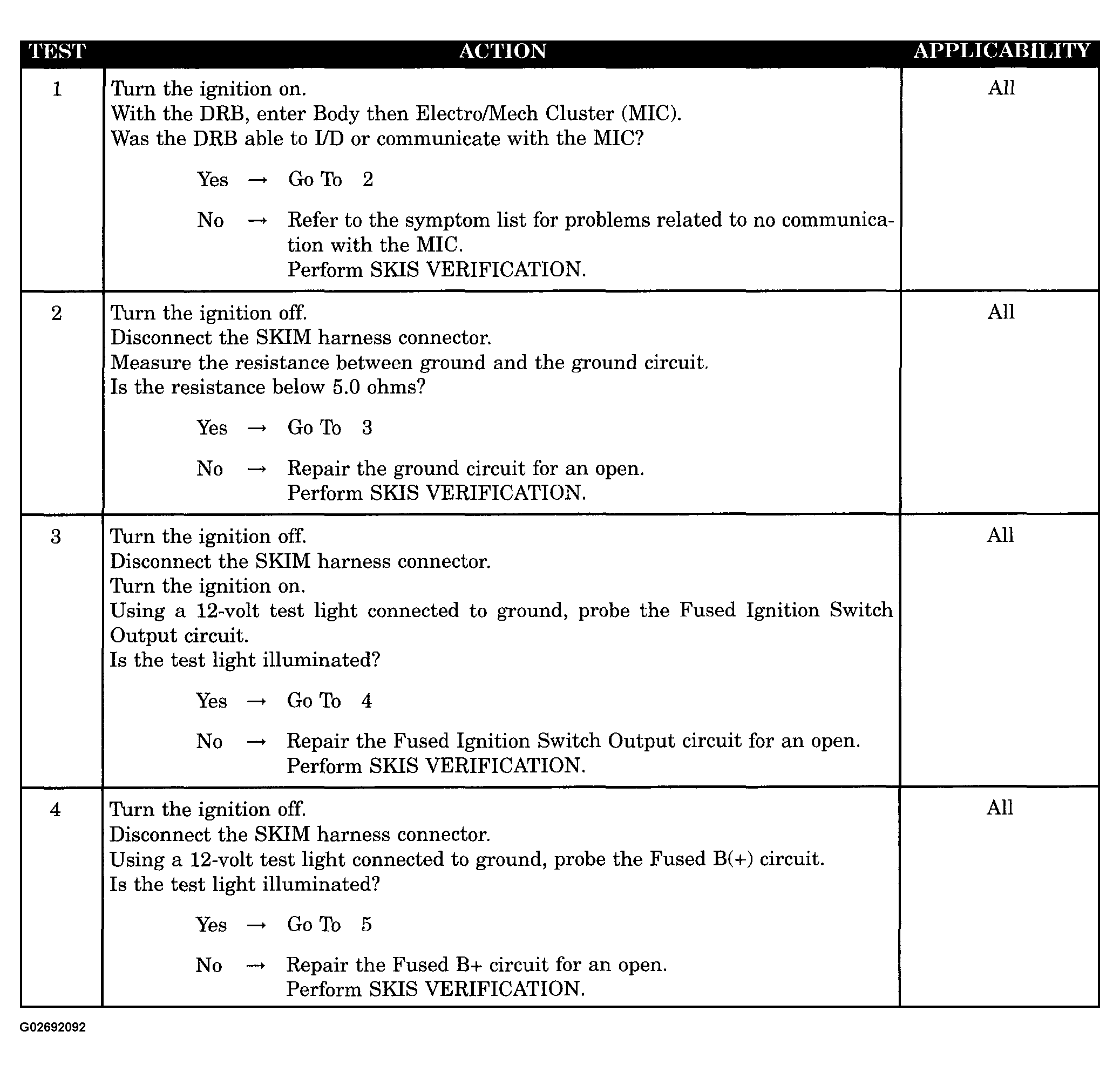

Fig 1: Testing No Response From Sentry Key Immobilizer Module (1 Of 2)
G02692092Courtesy of DAIMLERCHRYSLER CORP.

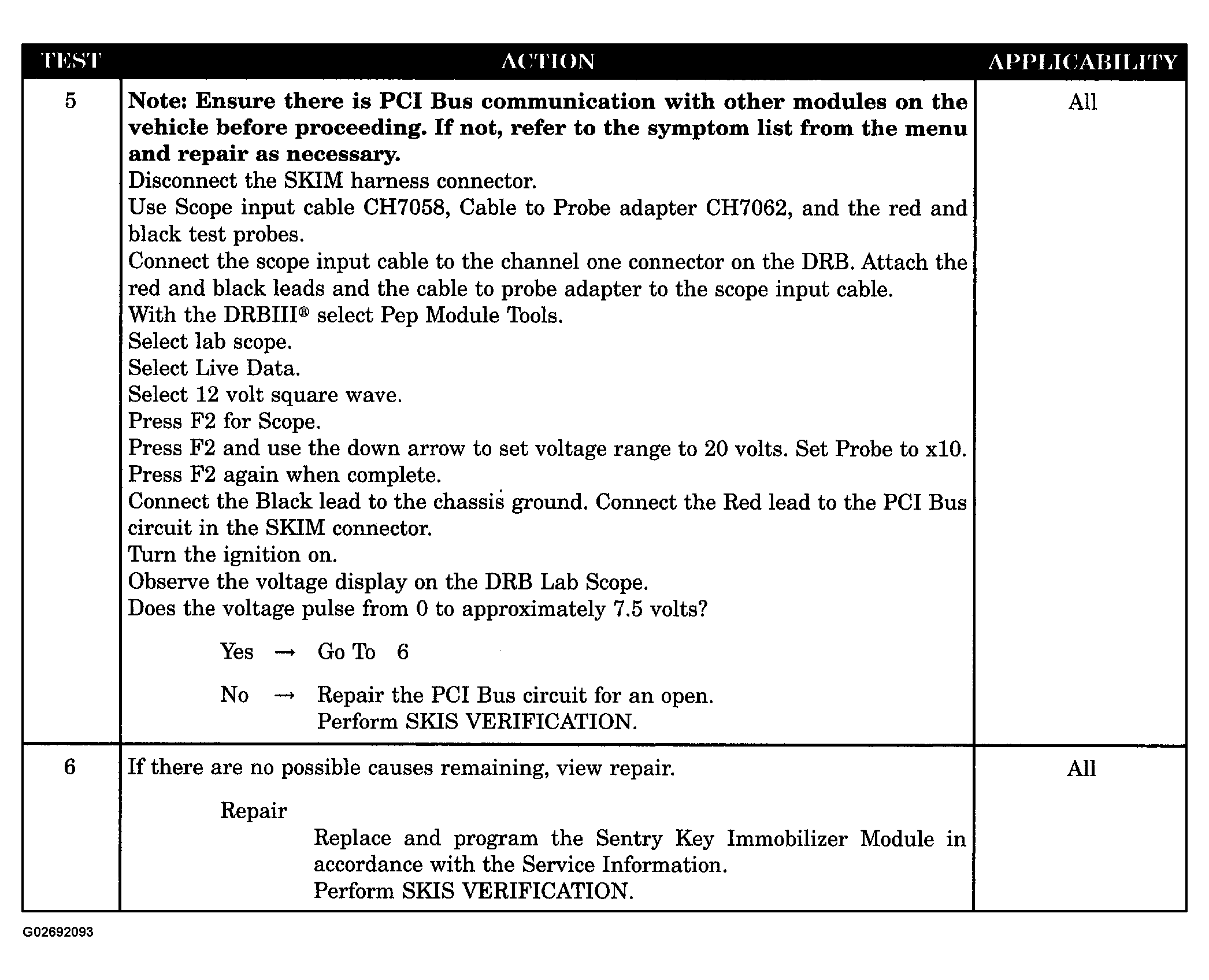

Fig 2: Testing No Response From Sentry Key Immobilizer Module (2 Of 2)
G02692093Courtesy of DAIMLERCHRYSLER CORP.
