Symptom: *NO RESPONSE FROM RIGHT SIACM: Testing

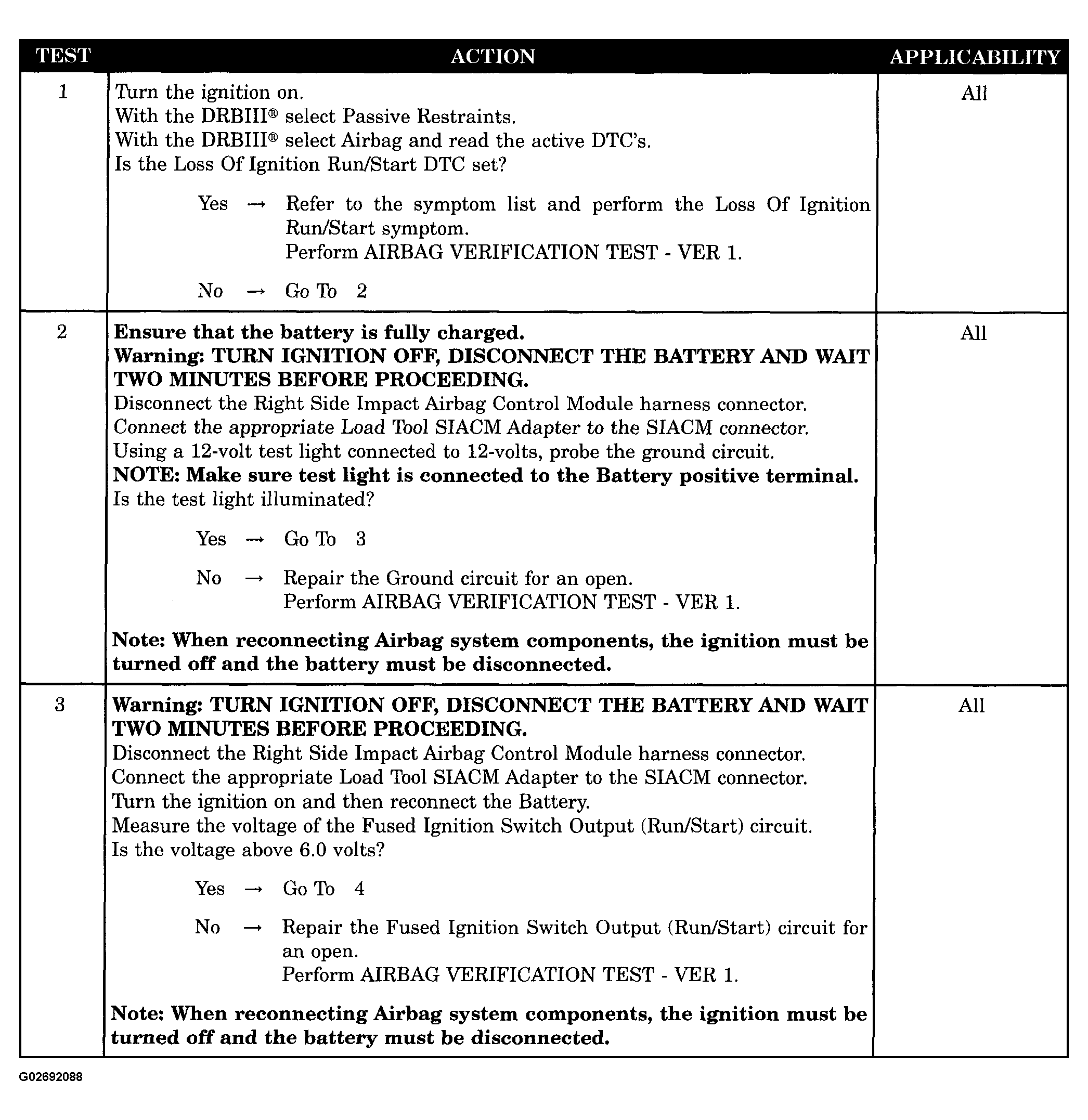

Fig 1: Testing No Response From Right SIACM (1 Of 2)
G02692088Courtesy of DAIMLERCHRYSLER CORP.

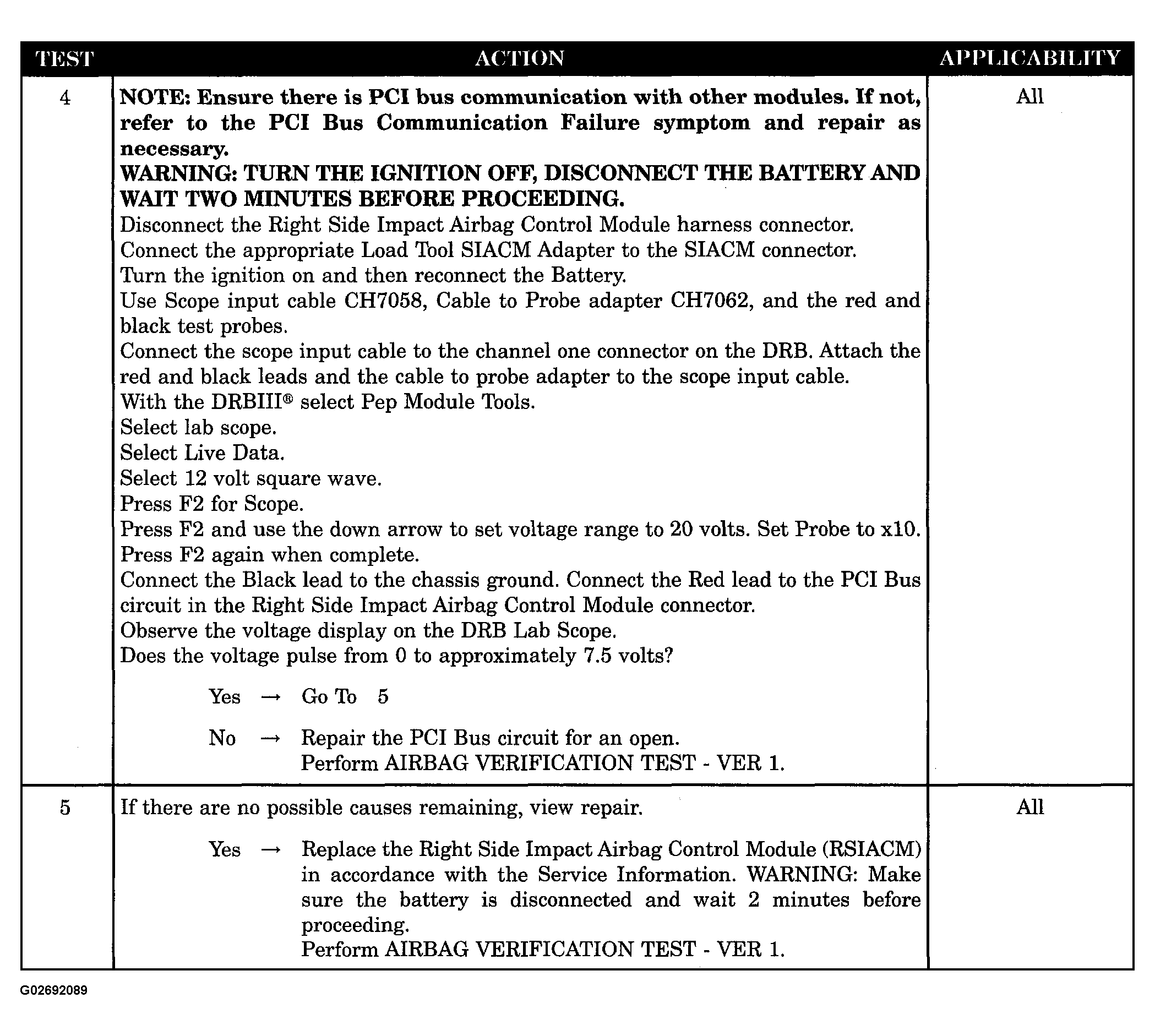

Fig 2: Testing No Response From Right SIACM (2 Of 2)
G02692089Courtesy of DAIMLERCHRYSLER CORP.
