Symptom: *NO RESPONSE FROM PCM (PCM SCI ONLY) - NGC: Testing

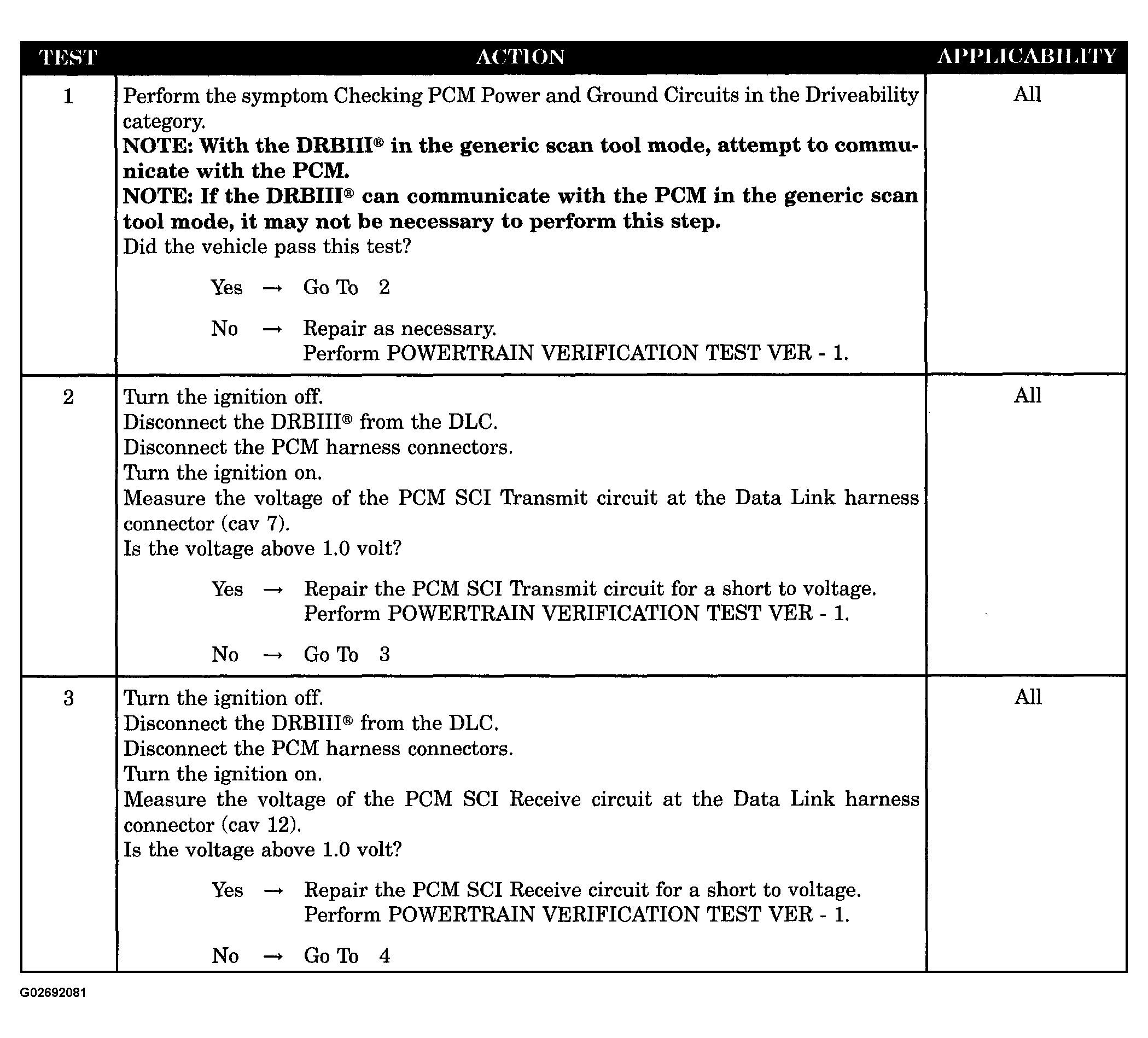

Fig 1: Testing No Response From PCM (PCM SCI Only) NGC (1 Of 3)
G02692081Courtesy of DAIMLERCHRYSLER CORP.

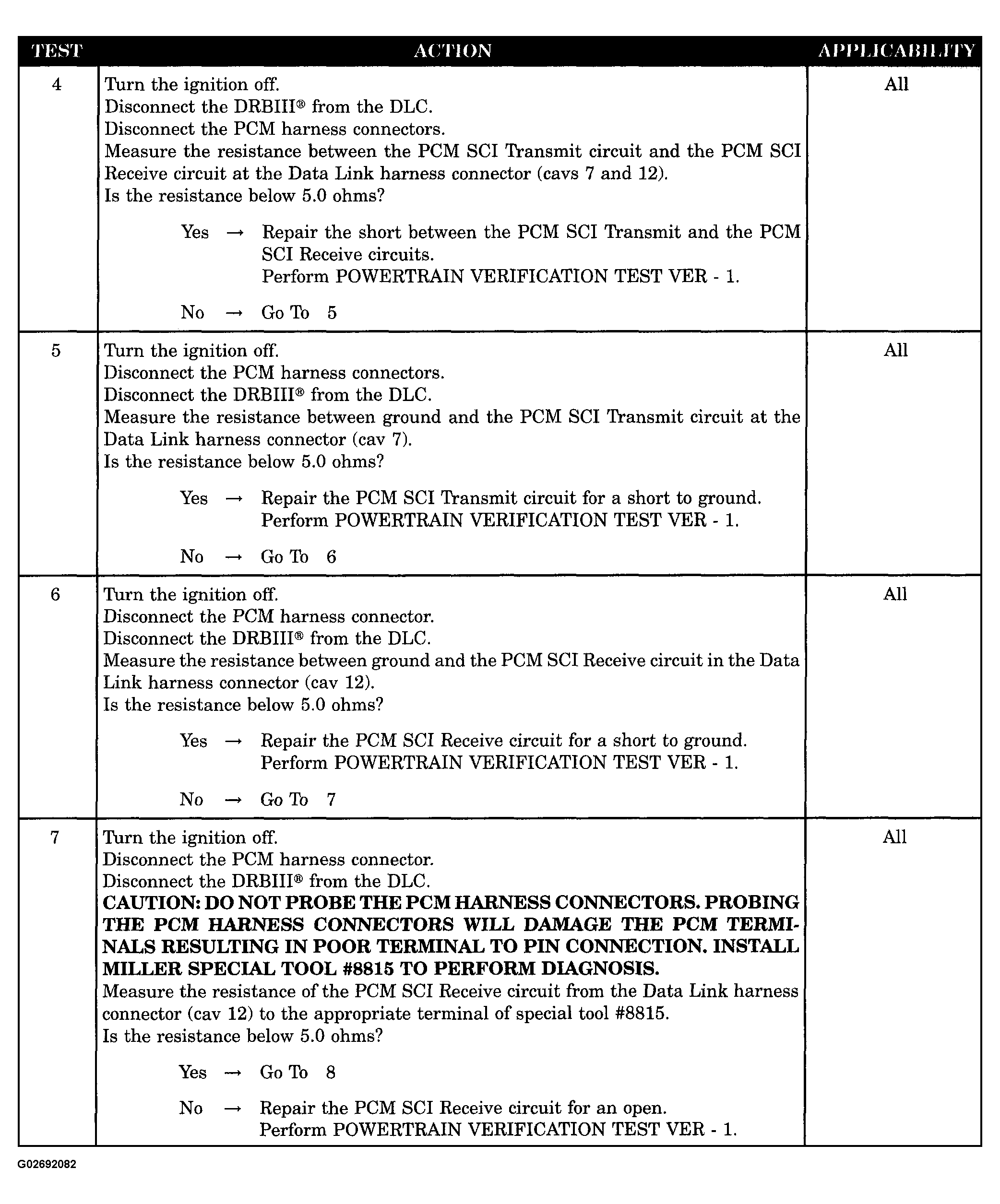

Fig 2: Testing No Response From PCM (PCM SCI Only) NGC (2 Of 3)
G02692082Courtesy of DAIMLERCHRYSLER CORP.

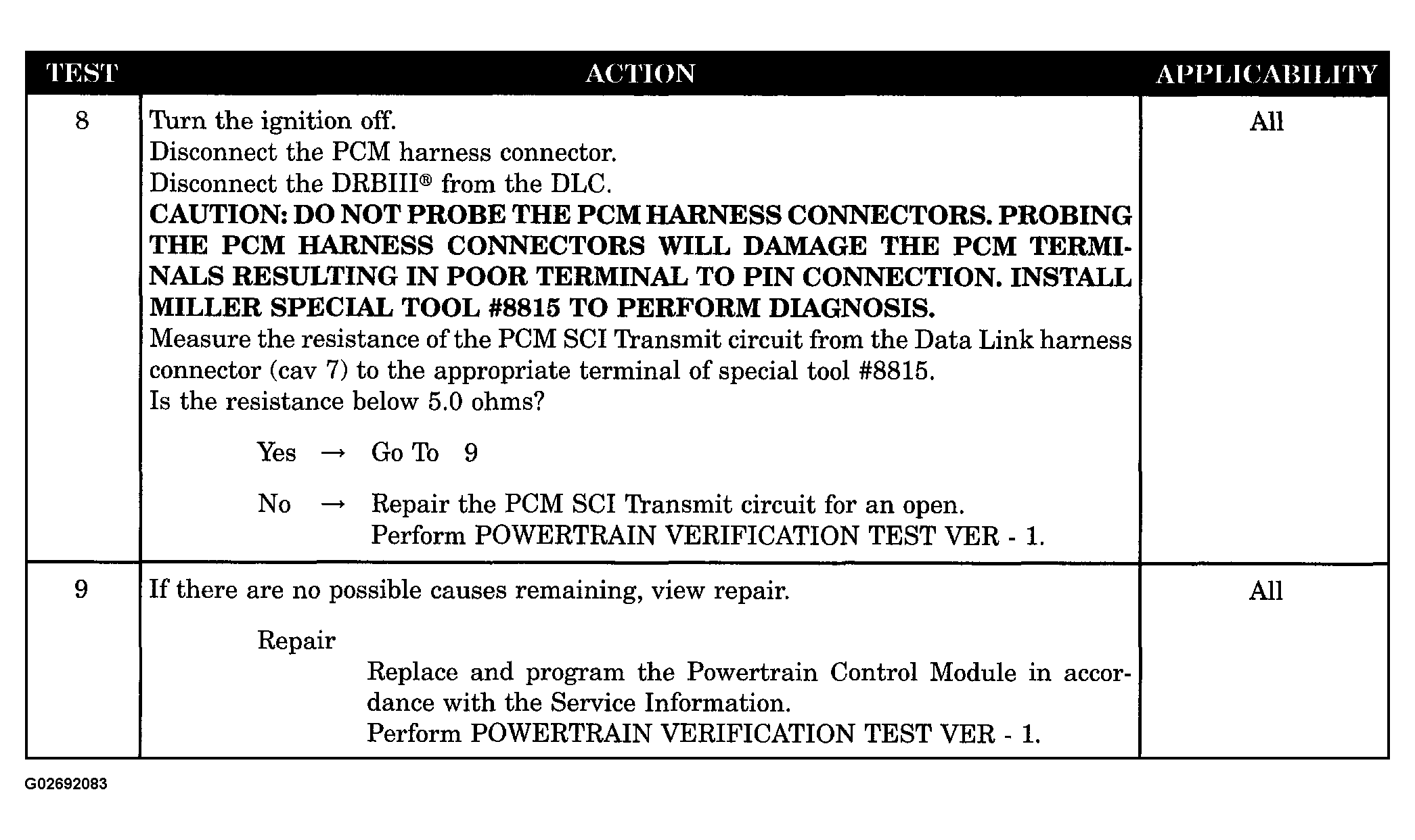

Fig 3: Testing No Response From PCM (PCM SCI Only) NGC (3 Of 3)
G02692083Courtesy of DAIMLERCHRYSLER CORP.
