Symptom: *NO RESPONSE FROM PCM (PCI BUS) - NGC: Testing

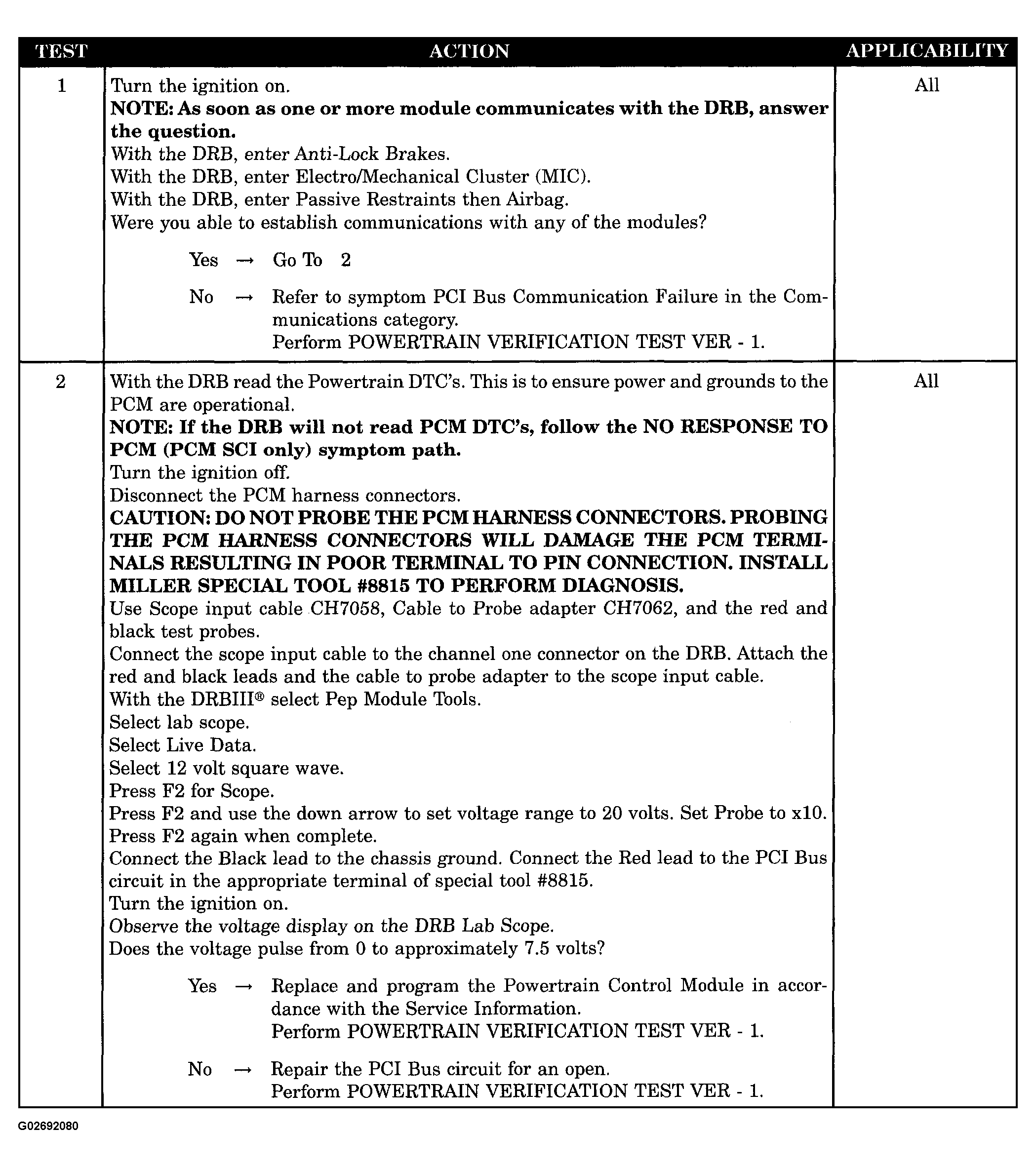

Fig 1: Testing No Response From PCM (PCI Bus) NGC

G02692080

Courtesy of DAIMLERCHRYSLER CORP.
