Home >> Dodge and Ram >> 2003 >> SX R/T >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Communication - Symptoms >> Symptom: *NO RESPONSE FROM PCM (PCI BUS) - 1.6L >> Testing

Symptom: *NO RESPONSE FROM PCM (PCI BUS) - 1.6L: Testing

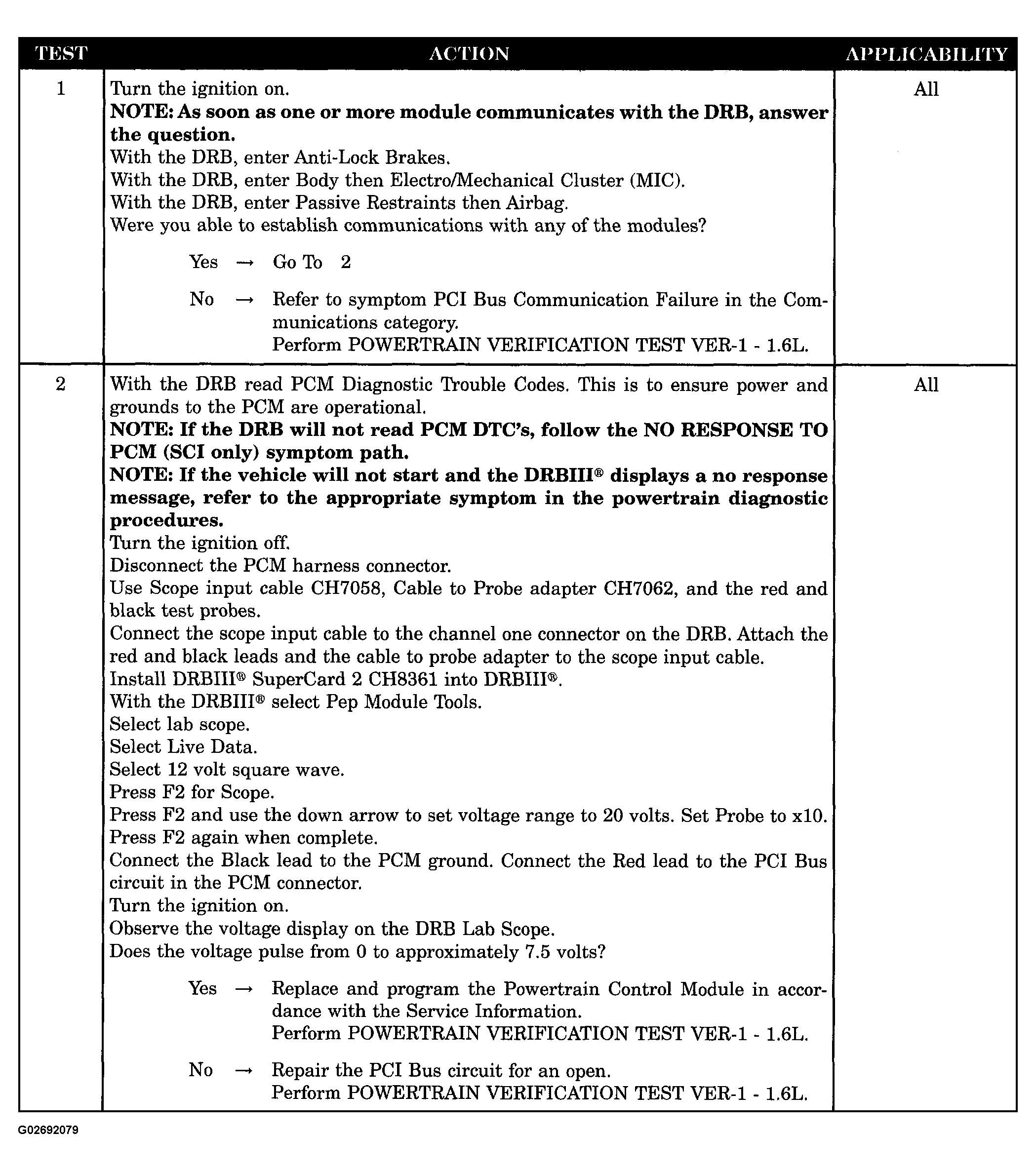

Fig 1: Testing No Response From PCM (PCI Bus) - 1.6L

G02692079

Courtesy of DAIMLERCHRYSLER CORP.
