Symptom: *NO RESPONSE FROM LEFT SIACM: Testing

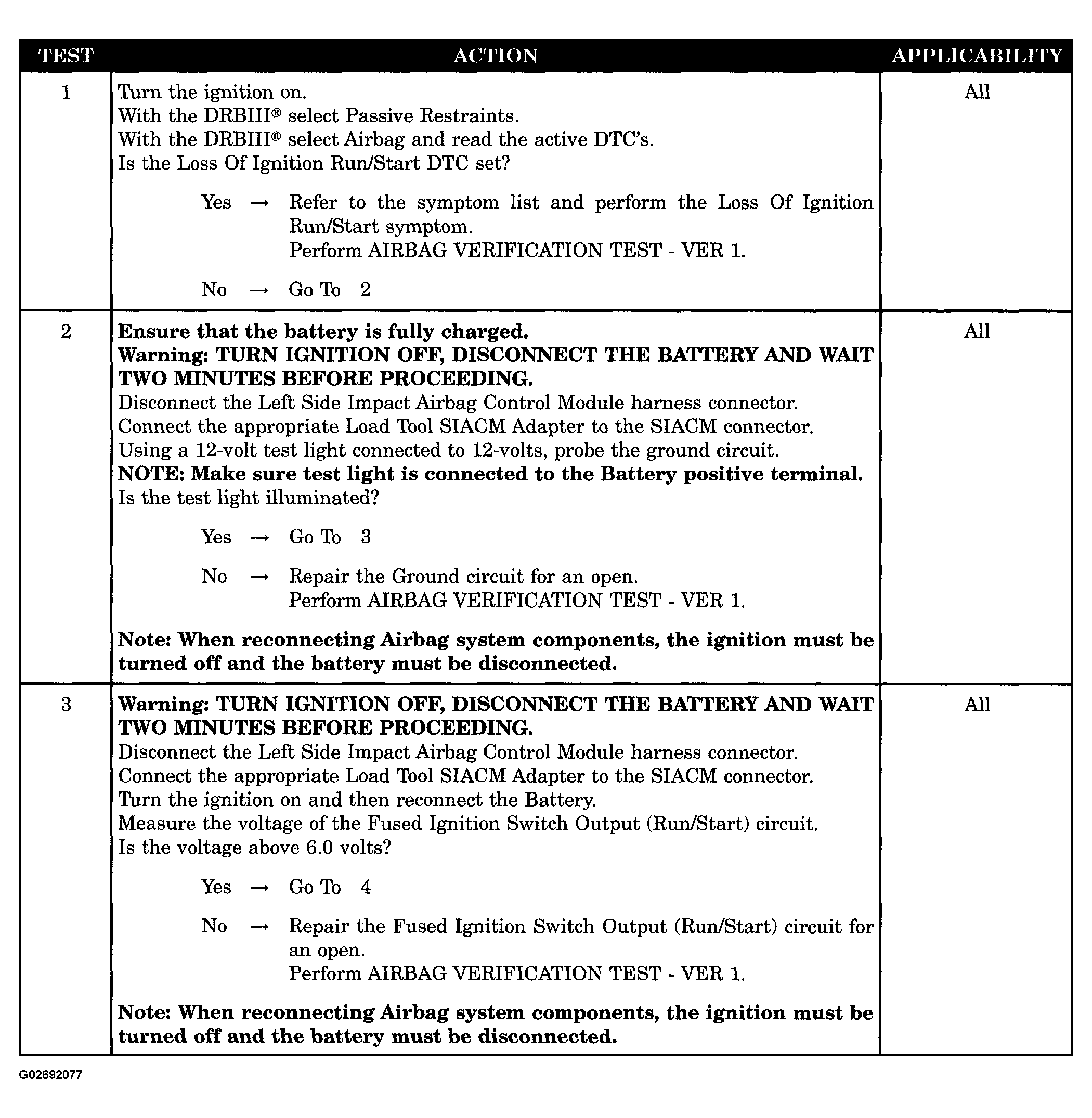

Fig 1: Testing No Response From Left SIACM (1 Of 2)
G02692077Courtesy of DAIMLERCHRYSLER CORP.

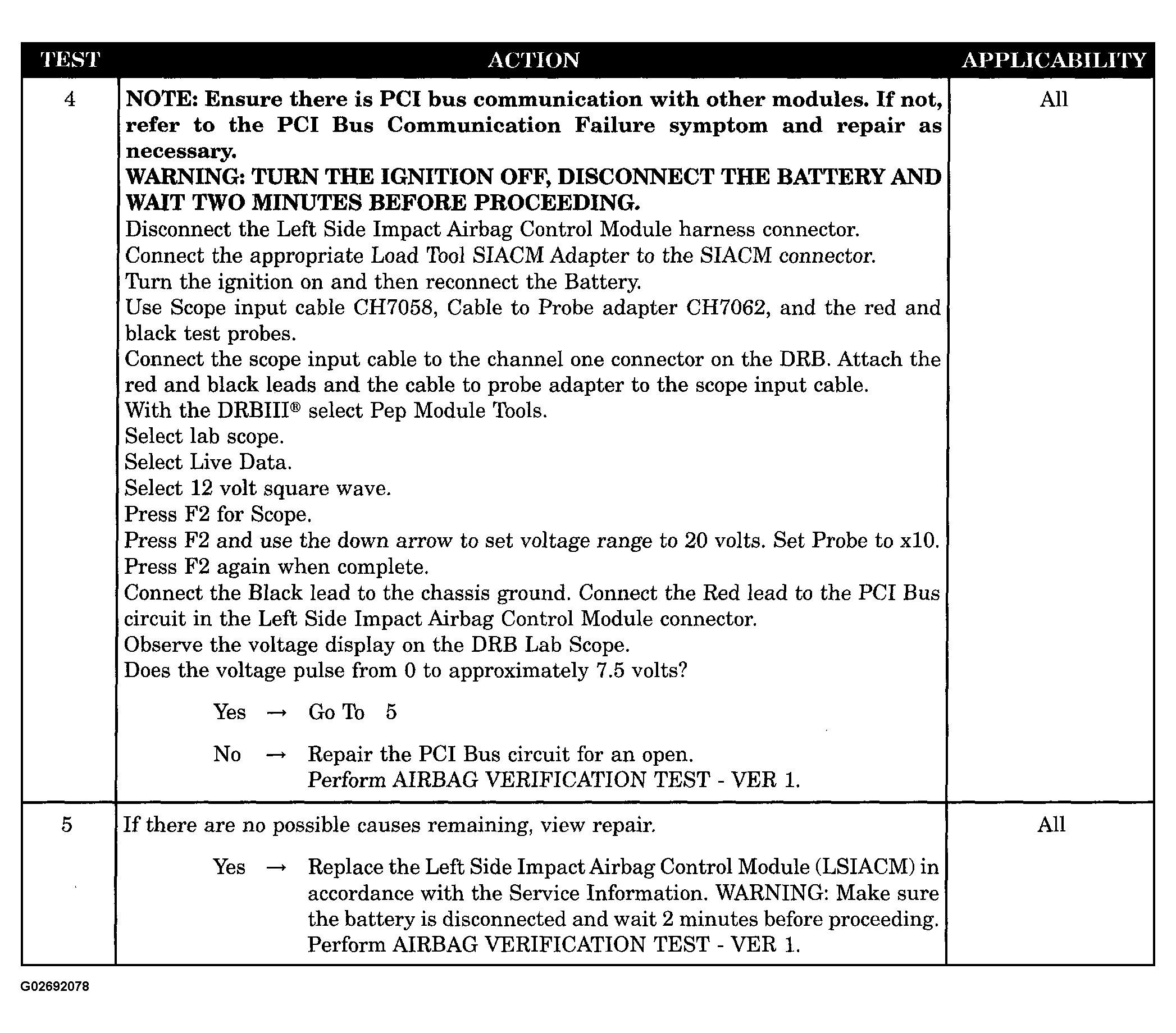

Fig 2: Testing No Response From Left SIACM (2 Of 2)
G02692078Courtesy of DAIMLERCHRYSLER CORP.
