Symptom: *NO RESPONSE FROM CONTROLLER ANTILOCK BRAKE: Testing

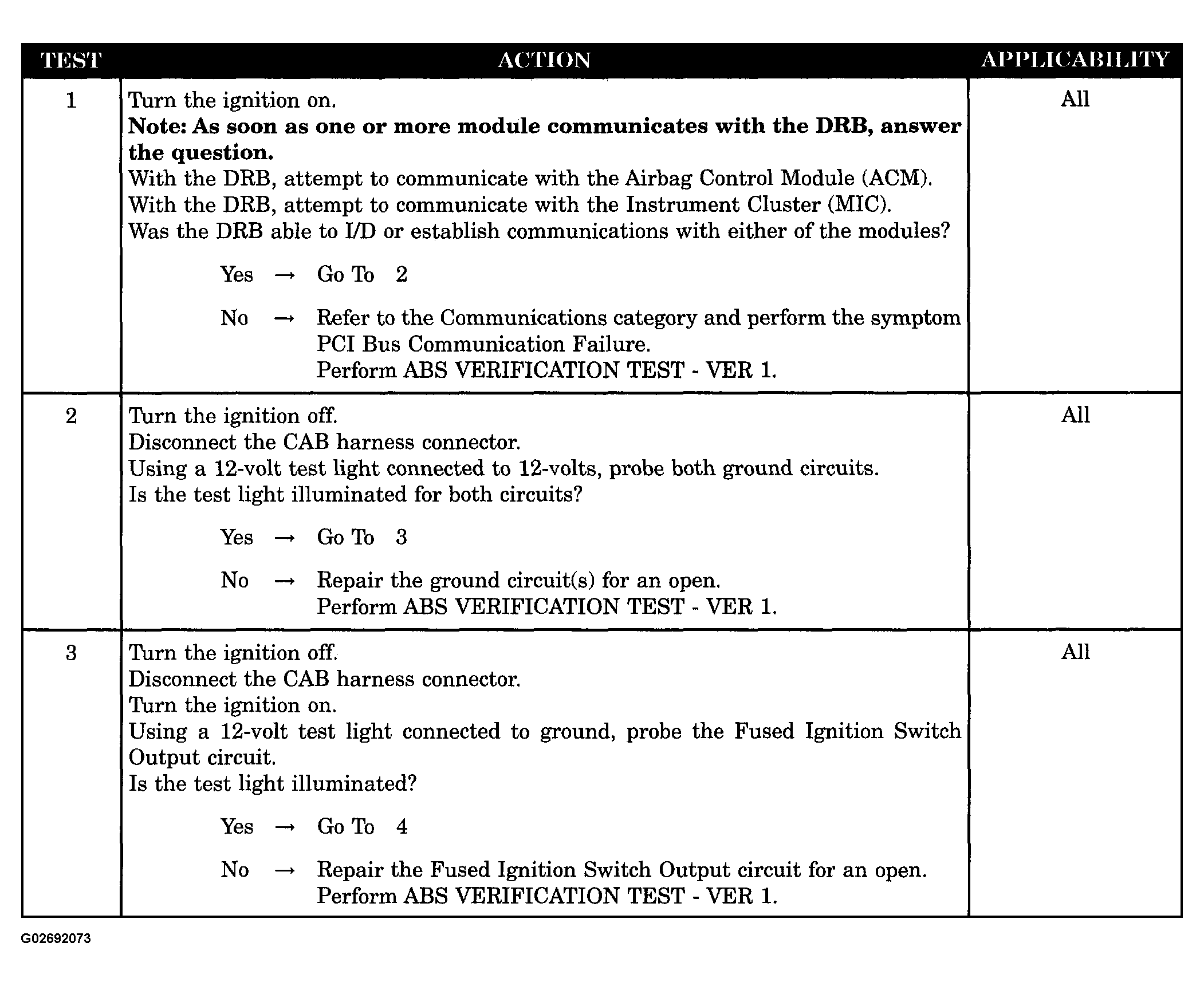

Fig 1: Testing No Response From Controller Antilock Brake (1 Of 2)
G02692073Courtesy of DAIMLERCHRYSLER CORP.

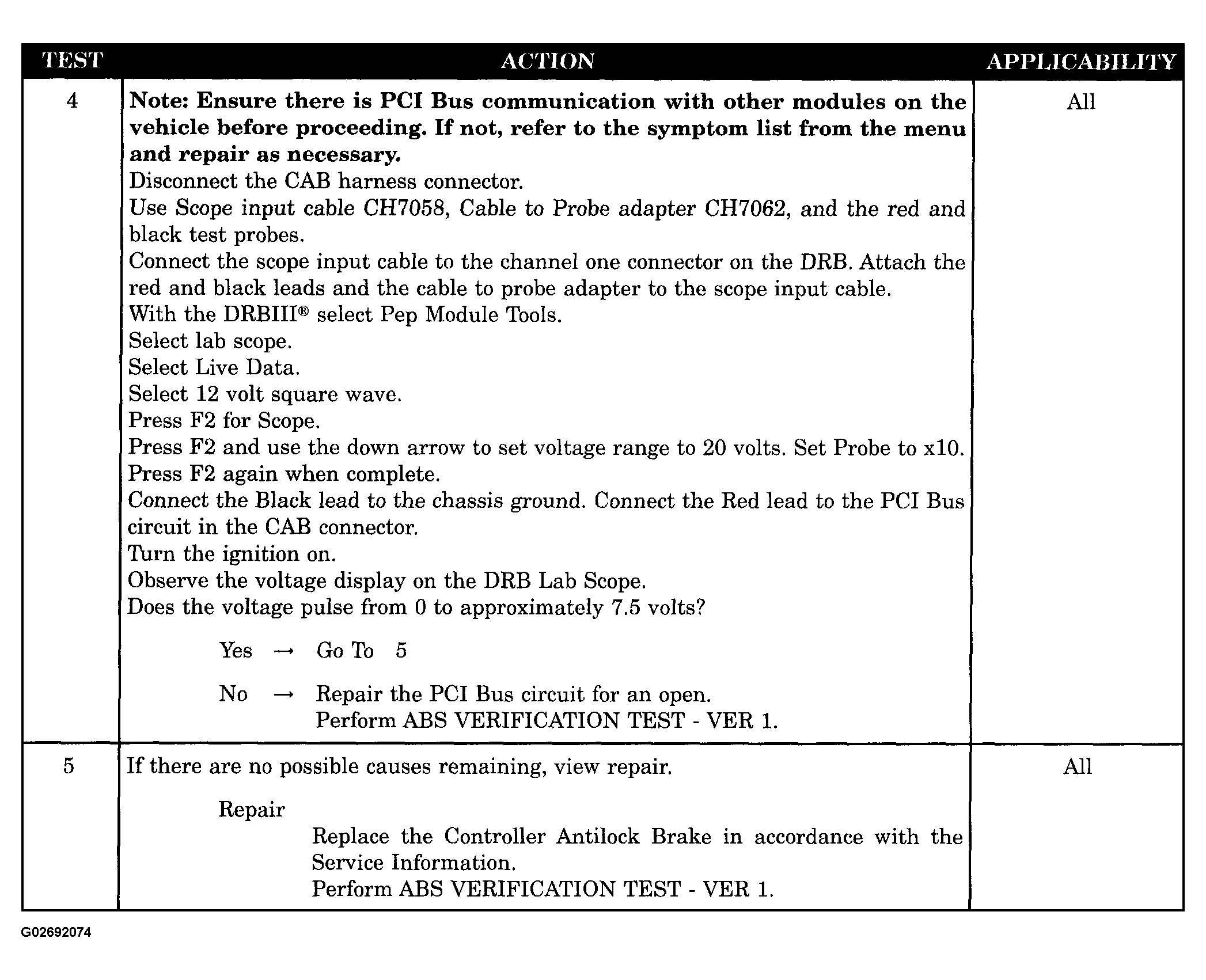

Fig 2: Testing No Response From Controller Antilock Brake (2 Of 2)
G02692074Courtesy of DAIMLERCHRYSLER CORP.
