Symptom: *NO RESPONSE FROM COMPASS/TEMPERATURE MIRROR: Testing

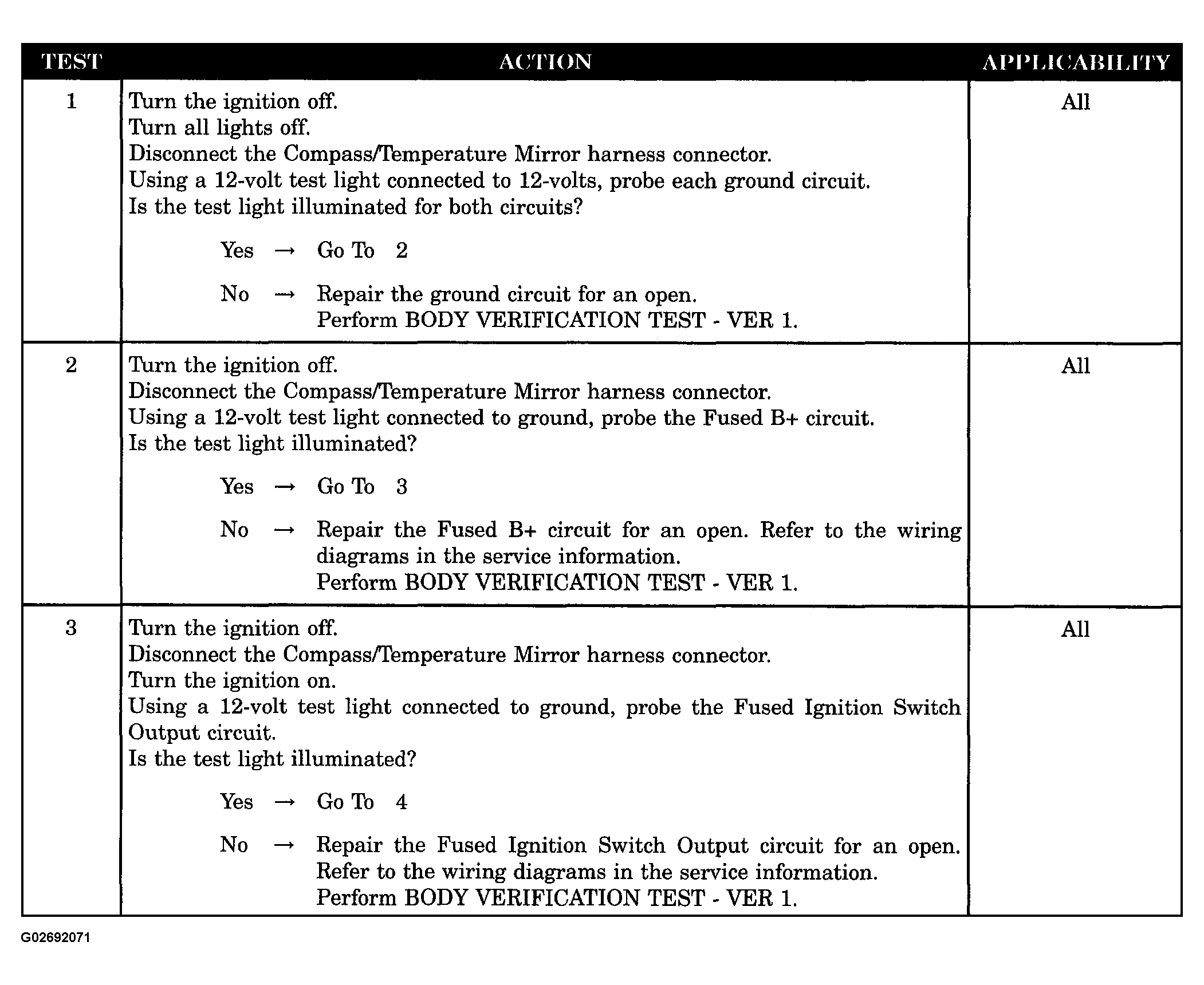

Fig 1: Testing No Response From Compass/Temperature Mirror (1 Of 2)
G02692071Courtesy of DAIMLERCHRYSLER CORP.

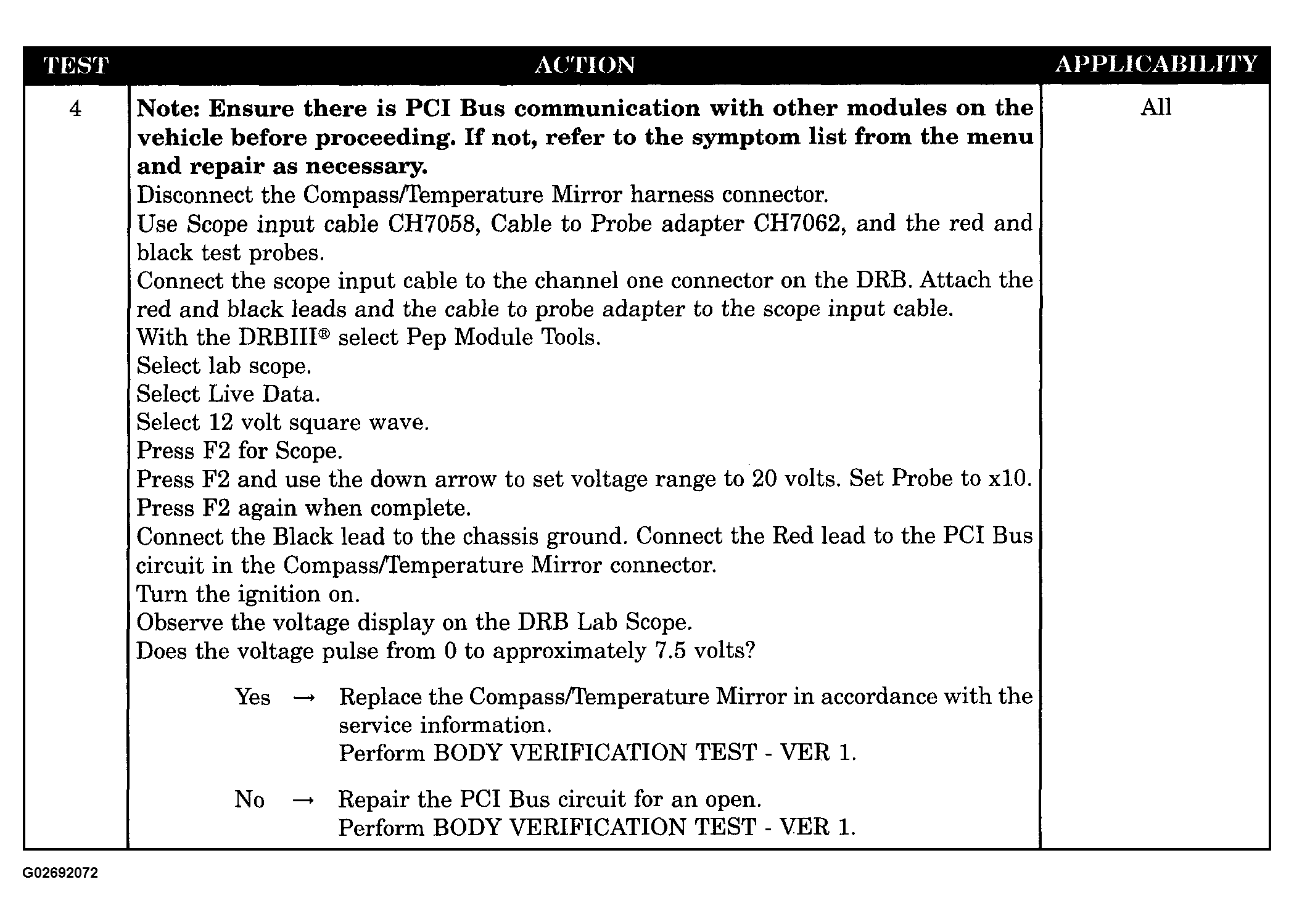

Fig 2: Testing No Response From Compass/Temperature Mirror (2 Of 2)
G02692072Courtesy of DAIMLERCHRYSLER CORP.
