Symptom: ALL OUTPUTS SHORT: Testing

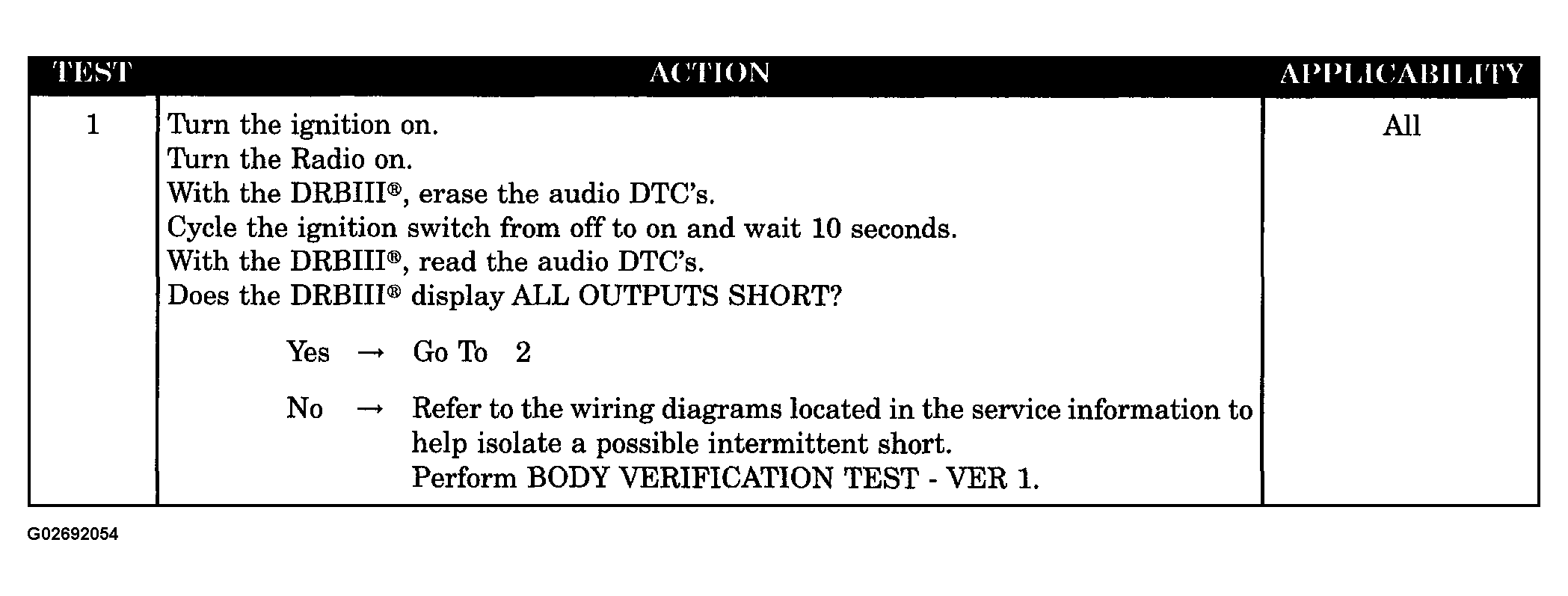

Fig 1: Testing All Outputs Short (1 Of 3)
G02692054Courtesy of DAIMLERCHRYSLER CORP.

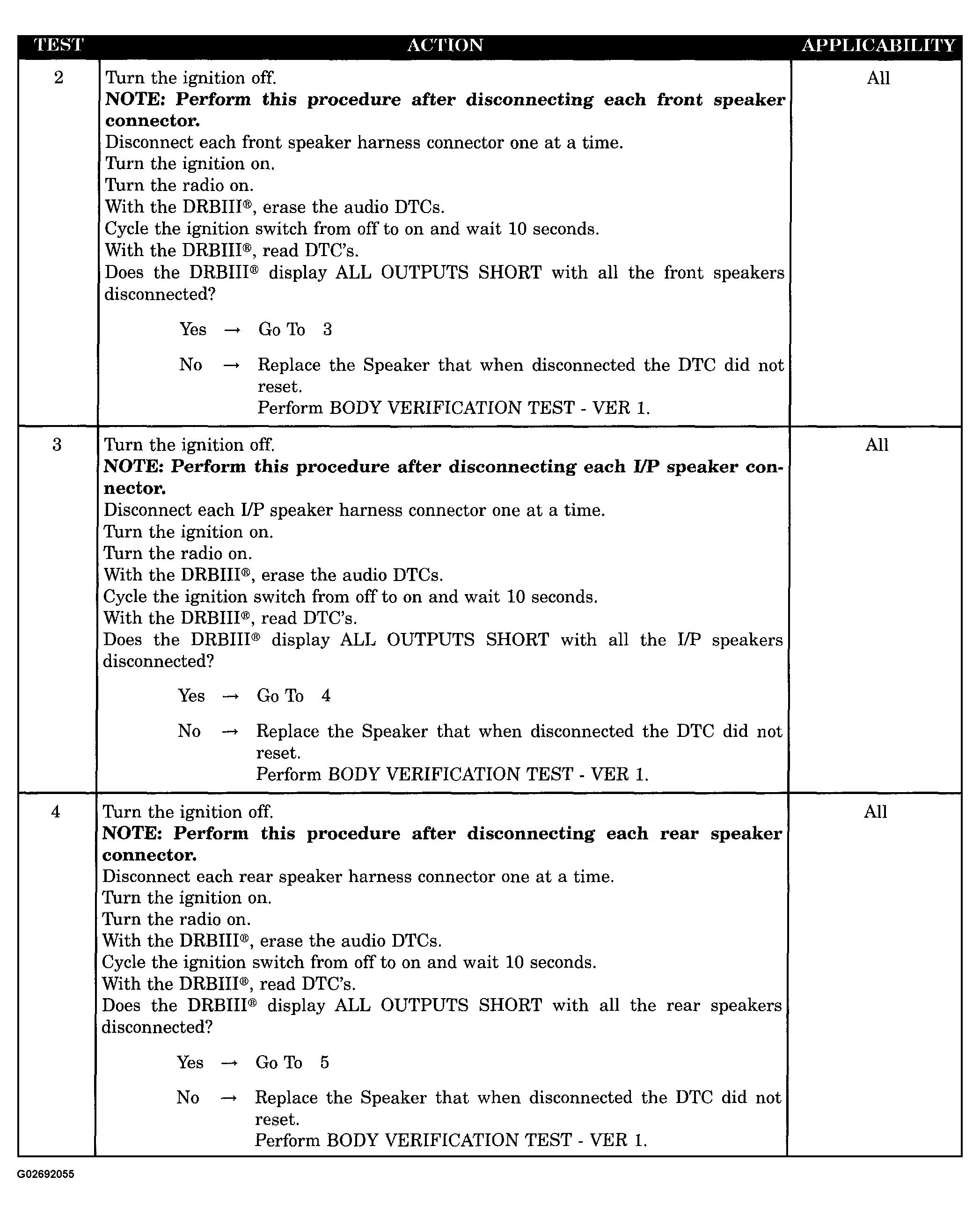

Fig 2: Testing All Outputs Short (2 Of 3)
G02692055Courtesy of DAIMLERCHRYSLER CORP.

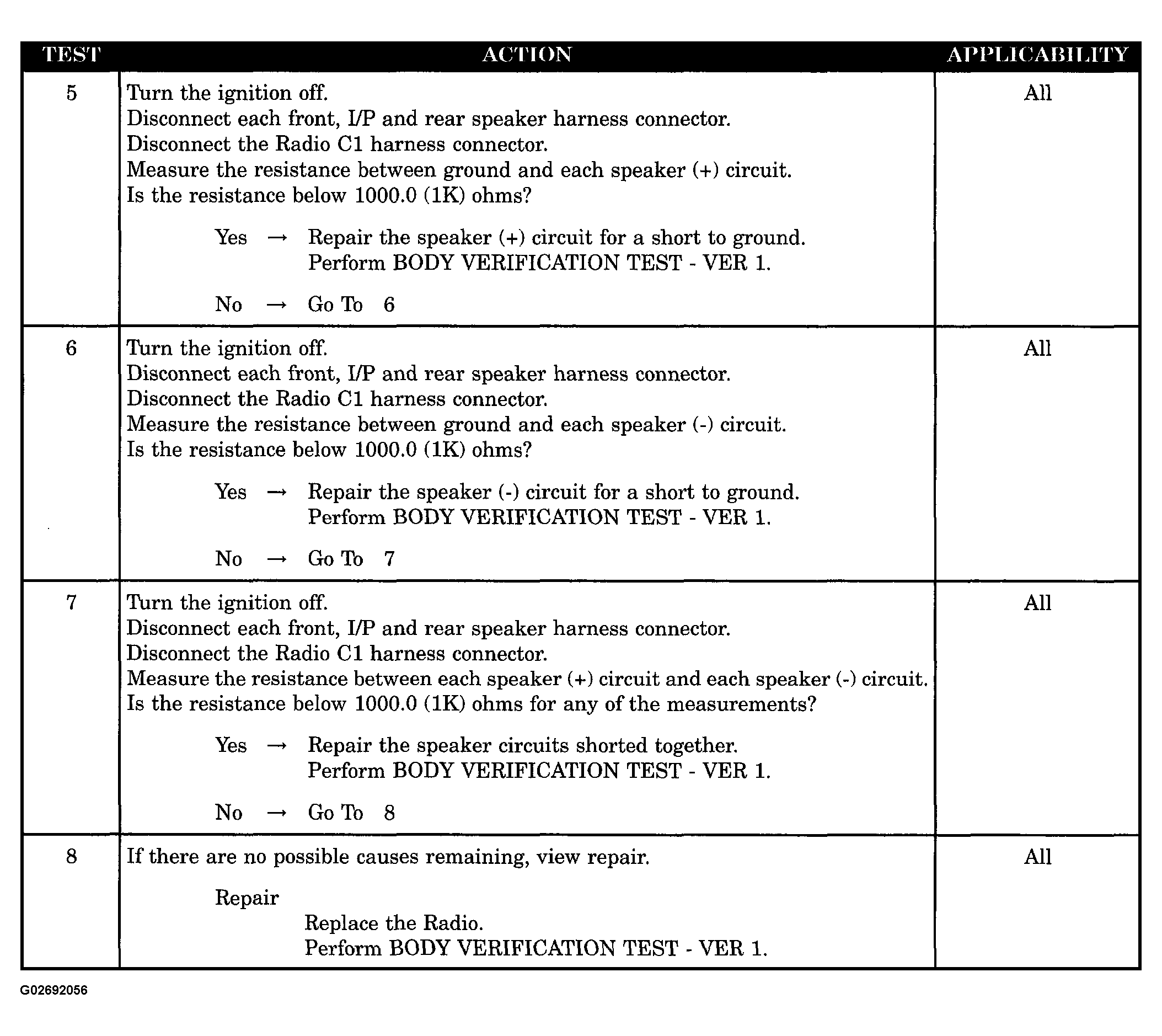

Fig 3: Testing All Outputs Short (3 Of 3)
G02692056Courtesy of DAIMLERCHRYSLER CORP.
