Symptom: SEAT SQUIB SHORT TO GROUND: Testing

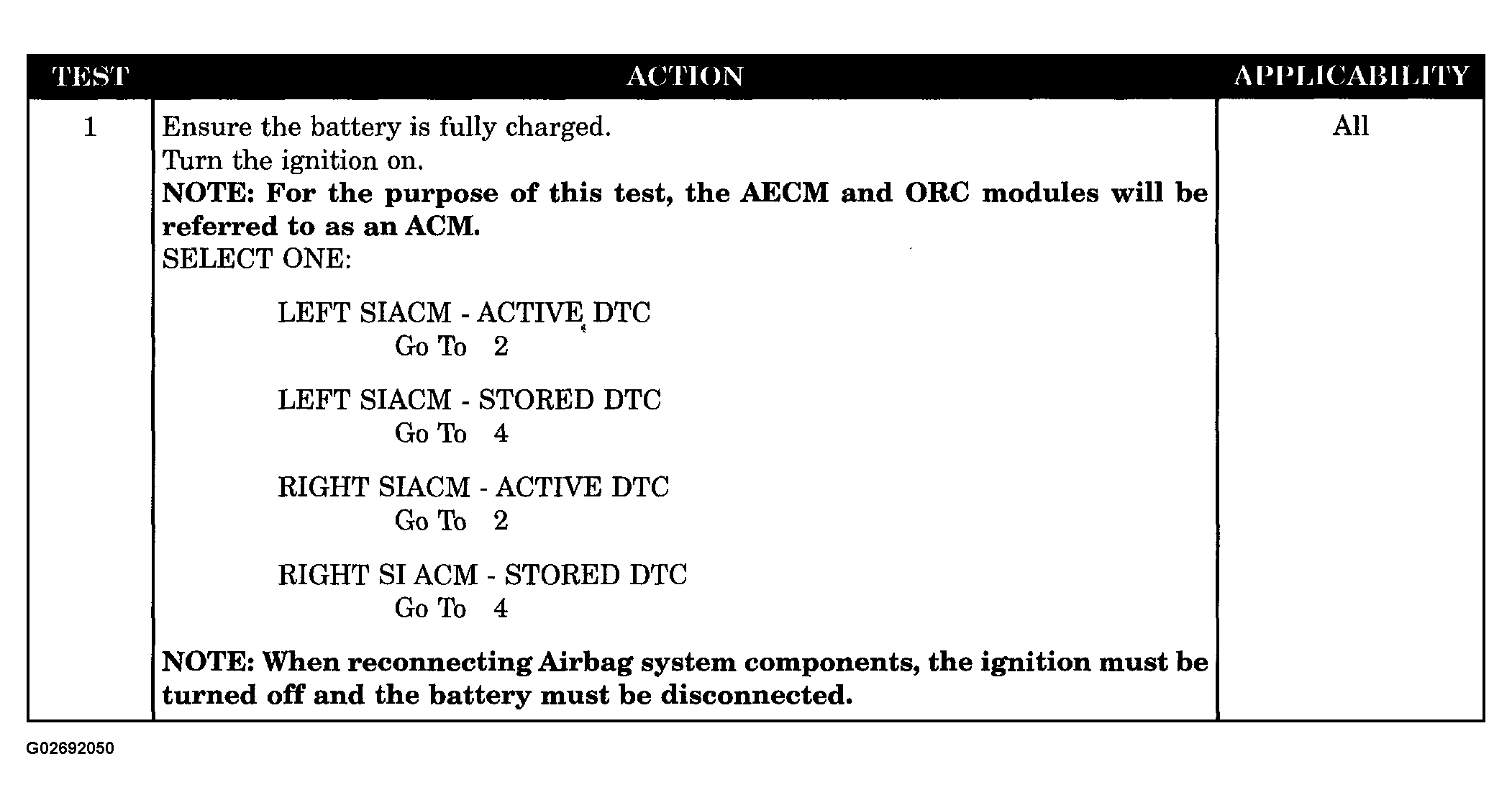

Fig 1: Testing Seat Squib Short To Ground (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

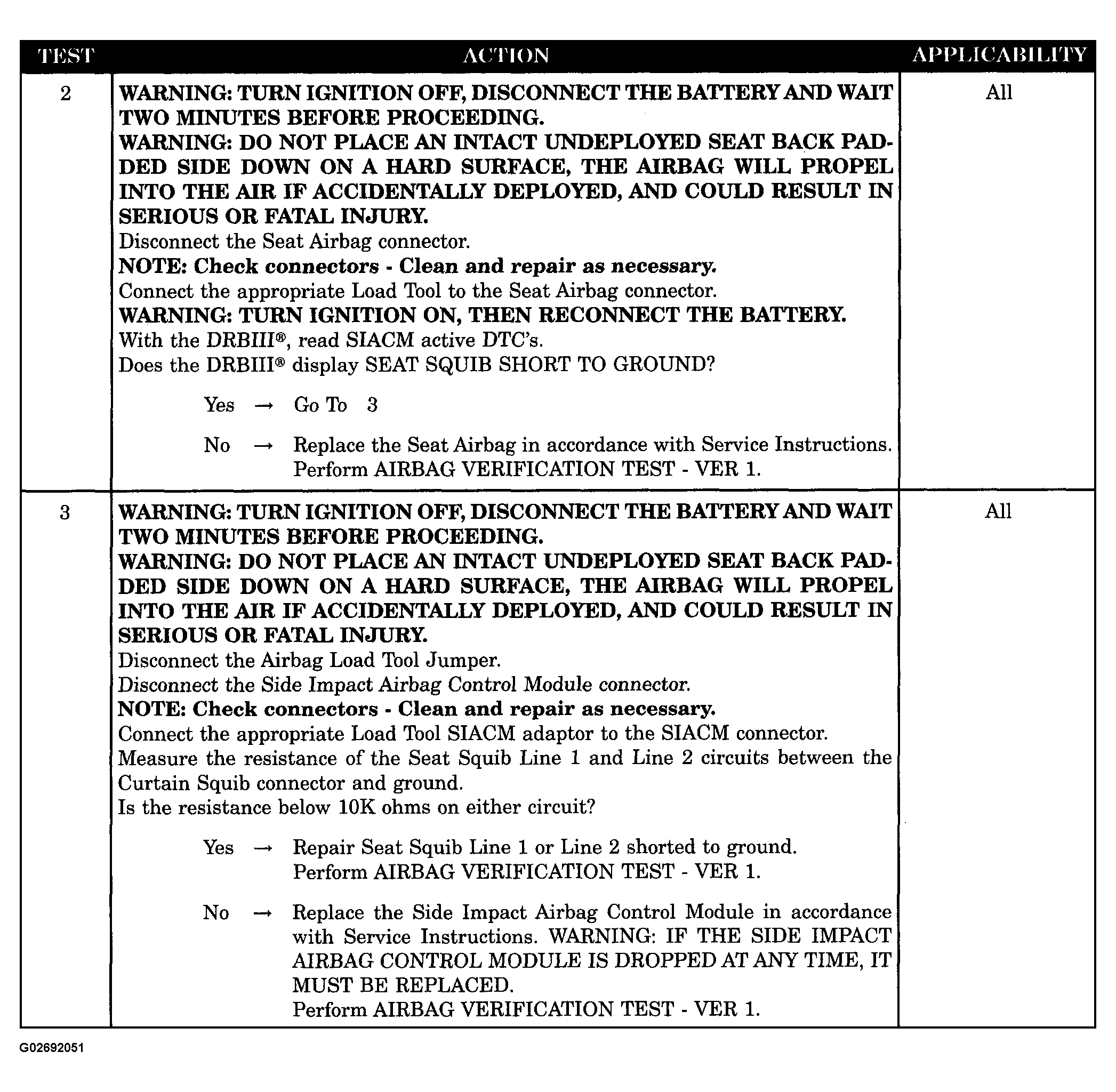

Fig 2: Testing Seat Squib Short To Ground (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

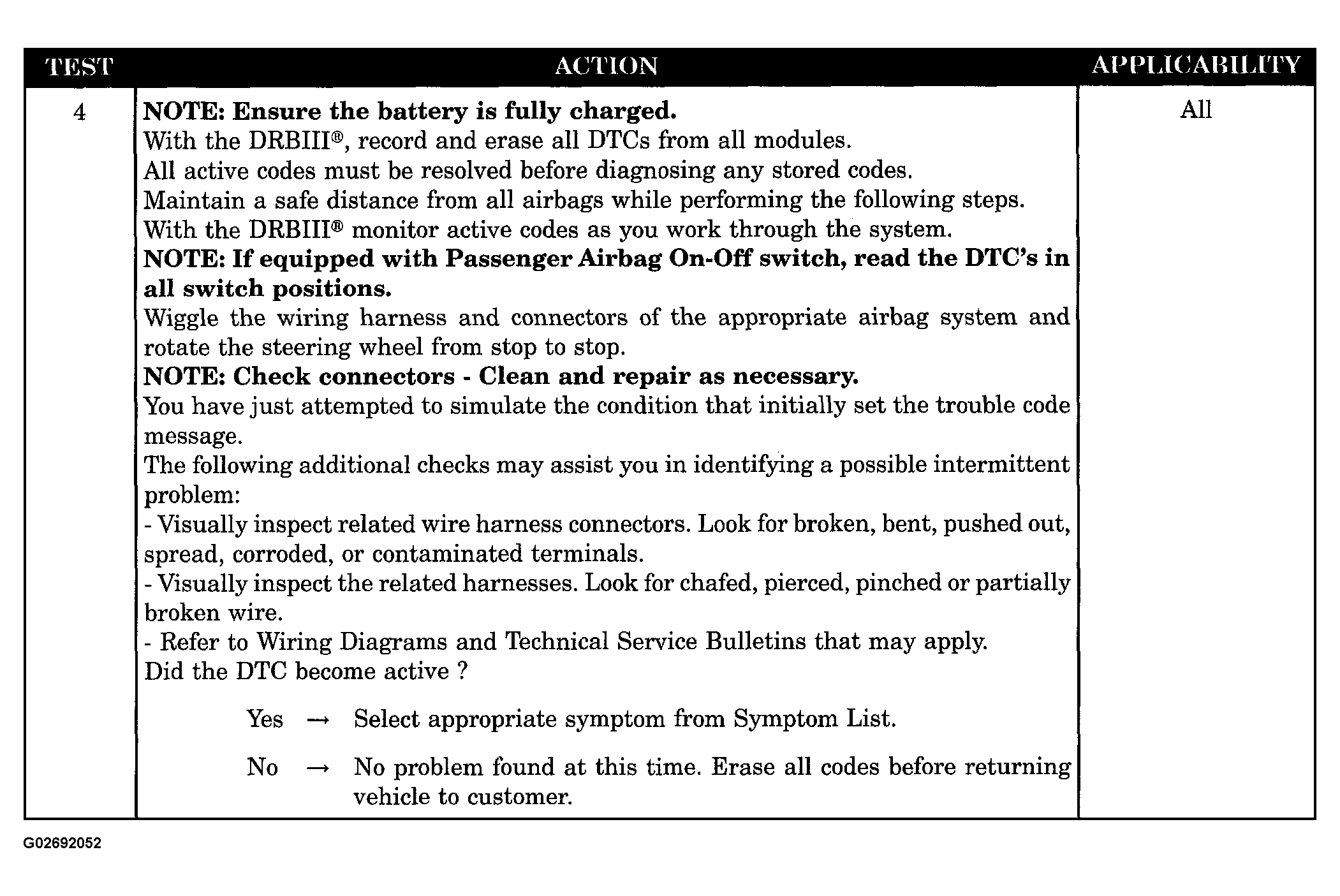

Fig 3: Testing Seat Squib Short To Ground (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
