Symptom: SEAT SQUIB CIRCUIT SHORT: Testing

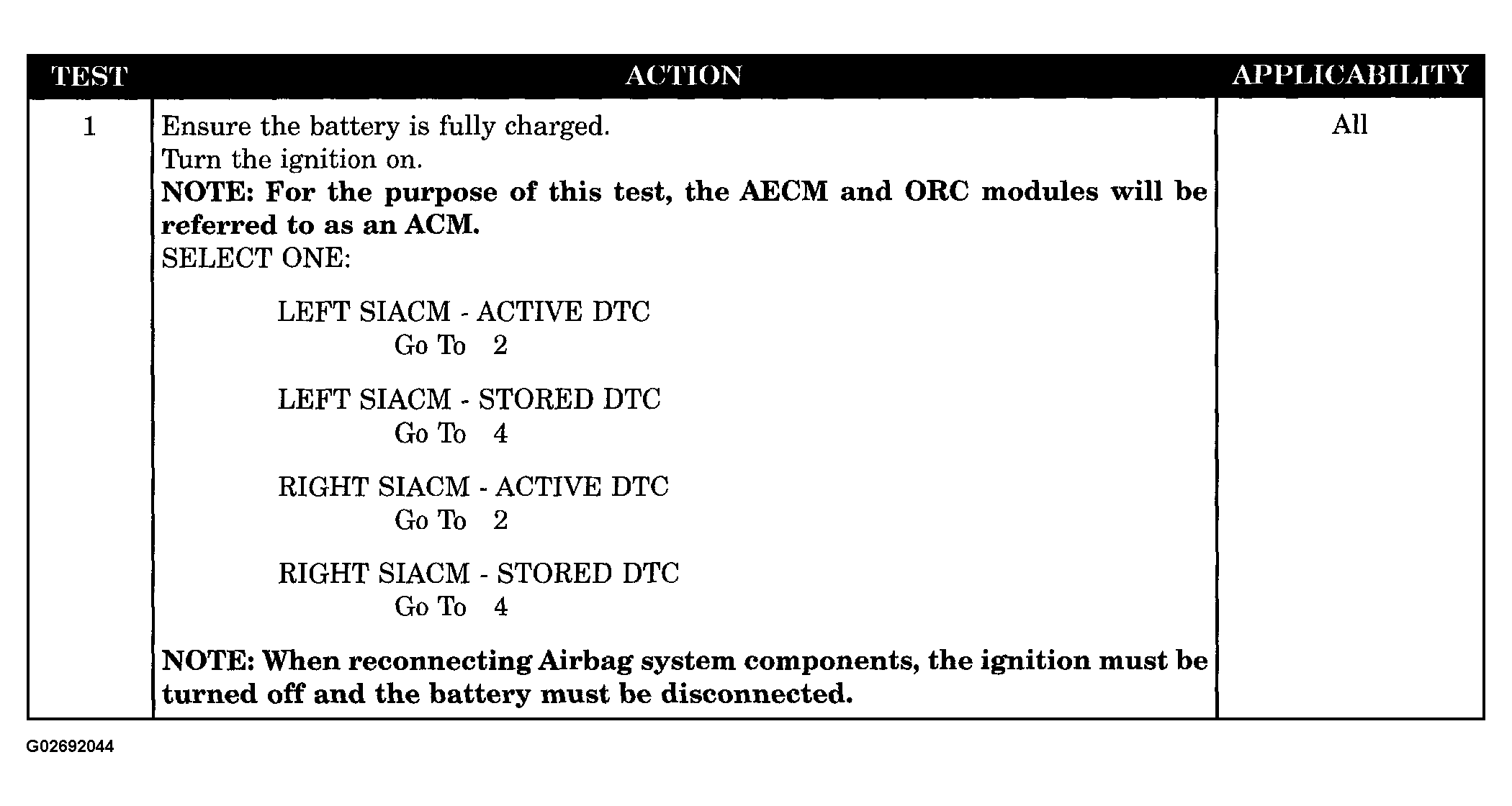

Fig 1: Testing Seat Squib Circuit Short (1 Of 3)
G02692044Courtesy of DAIMLERCHRYSLER CORP.

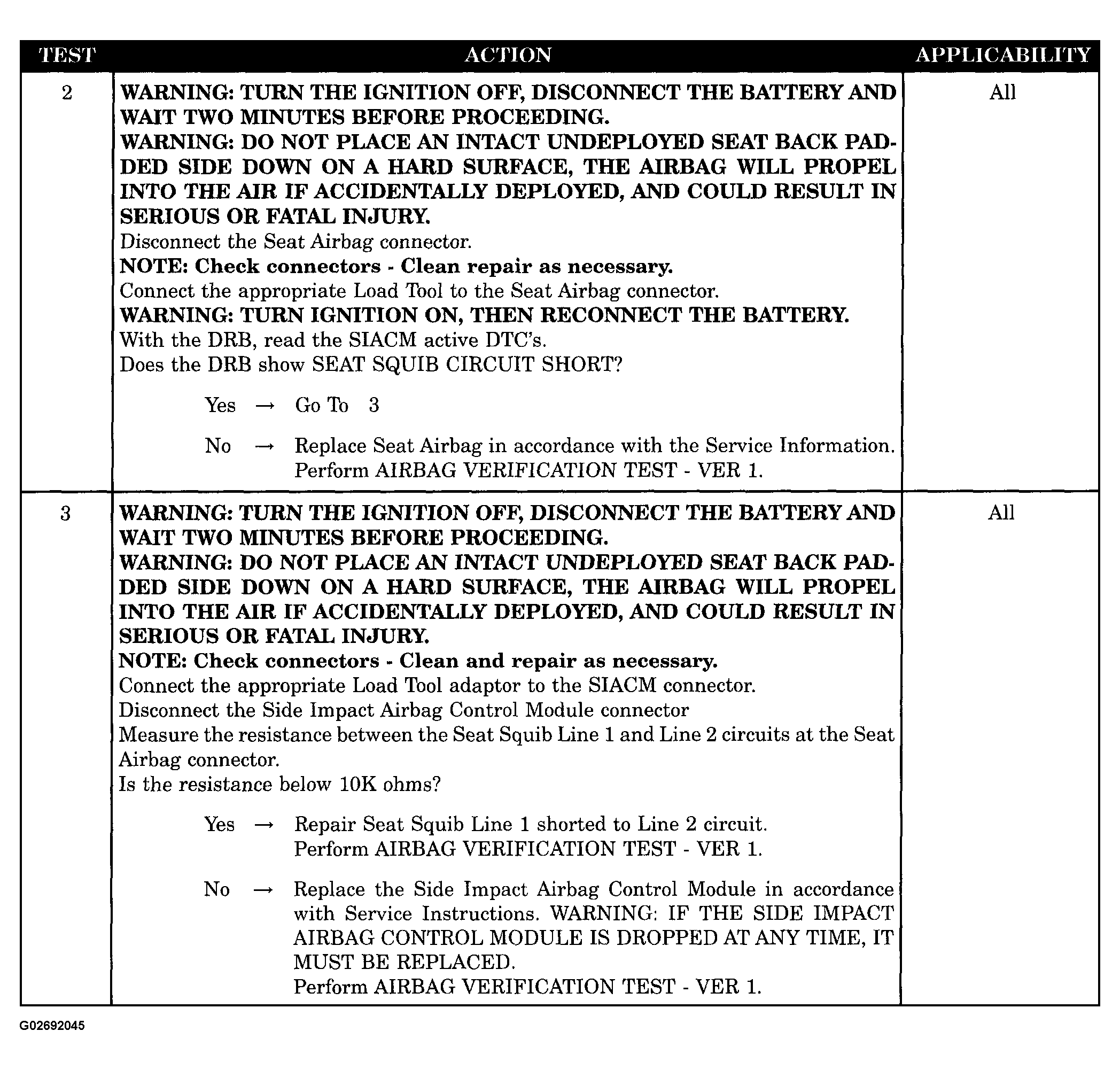

Fig 2: Testing Seat Squib Circuit Short (2 Of 3)
G02692045Courtesy of DAIMLERCHRYSLER CORP.

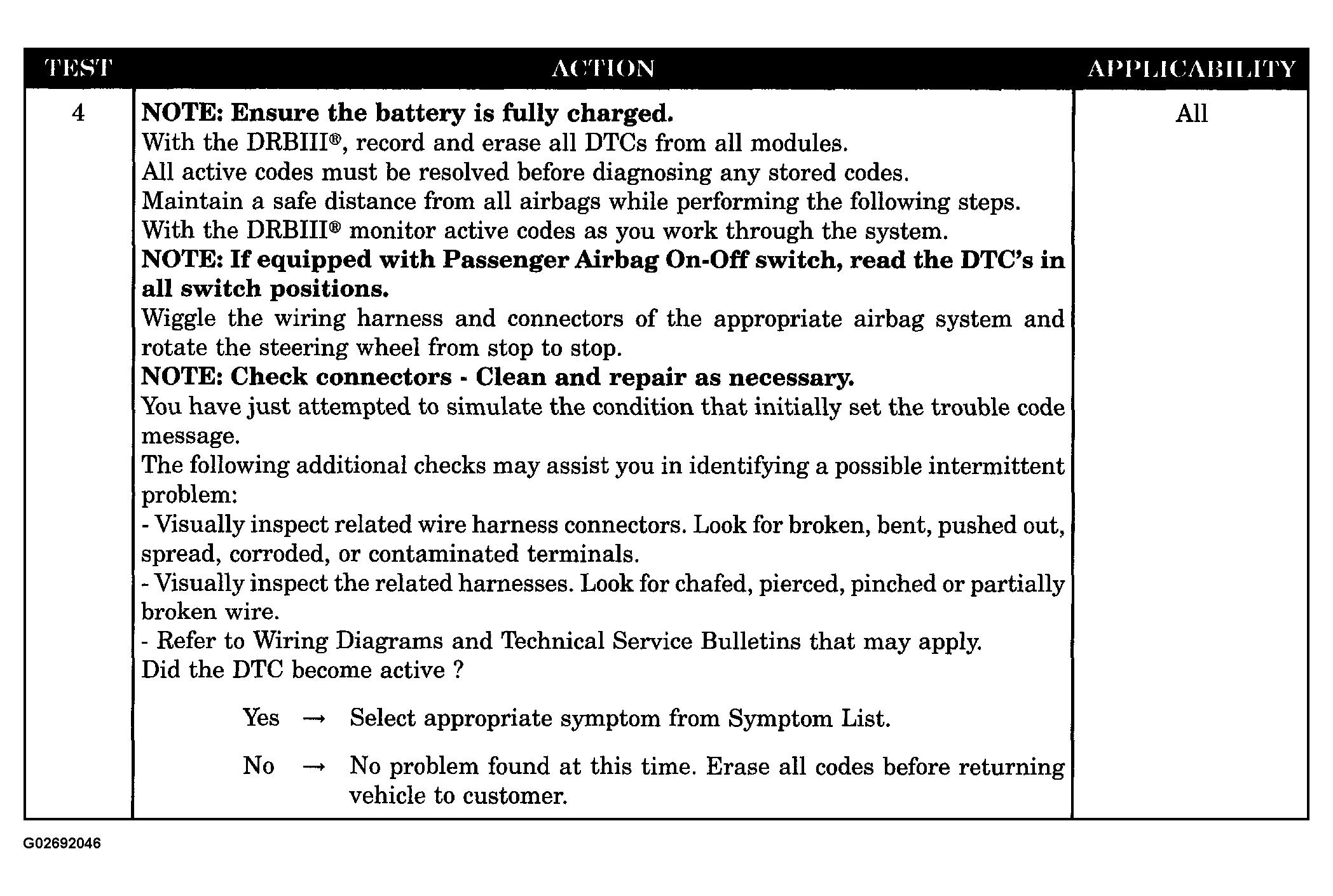

Fig 3: Testing Seat Squib Circuit Short (3 Of 3)
G02692046Courtesy of DAIMLERCHRYSLER CORP.
